SPRINTER 180T TIG WELDER

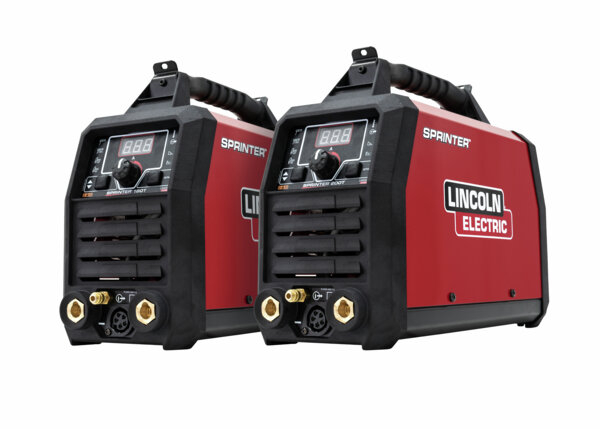

SPRINTER 180T AND 200T TIG WELDERS

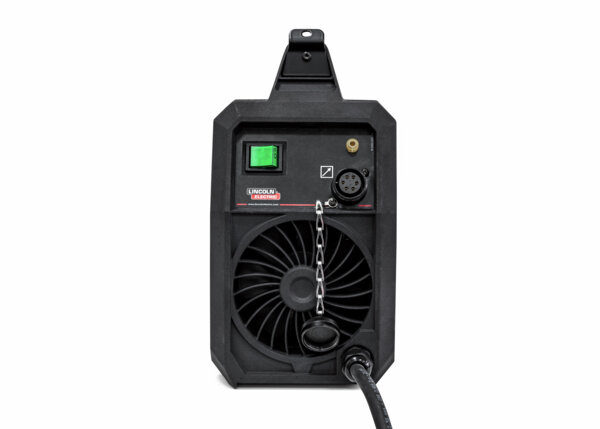

SPRINTER T BACK
The image shown is for representation purposes only and may not reflect the actual product.

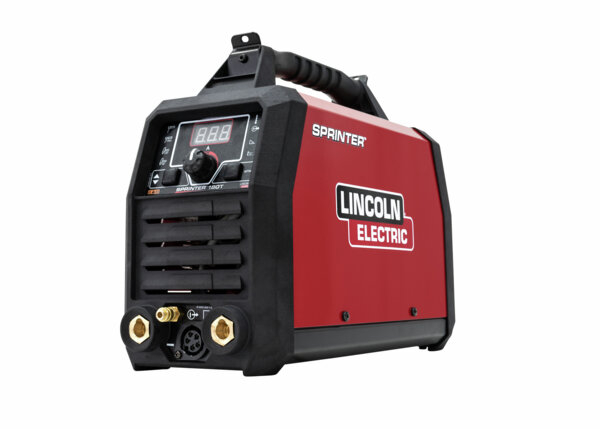

SPRINTER® 180T TIG welder

K14439-1

Portable inverter for TIG welding - 120/230V/1Ph - Output current: 180A@45%

Output

Output Output

Input

Input Input

DETAILS

The Sprinter T range gives you power in a small package. Weighing in under 9 kg, it’s lightweight and portable, and the 200-amp output enables you to weld electrodes up to 4.0 mm, including 7018 and 6010. This machine combines superior stick capabilities with high-frequency TIG, pulsed TIG mode and dual input voltage (120V/230V). A simple display allows you to dial the weld settings so you can get started quickly and easily on any job anywhere – maintenance work, light-fabrication, light structural and everything in between. The Sprinter T is a TIG and STICK welder and so much more

Features

  • Dual Input Voltage: 120V and 230V for different power supply.
  • Pulsed TIG Mode: Enhanced control for precise, thin welds
  • High Frequency Start: Precise arc strikes for TIG welding
  • Hot Start: Boosts initial welding current for quick arc ignition.
  • Arc Force: Increases penetration and prevents electrode sticking.
  • Multi-Process Capable: Welds DC stick, DC Lift TIG, and DC TIG HF.
  • Lightweight Portability: Under 9 kg, easy to carry with handle or strap.

Service Information

What's Included

  • Shoulder strap
  • Instruction Manual on USB
  • Quick Start papers

You May Also Need

Specifications

Weights & Dimensions

Dimensions (H x W x D) 162 mm x 305 mm x 438 mm
Net Weight 9 kg

Technical Specifications

Machines Processes TIG (GTAW)
Open Circuit Voltage 65V
Input Voltage 120/230V +/-15% / 1Ph
Input Current 16A
Input Hertz 50/60 Hz
Input Phase 1 ph
Mode Icon CC
Output Range 10-180A
Polarity DC

Warranty

Warranty 3 years
