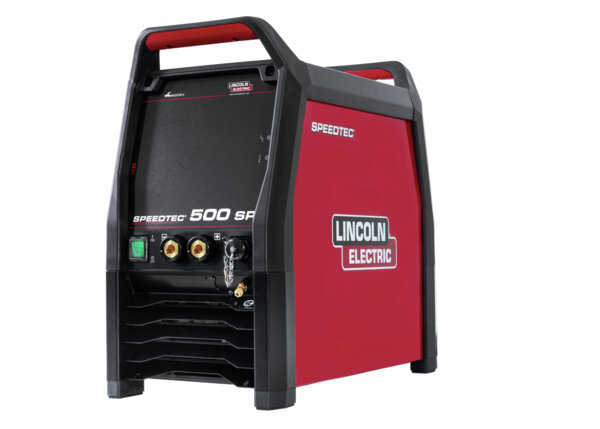

SPEEDTEC® 500SP
K14259-1
Multiprocess power source - 400V/3Ph - Output current: 500A @60%.
Model
Select Model
-
SPEEDTEC® 500SP
Multiprocess power source - 400V/3Ph - Output current: 500A @60%.
K14259-1
-
SPEEDTEC® 500SP (VRD)
Multiprocess power source - 400V/3Ph - Output current: 500A @60%.
K14259-2
-
SPEEDTEC 500SP LF52D 5M A - READY-PACK
READY-PACK which contains Speedtec 500SP power source, standard LF52D feeder, 5m air-cooled connection cable, 4-wheeled cart, LINCGUN PROMIG 400 4m, ground cable with clamp, gas hose, and gas regulator.
K14397-1
-
SPEEDTEC 500SP LF56D 5M A - READY-PACK
READY-PACK which contains Speedtec 500SP power source, advanced LF56D feeder, 5m air-cooled connection cable, 4-wheeled cart, LINCGUN PROMIG 400 4m, ground cable with clamp, gas hose, and gas regulator.
K14399-1
-
SPEEDTEC 500SP LF52D 5M W - READY-PACK
READY-PACK which contains Speedtec 500SP power source, standard LF52D feeder, 5m water-cooled connection cable, cooler Coolarc 60, Freezcool (9,6L), 4-wheeled cart, LINCGUN PROMIG 500W 4m, ground cable with clamp and gas hose.
K14405-1
-
SPEEDTEC 500SP LF56D 5M W - READY-PACK
READY-PACK which contains Speedtec 500SP power source, advanced LF56D feeder, 5m water-cooled connection cable, cooler Coolarc 60, Freezcool (9,6L), 4-wheeled cart, LINCGUN PROMIG 500W 4m, ground cable with clamp and gas hose.
K14407-1
-
SPEEDTEC 500SP LF52D 10M A - READY-PACK
READY-PACK which contains Speedtec 500SP power source, standard LF52D feeder, 10m air-cooled connection cable, 4-wheeled cart, LINCGUN PROMIG 400 4m, ground cable with clamp, gas hose, and gas regulator.
K14398-1
-
SPEEDTEC 500SP LF56D 10M W - READY-PACK
READY-PACK which contains Speedtec 500SP power source, advanced LF56D feeder, 10m water-cooled connection cable, cooler Coolarc 60, Freezcool (9,6L), 4-wheeled cart, LINCGUN PROMIG 500W 4m, ground cable with clamp and gas hose.
K14408-1
-
SPEEDTEC 500SP LF56D 10M A - READY-PACK
READY-PACK which contains Speedtec 500SP power source, advanced LF56D feeder, 10m air-cooled connection cable, 4-wheeled cart, LINCGUN PROMIG 400 4m, ground cable with clamp, gas hose, and gas regulator.
K14400-1
-
SPEEDTEC 500SP LF52D 10M W - READY-PACK
READY-PACK which contains Speedtec 500SP power source, standard LF52D feeder, 10m water-cooled connection cable, cooler Coolarc 60, Freezcool (9,6L), 4-wheeled cart, LINCGUN PROMIG 500W 4m, ground cable with clamp and gas hose.
K14406-1
-
SPEEDTEC 500SP LF56D 5M W - ONE-PACK
One-Pack which contains Speedtec 500SP power source, standard LF56D feeder, 5m water-cooled connection cable, Coolarc 60, 4-wheeled cart
K14259-1-5
-
SPEEDTEC 500SP LF56D 10M W - ONE-PACK
One-Pack which contains Speedtec 500SP power source, standard LF56D feeder, 10m water-cooled connection cable, Coolarc 60, 4-wheeled cart
K14259-1-10
-
K14259-3
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS

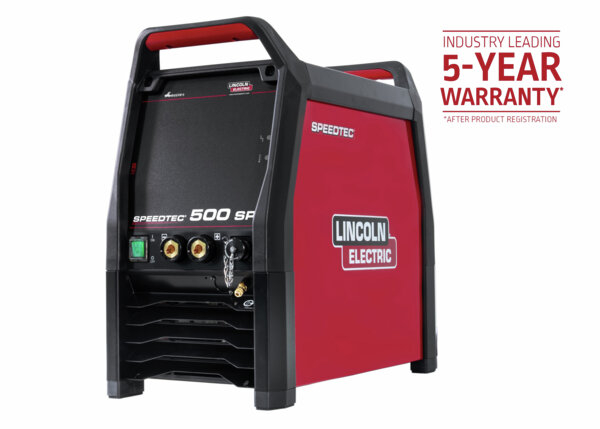

This product can be registered for extended warranty
Ultimate performance

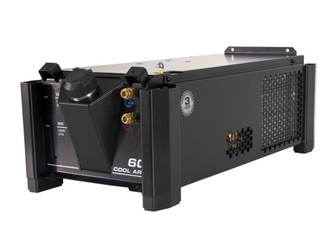

New SPEEDTEC® 400SP and 500SP are the third generation multi-process power sources offering superior quality welding and high efficiency processes which increase the productivity and are the next step into the future of professional welding. New SPEEDTEC® range designed with the latest energy-saving inverter technology and specially rugged construction are ready to work in even the most demanding environmental conditions. Modular system: power sources available in two versions 420A@100% and 500A@60% with a choice of separate wire feeders, standard LF52D for basic use or the advanced LF56D for more demanding applications, new cooler COOLARC® 60 with higher cooling efficiency, new 4-weels cart with very solid metal made construction plus wide range of connection cable and accessories fits perfectly with the needs of the most demanding welding applications in various segments. Behind the outstanding welding performance, SPEEDTEC®’s platform based on digital communication system and with build-in communications tools, such as Ethernet or USB, allowing an accurate traceability and monitoring of your welding activities
Features
- High duty cycle, multi-process power source featuring efficient processes (Speed Short Arc™, Soft Silent Pulse™, High Penetration Speed™)
- MECHAPULSE™ delivers superior quality welds with a rippled seam appearance
- Modular design allows for customizable configurations
- Ergonomic design enhances ease of use for welders
- Double-sided, fully potted PCB offers excellent resistance to dust, humidity, shocks, and vibrations
Service Information
What's Included
- Input cable (5m)
- Work clamp and cable assembly (3m)
- Gas hose (2m)
- Chain
- USB with Operator's Manual
- Spare fuses (2x2A / 1x6.3A / 1x12.5A)
You May Also Need
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 550 mm x 295 mm x 625 mm |
| Net Weight | 54.5 kg |
Technical Specifications
| Machines Processes | Pulsed MIG (GMAW-P) |
| Open Circuit Voltage | 65V |
| Input Voltage | 400V |
| Input Current | 32A |
| Input Hertz | 50/60 Hz |
| Input Phase | 3 ph |
| Input Power | 400V/3/50-60 Hz (±15%) |
| Mode Icon | CC/CV |
| Output Range | 20-500A |
| Polarity | DC |
Features
| Ingress Protection Rating | IP23 |
Application
| Typical Application | Construction Construction & Field Erection General Fabrication Heavy Equipment Heavy Fabrication Maintenance & Repair Power Generation Repair Welding Shipbuilding Structural Fabrication Structural Welding |
Warranty
| Warranty | 3-year warranty + additional 2-year upon product registration |
