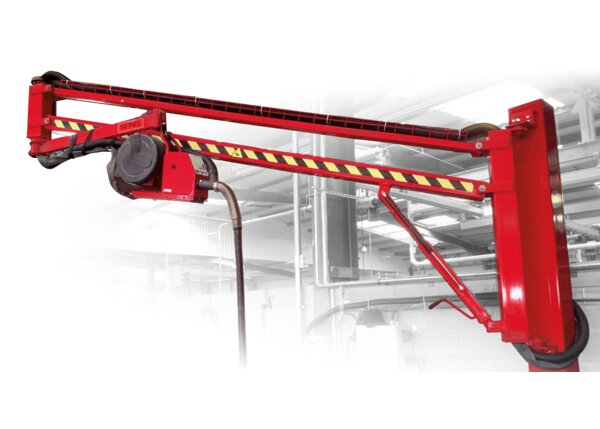

Ergonomic booms ERGOMIG 2D with two directional axes are used to equip workstations and make an invaluable contribution to operator well-being. Based on an original design, the boom uses a system that allows the height of the reel or tool to be adjusted, making wire feeder reel changes easy and safe.
Features
- Load capacity at the end of the boom: 70 kg
- Can be mounted on the building’s metal structural frame or installed on a stand
- Features double articulation at two-thirds of the bearing arm: 180° rotation at the wall mounting point and 350° rotation at the tool support
- Feeder bundle and extraction hose fully integrated into the boom body for a clean, ergonomic design
- Optional accessories available: connectors and compressed air kit (connection at the boom tip)
