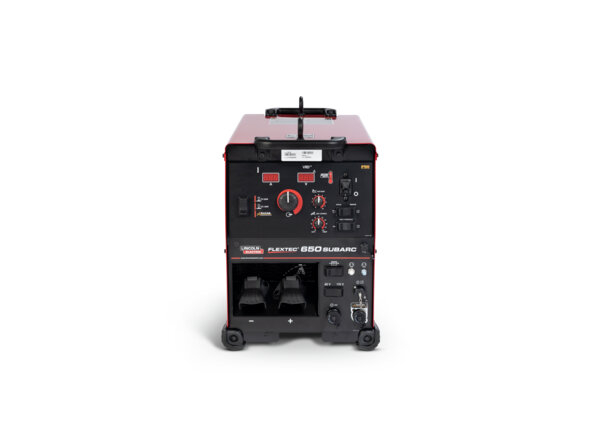

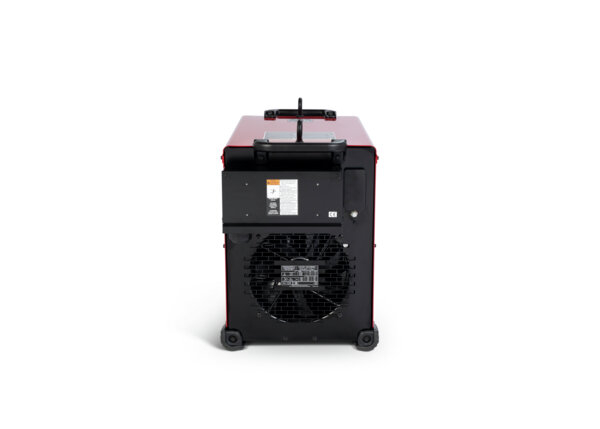

FLEXTEC® 650 CE
K5441-1
650A submerged arc inverter power source for heavy duty applications
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
This submerged arc welder delivers up to 815 amps of CC and CV welding power for a variety of applications, including construction, shipbuilding and heavy fabrication. CE compliant.
Features
- Use with a wide range of available 3 phase input power
- Easy one-knob process selection
- Components designed to run cool for long life in high temperature environments
- Up to 815A of output
- Support for 115V and 42V analog wire feeders and controllers
- Support for digital ArcLink controllers
- Supports LT-7 tractor and Cruiser Tractor
Service Information
What's Included
- Flextec 650 Subarc CE welding power supply
You May Also Need
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 554 mm x 410 mm x 745 mm (21.8 in x 16.1 in x 29.3 in) |
| Net Weight | 75 kg (165 lbs) |
Technical Specifications
| Machines Processes | Submerged Arc (SAW) |
| Input Voltage | 380/460/575/3/50/60 |
| Input Current | 750A/44V/60% = 61/50/40, 650A/44V/100%=57/47/38 |
| Input Hertz | 50/60 |
| Input Phase | 3 |
| Input Power | 380/460/575/3/50/60 |
| Mode Icon | CC/CV |
| Output Range | 10-815A |
| Polarity | DC |
Features
| Ingress Protection Rating | IP23 |
| Machines Communication Technology | analog digital ArcLink |
| Wire Feeder Supply Voltage | 115VAC 42VAC 40VDC |
| Amphenol Pins (type of connector) | 5 12 14 |
| Work Lead Connector Type | Lug |
Application
| Typical Application | Heavy Fabrication Shipbuilding Structural Fabrication |
Warranty
| Warranty | 5 Years |
