DETAILS

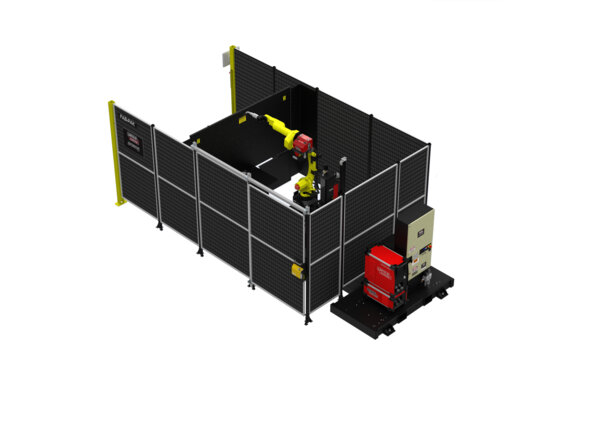

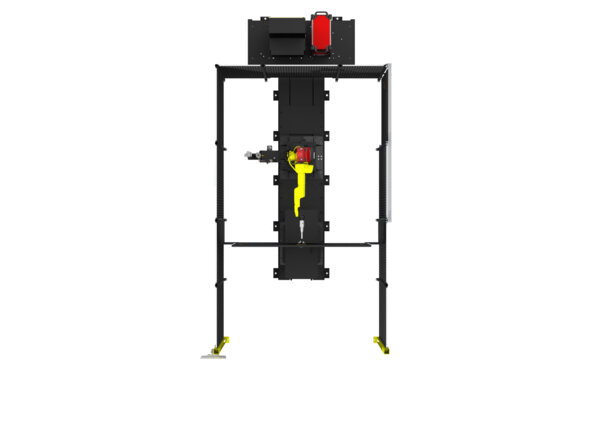

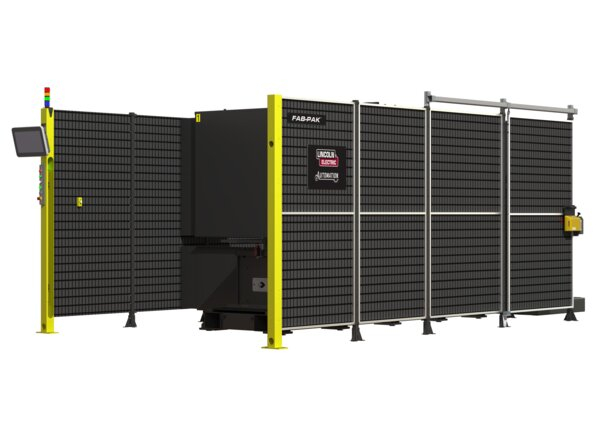

Designed for the high-mix, low volume manufacturing industry, the Fab-Pak® family of robotic welding systems provides businesses with a wide range of manufacturing capabilities and system flexibility. The Fab-Pak XFT standard robotic welding system provides increased throughput efficiency, accuracy, and repeatability.
Features
- Servo-driven turntable positioner
- 180° rotating work area
- Increases throughput efficiency, accuracy, and repeatability
- ANSI/RIA safety compliant
Service Information
What's Included
- Power Wave® R450 power source
- AutoDrive® AD2504 wire feeder
- Magnum® PRO robotic torch
- Power Ream® II torch maintenance unit
- FANUC welding robot
- Robot basic software package
- Wire mesh panels with weld curtains
- Push button control
Specifications
Global Attributes
| System Type | Indexing Fixed Table |
| Number of Work Zones | 2 |
| Industry/Application | High-mix, low-volume manufacturing |
| Overall Footprint Width in (mm) | 170 (4321), 229 (5815), 258 (6560) |
| Overall Footprint Depth in (mm) | 77 (1957), 117 (2975), 141 (3575) |
| Sweep in (mm) | N/A |
| Span in (mm) | N/A |
| Turntable Diameter in (mm) | 67 (1700), 89 (2250), 118 (3000) |
| Payload Per Zone lb (kg) | 770 (350), 1100 (500), 2200 (1000) |
| Panel Type | Wire Mesh/Curtain |
| Crane Access | Yes |
| Roll Up Door | No |
| Pushbutton Control | Yes |
| HMI Control | Option |
| Power Distribution | Option |
| Robot Programming Training Included | Yes |
| ANSI/RIA Compliant | Yes |
| Sensor Protected Work Zones | Yes |
| Sensor Interlocked Access Points | Yes |
| Fanuc Compatability | Yes |
| ABB Compatability | Yes |

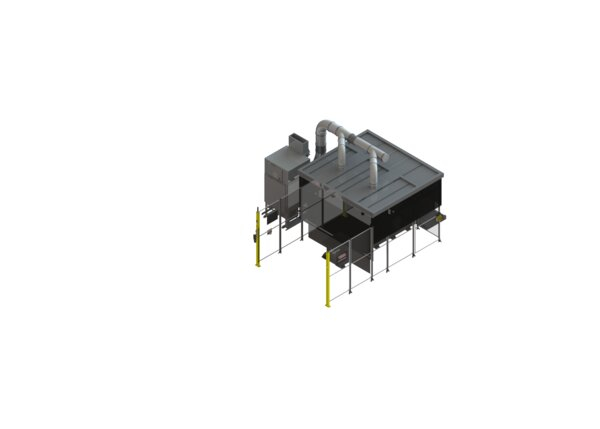

| Fume Extraction Equipment | Optional |
| Multi-Robot Configurations | Optional |
| Crown Mounted Robot | No |
| Robotic Torch Cleaning Station | Optional |
| Weld Gas Distribution Station | No |
| Weld Gas Flow Monitor | No |
| Pneumatic Distribution Station | No |
| Zero Friction Wire Delivery | No |
| Wire Detect Sensors | No |
| Customization Available | No |
Application
| Typical Application | Automotive General Fabrication |
Warranty
| Warranty | 1 Year |
