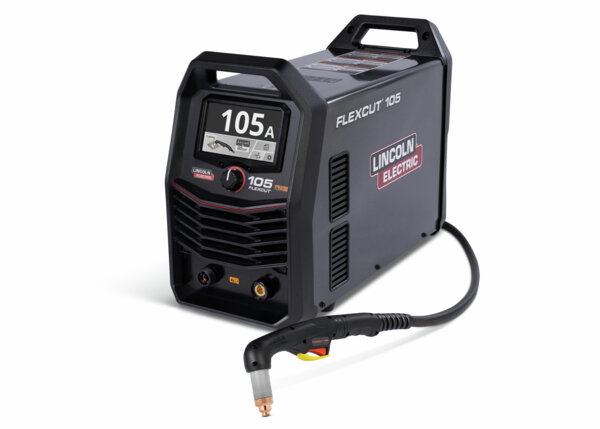

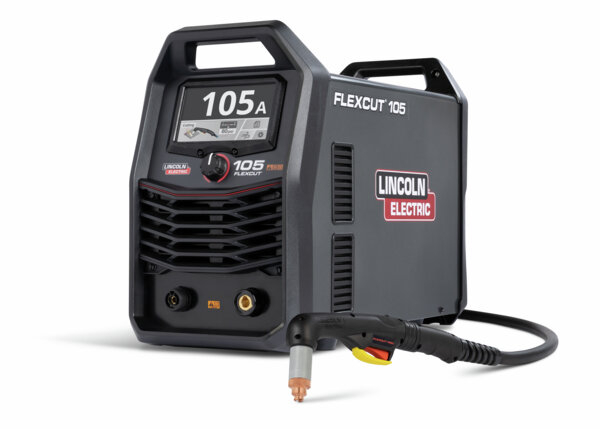

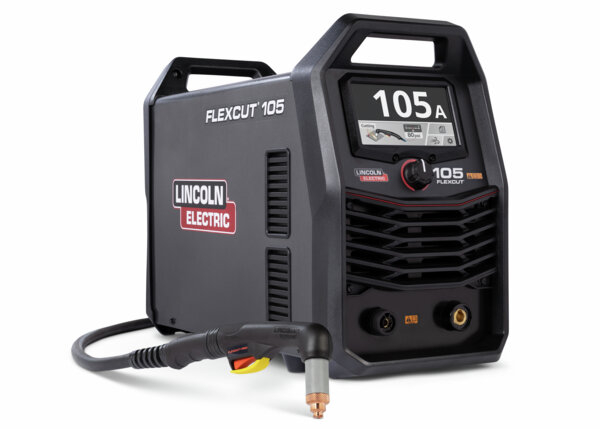

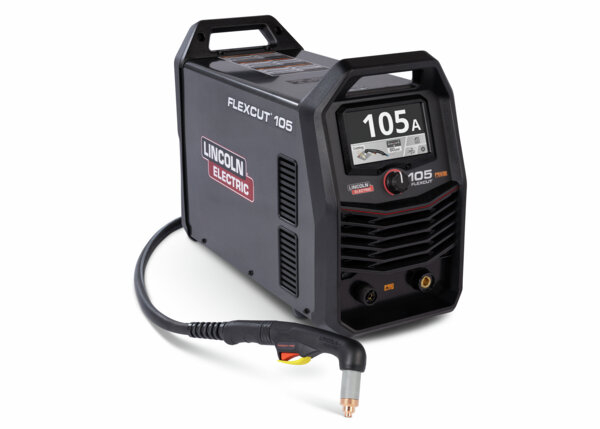

FlexCut® 105 Plasma Cutter Handheld Ready-Pak®
K5827-H
The FlexCut 105 plasma cutter comes with everything needed to handheld plasma cut mild steel, aluminum, or stainless steel
Model
Select Model
-
FlexCut 105 Plasma Cutter - Handheld Ready-Pak
The FlexCut 105 plasma cutter comes with everything needed to handheld plasma cut mild steel, aluminum, or stainless steel
K5827-H
-
FlexCut 105 Plasma Cutter - Mechanized Ready-Pak
The FlexCut 105 plasma cutter comes with everything needed for mechanized plasma cutting mild steel, aluminum, or stainless steel
K5827-M
-
FlexCut 105 Plasma Cutter - Power Source Only
The FlexCut 105 plasma cutter can cut mild steel, aluminum, or stainless steel
K5827-PS
MSRP
CAD $9,238.59/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
The FlexCut 105 delivers reliable, high-duty-cycle performance built for demanding industrial environments. Advanced CNC integration includes built-in ports, automatic table detection, and machine torch compatibility for seamless automated cutting. With an industrial IP23-rated enclosure, reinforced components, and shock-resistant housing, it stands up to dust, water spray, and the rigors of daily use. Compatible with our FlexConnect™ Torch System, giving you the flexibility to switch between torch heads or cables in seconds.
For more information, please visit the FlexCut Plasma Cutter Resource Center.
Features
- 105 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
- High Duty Cycle: Built for demanding applications without overheating or slowing down.
- LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
- Plug-and-Play CNC Integration: Seamless integration with CNC tables with automatic table detection for fast, precise setup.
- Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machine for maximum versatility.
- Rugged by Design: Heavy-duty construction built for real-world conditions— hard to damage, and ready to withstand impact, dust, and daily wear.
- Ideal for Drag Cutting, Grid Cutting, Mechanized, Extended, Precision Cutting, Gouging & Marking
- 5 year warranty
Disclaimers
Service Information

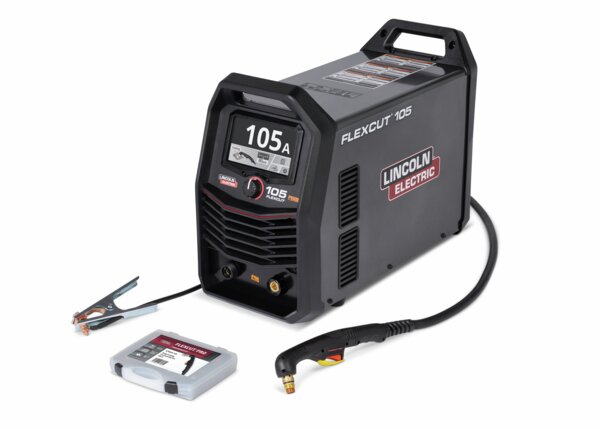

What's Included
- (1) FlexCut 105 Plasma Cutter
- (1) FlexCut PRO FlexConnect Handheld Torch
- (1) Ground Cable & Clamp
- (1) Input Power Cord
- (7) Nozzles
- (7) Electrodes
- (1) Swirl Ring
- (1) Retaining Ring
- (3) Shields
Documentation
Specifications
Machine Inputs & Outputs
| Phase 3: Input Voltage #1 (Voltage/Phase/Hertz) | 400-480/3/60 |
| Phase 3: Rated Output #1A (Current/Voltage/Duty Cycle) | 105A/122V/80% |
| Phase 3: Rated Output #1B (Current/Voltage/Duty Cycle) | 94A/117.6V/100% |
| Phase 3: Input Current at Max Rated Ouput #1 (Current) | 19A |
| Phase 3: Input Voltage #2 (Voltage/Phase/Hertz) | 600A/3/60 |
| Phase 3: Rated Output #2A (Current/Voltage/Duty Cycle) | 105A/122V/80% |
| Phase 3: Rated Output #2B (Current/Voltage/Duty Cycle) | 94A/117.6V/100% |
| Phase 3: Input Current at MAX Rated Output #2 (Current) | 17.8A |
Product Weights & Dimensions
| Dimensions (H x W x D) | 18.6 in x 11.5 in x 27.2 in (476 mm x 293 mm x 691 mm) |
| Net Weight | 90.6 lbs (41.2 kg) |
General Specification
| Machines Processes | Plasma Gouging Plasma Cutting |
| Open Circuit Voltage | 330 VDC |
Machine Technologies & Connections
| Ingress Protection Rating | IP23 |
Plasma Machines
| Plasma Machines Process | Cutting Gouging Marking |
| Torch Included | Yes |
| Torch Cooling | Air |
| Gas Supply | Air or Nitrogen |
| Gas Pressure Required | 90-130 psi |
| Recommended Cutting Capacity (Mild Steel) (In/ft) | 1 1/4 in @ 15 ipm |
| Maximum Cutting Thickness (Mild Steel) (ln/Ft) | 1 1/2 in @ 10 ipm |
| Maximum Severance (Mild Steel) (In/Ft) | 2 in @ 5 ipm |
Application
| Typical Application | Construction Automotive General Fabrication Marine Fabrication & Repair Structural Fabrication |
Warranty
| Warranty | 5 Years |
