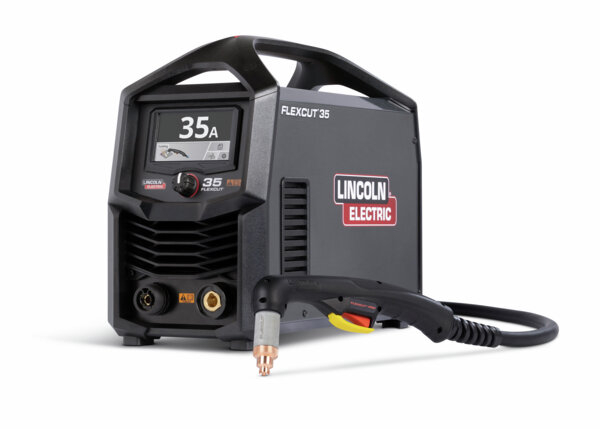

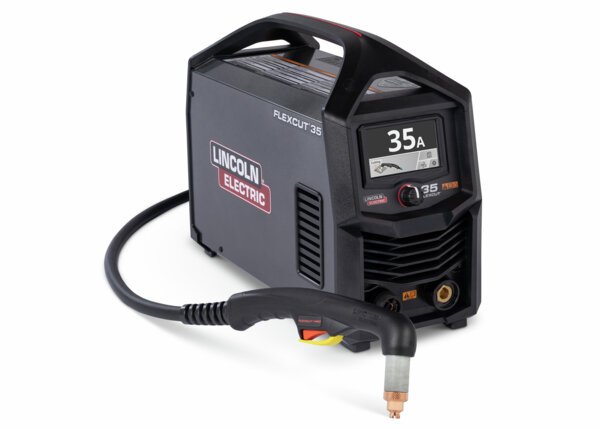

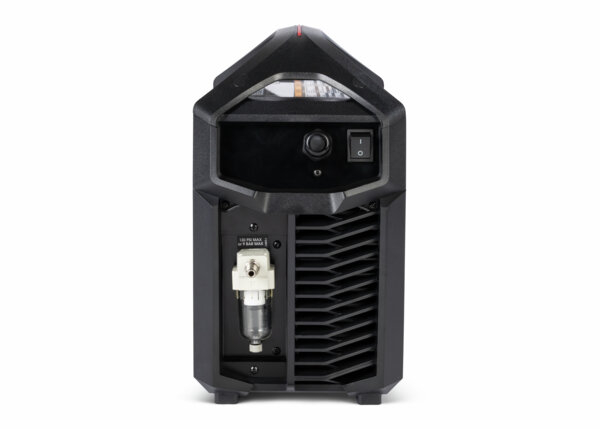

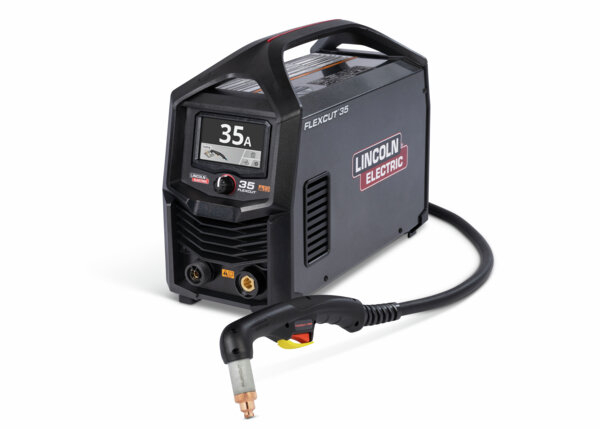

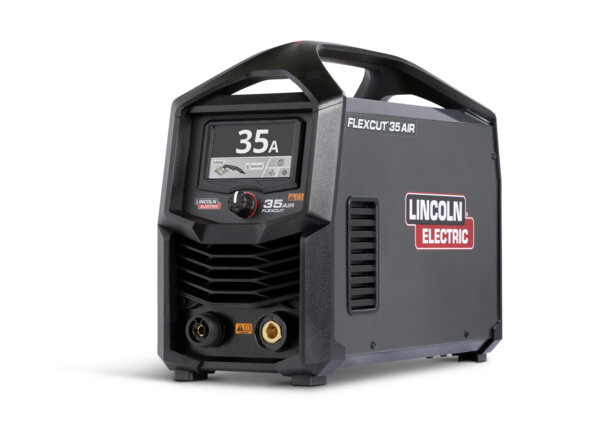

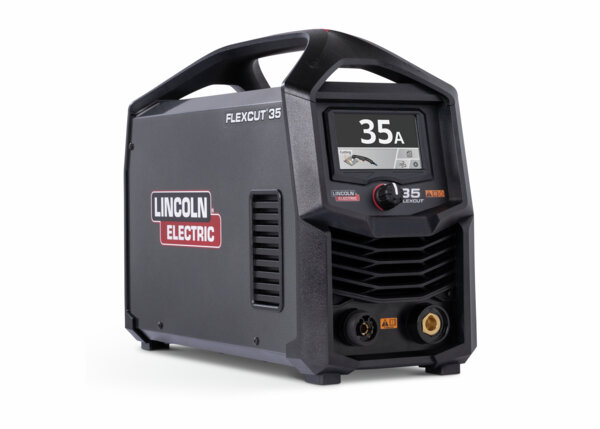

The image shown is for representation purposes only and may not reflect the actual product.
DETAILS

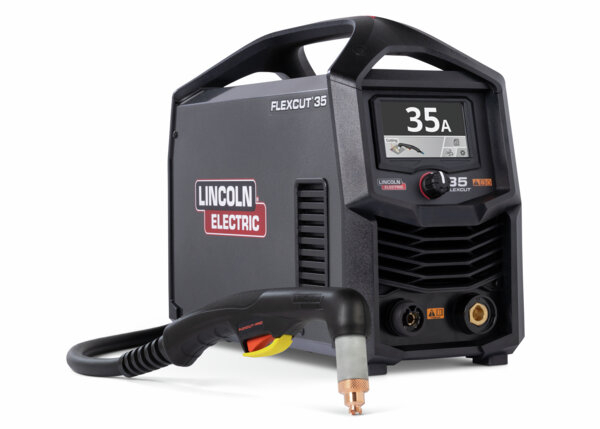

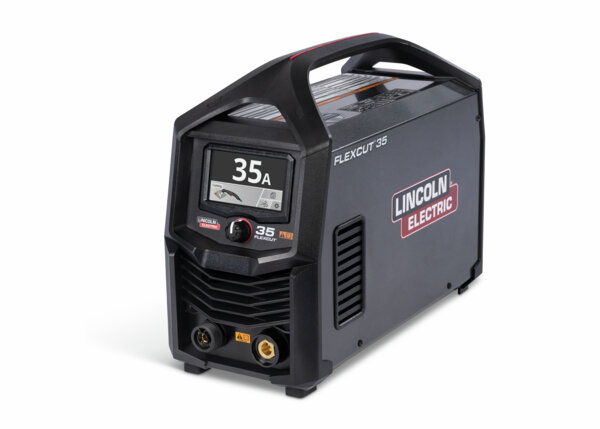

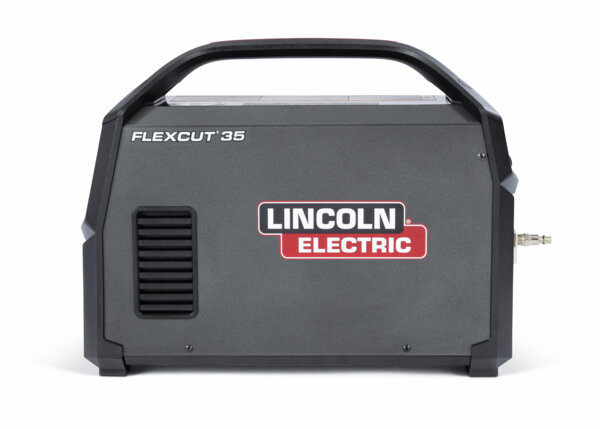

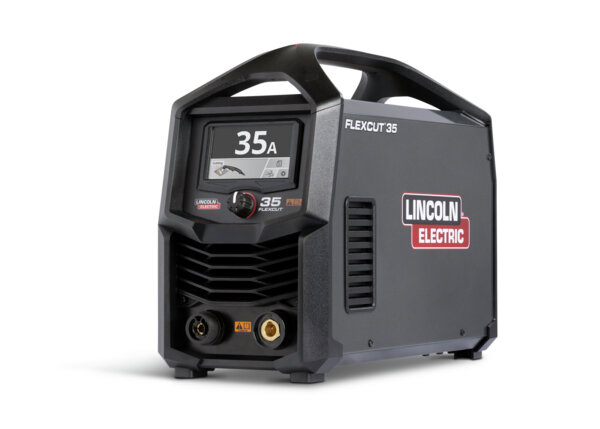

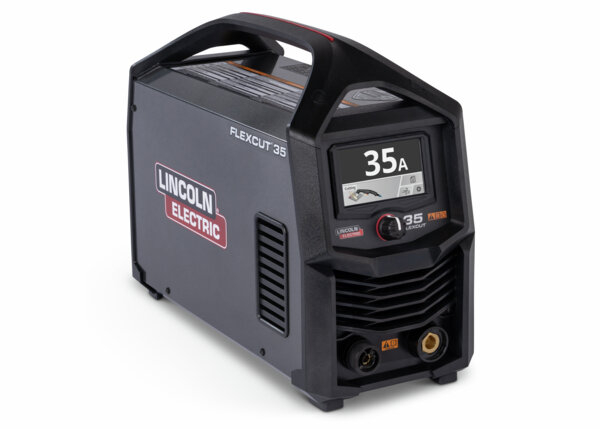

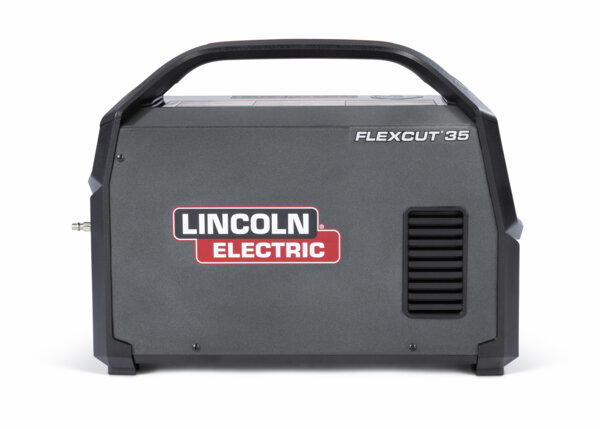

The FlexCut 35 delivers reliable cutting performance for small projects and light fabrication work. With steady power and consistent output, it keeps you moving without interruptions. Built for versatility and ease of use, it offers precision and durability in a compact, portable package. Perfect for everyday cutting of mild steel, aluminum, stainless steel, and grating, it’s designed to run efficiently while keeping setup simple. Compatible with our FlexConnect™ Torch System giving you the flexibility to switch between torch heads or cables in seconds.
For more information, please visit the FlexCut Plasma Cutter Resource Center.
Features
- 35 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
- High Duty Cycle: Built for demanding applications without overheating or slowing down.

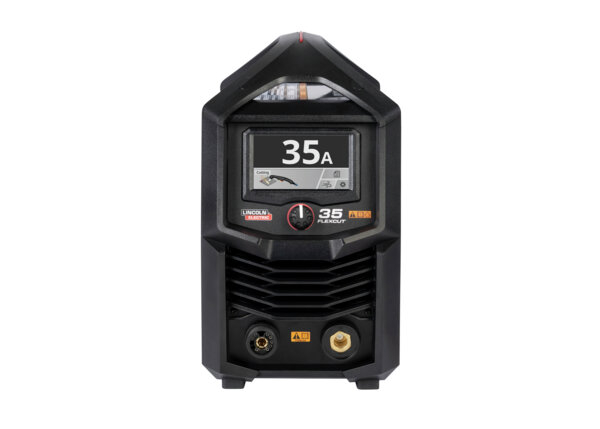

- LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
- Dual Voltage Flexibility: Plug into 120V or 230V power sources.
- Multi-Process Capability: Drag cutting and grid cutting with one machine for convenient versatility.
- Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage.
- 5 year warranty
Disclaimers
Service Information

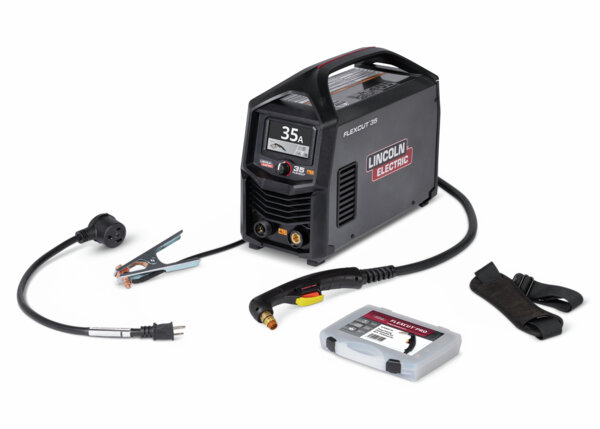

What's Included
- (1) FlexCut 35 Plasma Cutter
- (1) FlexCut PRO Torch
- (1) Ground Cable & Clamp
- (1) Shoulder Strap
- (1) Input Power Cord
- (1) 120V Adapter
- (2) Nozzles
- (2) Electrodes
- (1) Swirl Ring
- (1) Retaining Ring
- (1) Shield
Documentation
Specifications
Machine Inputs & Outputs
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | 27A/90.8V/20% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | 16A/86.4V/60% |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | 15A/86V/100% |
| Phase 1: Input Current at Max Rated Ouput #1 (Current) | 26A |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | 35A/94A/35% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | 27A/90.8V/60% |
| Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) | 21A/88.4V/100% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 16.5A |
Product Weights & Dimensions
| Dimensions (H x W x D) | 14.1 in x 8.1 in x 18.4 in (359 mm x 205 mm x 468 mm) |
| Net Weight | 26.6 lbs (12.1 kg) |
General Specification
| Machines Processes | Plasma Cutting |
| Open Circuit Voltage | 320 |
Machine Technologies & Connections
| Ingress Protection Rating | IP23 |
Plasma Machines
| Plasma Machines Process | Cutting |
| Torch Included | Yes |
| Torch Cooling | Air |
| Gas Supply | Air or Nitrogen |
| Gas Pressure Required | 90-130 psi |
| Recommended Cutting Capacity (Mild Steel) (In/ft) | 1/4 in @ 20 ipm |
| Maximum Cutting Thickness (Mild Steel) (ln/Ft) | 3/8 in @ 10 ipm |
| Maximum Severance (Mild Steel) (In/Ft) | 1/2 in @ 5 ipm |
Application
| Typical Application | Construction Automotive General Fabrication Marine Fabrication & Repair Structural Fabrication |
Warranty
| Warranty | 5 Years |
