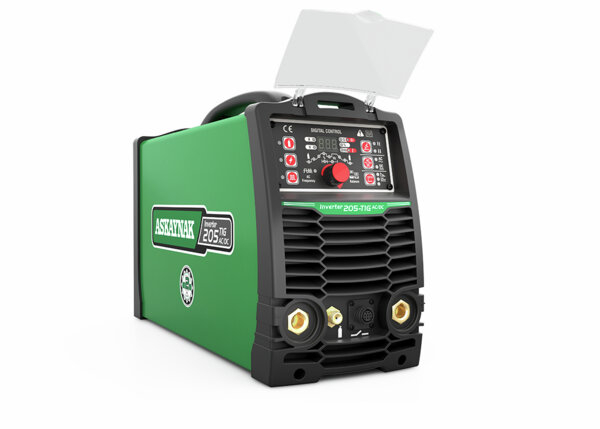

ASKAYNAK INVERTER 205-TIG AC/DC
81AS205TP-ACDC-4M
With a DC current for excellent TIG welding on carbon steels and stainless steels and an AC current for outstanding TIG welding on aluminum materials, the Askaynak Inverter 205-TIG AC/DC has it all.
DETAILS
Meanwhile, for continuous stick electrode welding, 2.5, 3.25 and 4.0 mm diameter rutile, basic and stainless steel electrodes ensure you can make perfect weld seams on unalloyed, low-alloyed and stainless steel materials.
Features
- AC Balance Setting Feature
- AC Frequency Feature
- HF TIG / LIFT TIG Feature
- Pulse Feature
Service Information
What's Included
- Inverter 205 TIG AC/DC Power Source
- 4m air cooled TIG torch
- 3m work cable and clamp
- 3m gas hose.
Specifications
Inputs & Outputs
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | 200 A ; 18.0 V (22 %) (AC-TIG) 200 A ; 18.0 V (22 %) (DC-TIG) |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | 140 A ; 15.6 V (60 %) (AC-TIG) 130 A ; 15.2 V (60 %) (DC-TIG) |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | 110 A ; 14.4 V (100 %) (AC-TIG) 100 A ; 14.0 V (100 %) (DC-TIG) |
Weights & Dimensions
| Dimensions (H x W x D) | 250 mm x 138 mm x 370 mm |
| Net Weight | 13.6 kg |
Technical Specifications
| Machines Processes | Stick (SMAW) TIG (GTAW) |
| Input Voltage | 220 V |
| Input Hertz | 50/60 |
| Input Phase | 1 |
| Output Range | 10-200 |
Warranty
| Warranty | 3 years |
