Cellulosic electrodes
Cellulosic electrodes
metal can

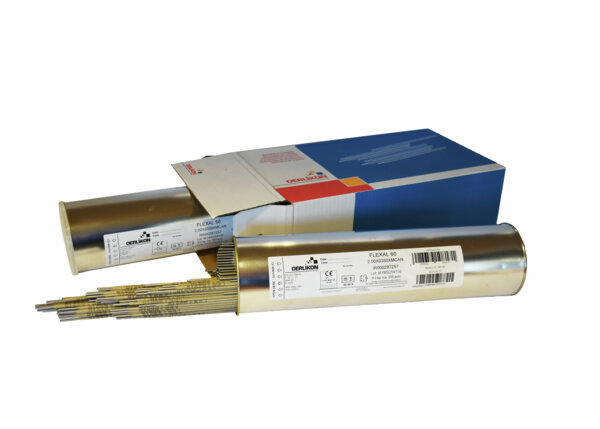

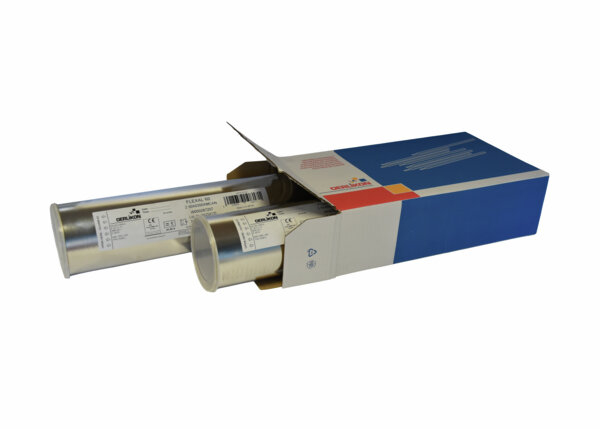

The image shown is for representation purposes only and may not reflect the actual product.

Diameters / Packaging

Diameters
 MCAN 18 KG (2 x 9 KG, approx. 1110 pcs)
 MCAN 19 KG (2 x 9.5 KG, approx. 474 pcs)
 MCAN 19 KG (2 x 9.5 KG, approx. 710 pcs)
2.5x350 mm W000287257
3.2x350 mm W000287258
4.0x350 mm W000287259

FLEXAL 60

Stick (SMAW)

CLASSIFICATIONS:
AWS A5.1 : E6010
EN ISO 2560-A : E 38 3 C 21

Mild steel cellulosic electrode

Diameter

Select Diameter

  • 2.5x350 mm
  • 3.2x350 mm
  • 4.0x350 mm

Package

Select Package

  • MCAN 18 KG (2 x 9 KG, approx. 1110 pcs)
  • MCAN 19 KG (2 x 9.5 KG, approx. 474 pcs)
  • MCAN 19 KG (2 x 9.5 KG, approx. 710 pcs)

DETAILS

FLEXAL 60 is a cellulosic coated MMA electrode for welding large-diameter pipe lines in the vertical-down position known as "stove -piping". Used for root and hot passes as well as filling and capping up to X52 grade pipe.

Features

  • Used for root and hot passes as well as filling and capping up to X52 grade pipe
  • Also used for root passes on higher-strength pipe steels, up to X80 grade pipe
  • Can be used in DC+ or DC- current.
  • Excellent weldability in all positions

Typical Applications

  • Pipeline

Welding Positions

  • All positions
