POWERTEC i380C WATER PACK
K14288-3
Inverter MIG/MAG and STICK compact welder - 400V/3Ph - Output current: 380A@40%
Model
Select Model
-
POWERTEC i380C ADVANCED
Inverter MIG/MAG and STICK compact welder - Three-phase 400V - Output current: 380A@40%
K14288-1
-
POWERTEC i380C AIR PACK
Inverter MIG/MAG and STICK compact welder - 400V/3Ph - Output current: 380A@40%
K14288-2
-

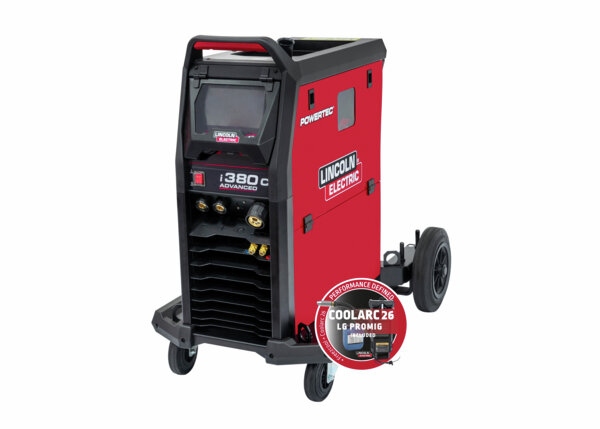

POWERTEC i380C WATER PACK
Inverter MIG/MAG and STICK compact welder - 400V/3Ph - Output current: 380A@40%
K14288-3
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
The POWERTEC® i COMPACTS RANGE is built on the latest Lincoln inverter platform, ensuring optimal MIG/MAG and MMA welding performance with excellent power and cost efficiency. The range consists of: 250A, 320A, 380A and 450A power sources with a choice of either the STANDARD panel (i250C & i320C) or the ADVANCED panel (i250C, i320C, i380C & i450C), that meet most customers' needs and covers a wide range of welding applications. The Plug & Play water cooler COOLARC® 26 is available for POWERTEC® i380C & i450C ADVANCED.
Features
- Exceptional arc performance with consistent ignition, stable arc, and quick parameter adjustments
- Versatile processes: Synergic and Manual MIG/MAG and Stick
- User-friendly interface: intuitive navigation, easy settings, and seamless process selection
- Optimized feedability: precise wire positioning, four driven rolls, inspection window
- Designed by welders, for welders: excellent handling, innovative communication, and ease of use
- Built for tough industrial conditions: rigorously tested under extreme conditions (TRUE HD) to ensure reliability
- Advanced panel 7” TFT color screen
Service Information
What's Included
- LINCGUN® PROMIG™ water cooled 330W (4m)
- Cooler COOLARC-26 factory installed
- FREEZCOOL coolant (9.6l)
- Input cable (5m)
- Ground cable (3m)
- Gas hose (2m)
- Drive roll for solid wire 1.0-1.2mm
- USB with Operator's Manual
Documentation
You May Also Need
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 878.3 mm x 560 mm x 934.7 mm |
| Net Weight | 70 kg |
Technical Specifications
| Machines Processes | Stick (SMAW) Flux-Cored (FCAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Metal-cored Wire (GMAW-C) |
| Open Circuit Voltage | 54V |
| Number of Operators per Machine | 1 |
| Input Voltage | 400V |
| Input Current | 25A |
| Input Hertz | 50/60 Hz |
| Input Phase | 3 Ph |
| Input Power | 400V/3/50-60 Hz (±15%) |
| Mode Icon | CC/CV |
| Output Range | 10-380A |
| Polarity | DC |
Features
| Ingress Protection Rating | IP23 |
| Data Technologies | Data Export Capable USB |
| Machines Communication Technology | digital |
| Wire Feeder Supply Voltage | 40VDC |
Application
| Typical Application | Construction General Fabrication Heavy Equipment Heavy Fabrication Maintenance & Repair Power Generation Railcar Fabrication Railing Industry Repair Welding Shipbuilding Structural Fabrication Structural Welding |
Warranty
| Warranty | 3 years |
