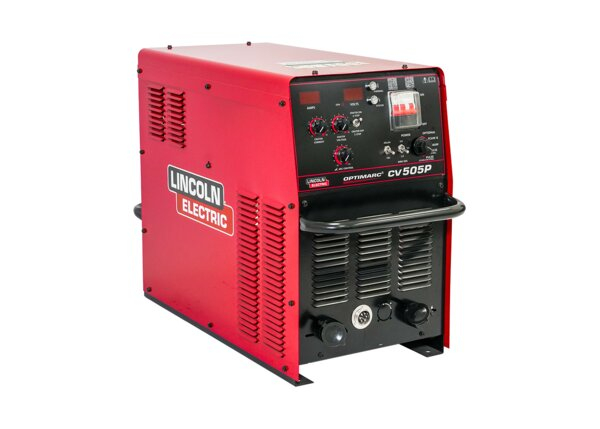

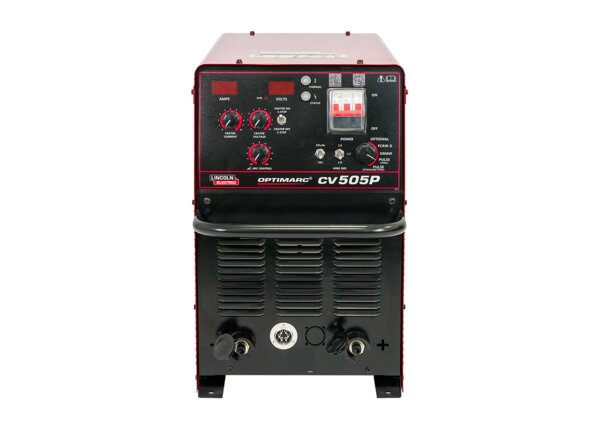

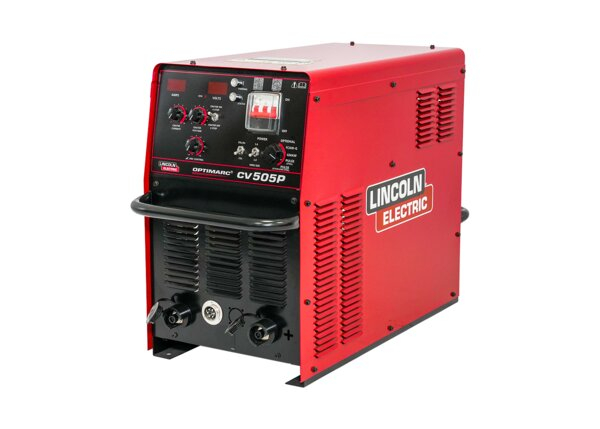

The image shown is for representation purposes only and may not reflect the actual product.
DETAILS
Equipped with advanced digital control capabilities, the system rapidly adapts to arc fluctuations, delivering stable output for heavy-duty welding applications and ensuring exceptional performance. It is the ideal solution for MIG/MAG and flux-cored arc welding (FCAW) processes. The unit supports pulse mode welding for both carbon steel and stainless steel, guaranteeing high-quality weld results.
Features
- Rated output up to 500A at 100% duty cycle, engineered for heavy-duty applications.
- Features a synergic function that automatically matches optimal arc voltage to the set welding current.

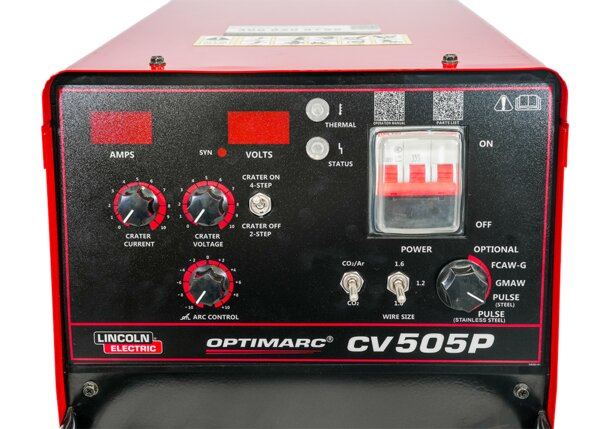

- Allows selection between "Soft Arc" and "Hard Arc" characteristics to suit specific applications.
- Features rapid arc response and uniform output, ensuring consistent weld bead appearance.
- Features imported circuit chips for arc control, delivering rapid response and consistent output stability.
- Core PCB assemblies are fully potting-encapsulated, providing maximum protection against dust, moisture, and vibration to ensure an extended service life even in harsh environments.
Service Information
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 540 mm x 340 mm x 800 mm |
| Net Weight | 47 kg |
Technical Specifications
| Machines Processes | Flux-Cored (FCAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Open Circuit Voltage | 60 |
| Input Voltage | 380V - 415V |
| Input Current | 39A |
| Input Hertz | 50Hz / 60Hz |
| Input Power | 380V - 415V/50Hz or 60Hz |
| Input Phase | 3 |
| Output Range | 50A - 500A 16 V - 39V |
Features
| Ingress Protection Rating | IP23 |
| Machines Communication Technology | analog |
| Wire Feeder Supply Voltage | 24-42VAC |
| Work Lead Connector Type | Lug |
Wire Feeding Specifications
| Communication Technology | analog |
| UI type | Simple |
| Wire Feeders Processes | MIG Pulsed MIG Flux Cored |
