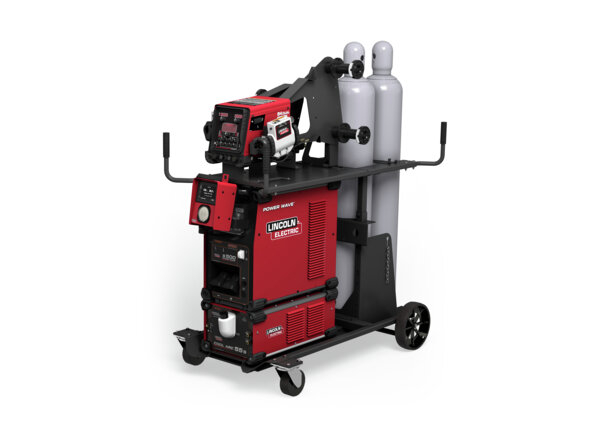

HyperFill® Reveal™ Power Feed® 84 Dual Ready-Pak®, Dual Cart
K4650-6
Twin wire productivity with single power source simplicity all packaged in a convenient Ready-Pak®
Model
Select Model
-
HyperFill® Reveal™ Power Feed® 84 Dual Ready-Pak®, Dual Cart
Twin wire productivity with single power source simplicity all packaged in a convenient Ready-Pak®
K4650-6
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
Twin Wire MIG Productivity Without Complexity
Designed to revolutionize heavy fabrication productivity, the patented HyperFill® twin wire MIG solution allows for increased deposition rates without compromising puddle stability or weld quality. Utilizing a single power source, a single wire feeder, a single tip, and Lincoln Electric premium wire, this innovative solution delivers a wide, smooth arc cone that allows for deposition rates above 18 lbs./hr. | 8.2 kg/hr. (24 lbs./hr. | 10.9 kg/hr. robotic) without added system or operator complexity.
Features
- Convenient Ready-Pak® - Comes ready to weld within minutes!
- Dual Process Ready - Run HyperFill® and a single wire process on the same system
- Advanced Connectivity - All Power Wave® systems come standard with access to Lincoln Electric Power Wave® Manager and Lincoln Electric Checkpoint® Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
- Compact and Durable - IP23 rated to withstand harsh environments.
- Patented PowerConnect® Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.
- Tribrid® Power Module - Exceptional welding performance with high power factor and efficiency.
- 115V (10A) AC Duplex Auxiliary Power Receptacle - Features Surge Blocker™ Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
- Smart Fan Operation - Only runs when needed to minimize noise and energy consumption.
- Solution Requirements » HyperFill® is a patented and licensed twin-wire MIG solution that is designed to perform specifically with select Lincoln Electric welding wire. The solution requires a licensed waveform which may require an additional purchase. For more details, reference document MC20-106.
- Industry Leading 5 Year Warranty
Service Information
What's Included
-
- Gateway Pendant | K4997-1
- Hyperfill™ Contact Tip - .035 - 10/pack | KP4482-035
- Cart for Inverter and Wire Feeder | K3059-4
- Cable Liner 1/16-5/64 in (1.6-2.0 mm) 15 ft (4.6 m) | KP44-564-15
- HYPERFILL® Drive Roll Kit (.035 -.040 in or 0.9 -1.0 mm) | KP4388-1
- Magnum® PRO Water-Cooled Gas Nozzle - Thread-On, 1/8 in. Recess, 3/4 in. ID | KP4523-1-75R
- Magnum® PRO Curve™ 300 Welding Guns | K2951-2-10-45
- Power Wave® S500 Advanced Process Welder | K2904-1
- Weld Power Cable 10.6 m – Lug to Lug – 600A/60% | K1842-10
- Cool Arc® 55 S Water Cooler | K3086-2
- Standard Duty Wire Reel Stand 20 kg spools max. | K3342-1
- Work Lead - Lug & GC500 Ground Clamp (4/0, 600A, 60%) - 15 ft (15.3 m) | K2149-1
- Drive roll kit (4R) 1.2-1.1 mm - Solid wires | KP1505-045S
- M-F Quick Disconnect Water Hose Kit (7 ft) | K4544-7
- Incoming Ball Bearing Bushing for Lincoln® Conduit | K1551-2
- Power Feed® 84 Dual Bench Wire Feeder - U/I, No Reel, USB | K3330-3
- Magnum® PRO 500 Water Cooled Welding Guns | K4522-2-10-564
- HYPERFILL® Reel Stand Conversion Kit | K4630-1
