The image shown is for representation purposes only and may not reflect the actual product.

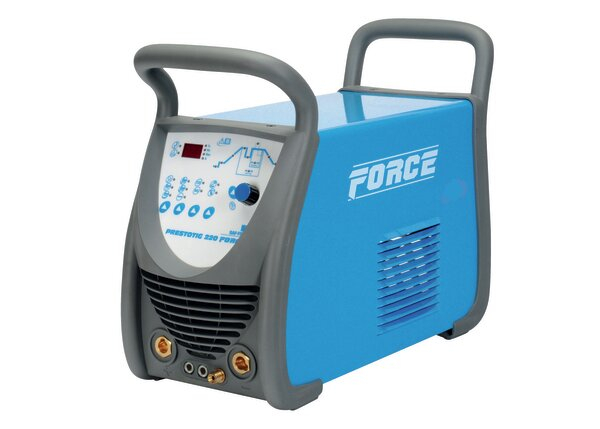

PRESTOTIG 220 FORCE
W000382578
Inverter for TIG DC welding - 230V/1Ph - Output current: 200A @35%
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
PRESTOTIG 220 FORCE offers leading technology in TIG DC welding with a user friendly interface. Additional features include programme storage capability and improved reliability due to PowerFactor Control technology
Features
- Robust design – varnished PC boards
- Improved generator compatibility: +/- 20% input voltage variation, PFC controller.
- Usable with great length of primary cable (up to 70 m in 2,5 mm² section)
- Excellent welding in TIG HF and TIG Lift mode.
- Hot start function and anti-sticking device.
- Digital display.
- Reduced noise – "intelligent" cooling fan
- Energy-saving – low current consumption.
- Simple control panel – easy setup, full control.
Service Information
What's Included
- Input cable with schuko plug (3m)
- Ground cable (3m)
- Gas connection kit
You May Also Need
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 460 mm x 345 mm x 205 mm |
| Net Weight | 12 kg |
Technical Specifications
| Input Current | 16A |
| Input Hertz | 50/60 Hz |
| Input Power | 230/1/50-60 Hz (+/-20%) |
| Input Phase | 1 ph |
| Mode Icon | CC |
| Polarity | DC |
| Rated Output | 220A@40%, 150A@100% |
Application
| Typical Application | General Fabrication Maintenance & Repair Structural Fabrication |
Warranty
| Warranty | 2 years |
