Détails

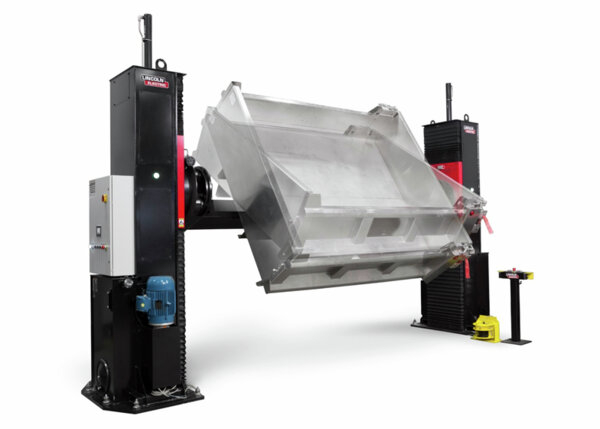

The Power Lift positioner is designed to safely manipulate work pieces into an ergonomic position reducing operator fatigue, resulting in improved quality.
Traits
- THK® Linear Rail & Bearing Provides Guided Z axis Travel
- Weld Spatter proof Bellows Protect Rails and Bearings
- Allen Bradley® Panelview ™ 800 With 4 Inch Monitor
- Integrated Hydraulic Power Unit(s)
- Programmable Z-Axis
- O ring Face Seal Fittings
- Central Lubrication Point
- Leveling Bolts With Anchor Provisions
- Laser Alignment System For Ease Of Installation
- Sleek Design
Des informations de service
Ce qui est inclu
- 35’ Connection Cable Packaging Of Equipment For Shipment High Capacity Rotary Ground Maintenance Manual
Caractéristiques
Global Attributes
| Positioner Type | Headstock/Tailstock |
| Load Capacity (lb) | 15000 |
| Rotation Torque (in. lbs) | 48000 |
| RPM | 1.5 |
Warranty
| Warranty | 1 Year |
