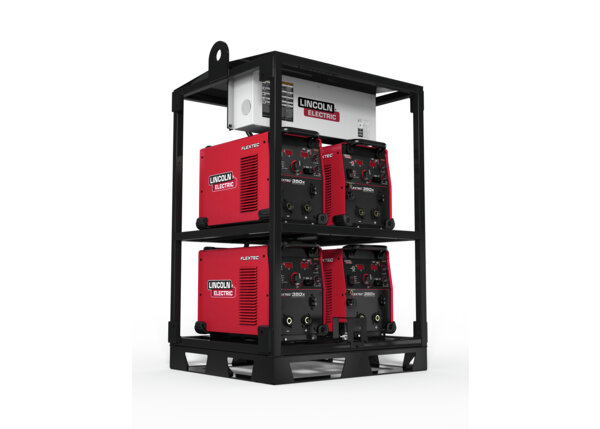

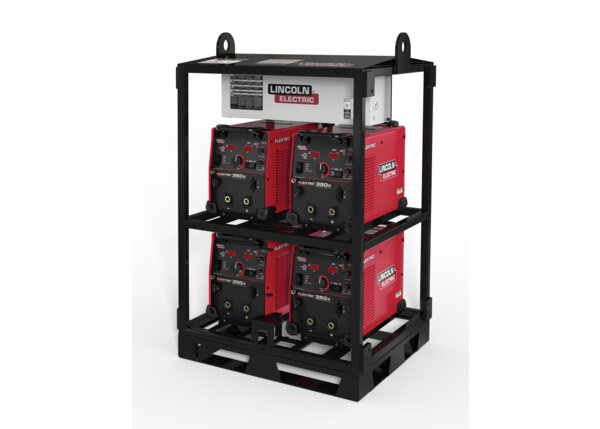

Flextec® 350X Construction (Tweco) 4-Pack Rack
K3402-3
Flextec 350X construction multi-process 4 pack welding rack power source has CrossLinc technology for remote operation in construction welding applications.
PDSF
CAD 55 347,60 $/EA
Partenaire commercial Lincoln Electric?
Connectez-vous pour voir votre prixDétails
Flextec 350X Construction model 4-pack inverter rack is a compact rack that houses and protects 4 Flextec 350X Construction model power sources. Allows for easy transport to and from the construction site. Convenience of a single primary power drop for powering 4 welding arcs. Flextec 350X machines are CrossLinc compatible which allows for greater control and productivity.
Traits
- Compact and tough inverter rack structure allows up to (4) Flextec 350X welders to be transported and as one unit protected from the elements.
- All machines connected to a common work stud.
- Powers all welders with one primary power drop.
- Heavy square tubing used throughout construction, even for roof supports, to resist bending and twisting during lifts.
- IP23 rated for outdoor use
- Flextec 350X PowerConnect machines use industry segment Tweco style connections.
Disclaimers
Des informations de service
Ce qui est inclu
- Work cables from individual machines to inverter rack work stud.
Documentation (en anglais seulement)
Vous pourriez également avoir besoin
Caractéristiques
Product Weights & Dimensions
| Dimensions (H x W x D) | 59.72 in x 37.25 in x 32.88 in (1516 mm x 952 mm x 835 mm) |
| Net Weight | 620 lbs (281 kg) |
General Specification
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Input Voltage | Fused for 460V 3-phase |
| Input Current | 68A |
| Input Hertz | 50/62 |
| Input Phase | 3 |
| Input Power | 380/460/575/3/50/60 |
| Mode Icon | CC/CV |
| Output Range | 5-425A |
| Polarity | DC |
Machine Technologies & Connections
| Ingress Protection Rating | IP23 |
| Output Range by Mode | 5-425A |
| Machines Communication Technology | CrossLinc |
| Wire Feeder Supply Voltage | 40VDC |
| Amphenol Pins (type of connector) | 12 |
| Work Lead Connector Type | Tweco |
Application
| Typical Application | Cross Country Pipeline Construction & Field Erection General Fabrication Heavy Equipment Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 5 Years |
