Détails

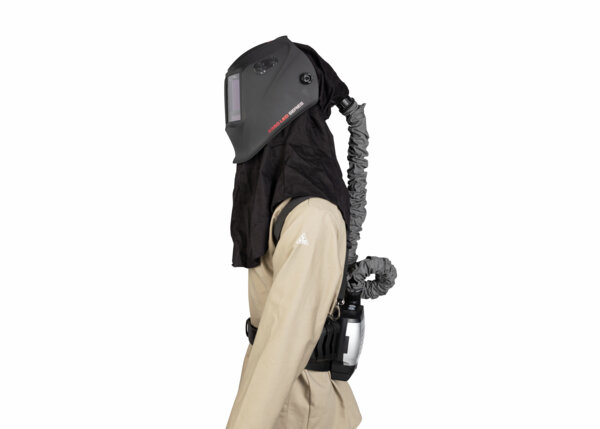

The VIKING 3350 LED PAPR combines industry-leading respiratory protection, premium optics, and exceptional comfort to help welders perform at their best in demanding environments. This NIOSH 42 CFR Part 84 approved loose-fitting positive pressure respirator delivers filtered, breathable air while the HEPA filtration system captures 99.97% of particulates at 0.3 microns.
Experience superior visibility with Lincoln Electric’s premium 4C® Lens Technology, 1/1/1/1 optical clarity, an expansive 11.8 sq. in. viewing area, and an ultra-clear DIN 2.5 light state. The integrated external LED light enhances visibility during arc-off time without adding bulk.
Stay protected and productive with an APF 1000 FR shroud, plus an included APF 25 head cover for added versatility. The intelligent blower and extended-life lithium-ion battery provide up to 16 hours of runtime, while patented adjustable airflow maximizes comfort. Complete with external grind control, easy-to-use digital ADF controls, and both backpack and belt mounting options, the VIKING™ 3350 LED PAPR is built for performance, protection, and convenience.
Traits
- Premium Optics - 4C® Lens Technology, 1/1/1/1 Optical Clarity and large 11.8 sq. inch viewing area.
- DIN 2.5 Light State - This welding helmet features Lincoln Electric's highest quality viewing lens. Clear view of the work area during arc-off time so you never need to flip your hood up and lose protection.
- External LED Light - The modular LED light improves visibility during arc-off time, while maintaining a low profile that's easily integrated into the shade cartridge. External button control.

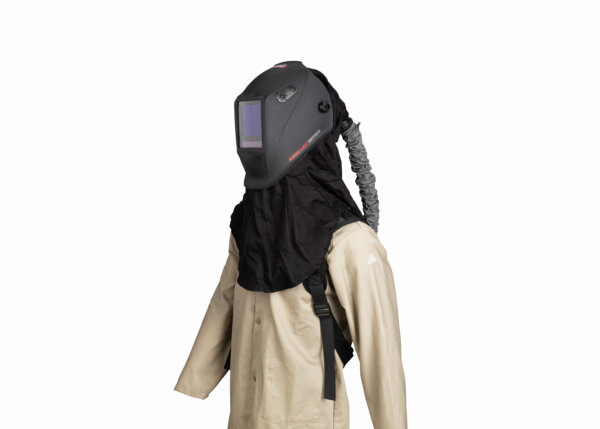

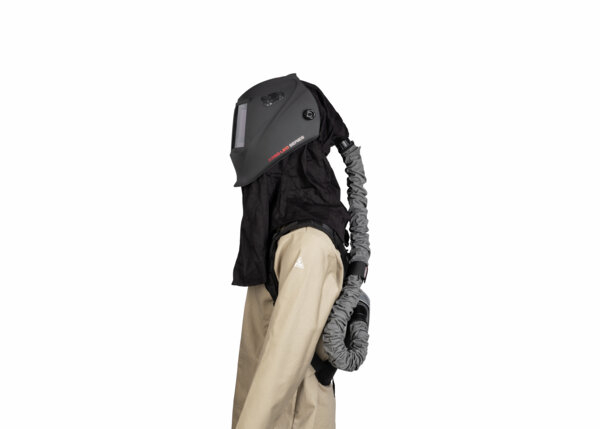

- Assigned Protection Factor (APF) 1000 Shroud - Comprehensive protection with a lightweight and comfortable FR fabric head-covering. Alternative APF 25 smaller head cover included in the package as well.
- HEPA Filter - Multi-component filter system provides 99.97% particulate filtration at 0.3 microns.
- Intelligent Blower with Extended Battery - Rechargeable lithium ion battery provides up to 16 hours of charge.
- Patented Air Delivery - Unique baffling allows the user to adjust airflow direction
- External Grind Control - Low profile, external button allows operator to switch between weld and grind mode in seconds

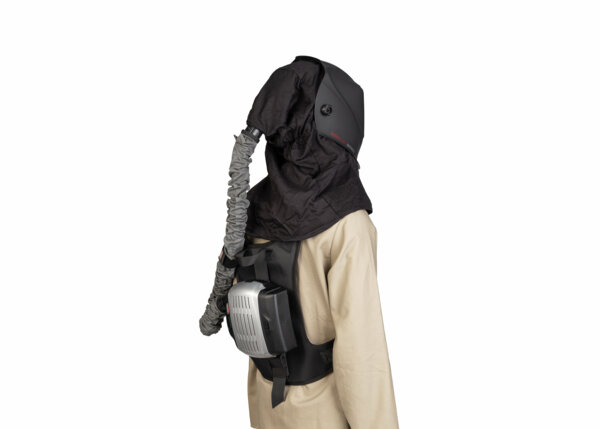

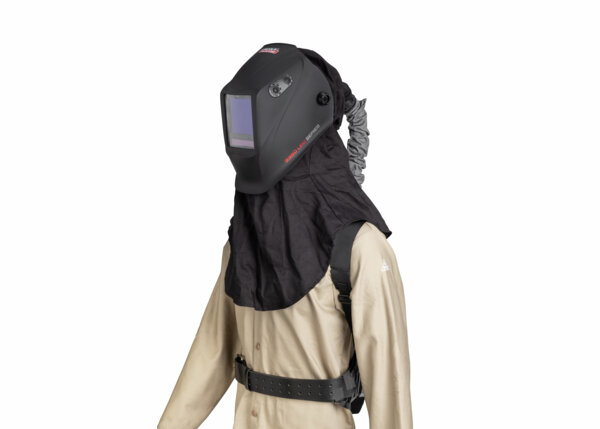

- Includes both backpack and belt with should straps in the package so you can choose whichever mounting option you are most comfortable with.
- Easy to Use digital push-button ADF controls.
Disclaimers
Des informations de service

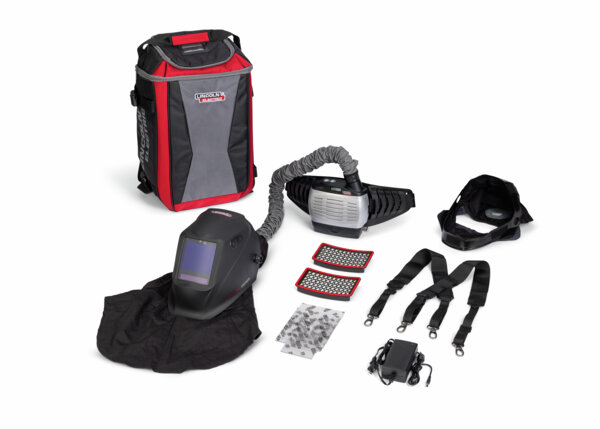

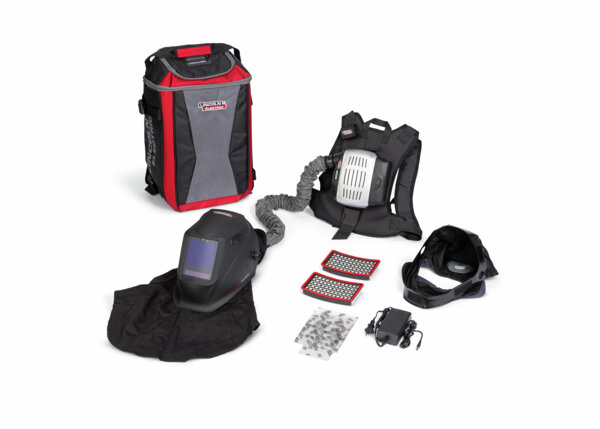

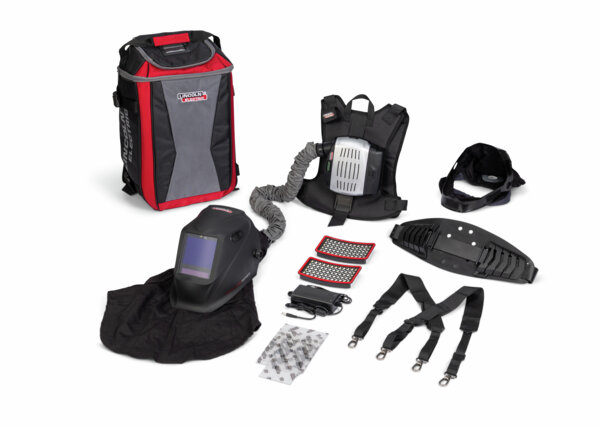

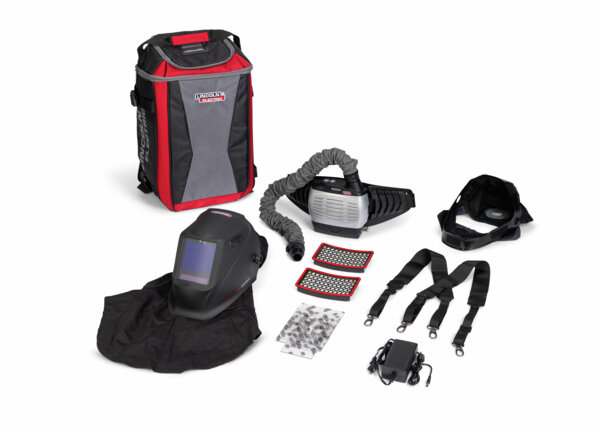

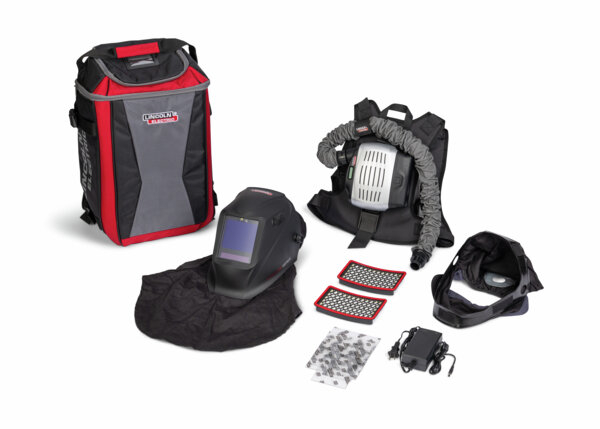

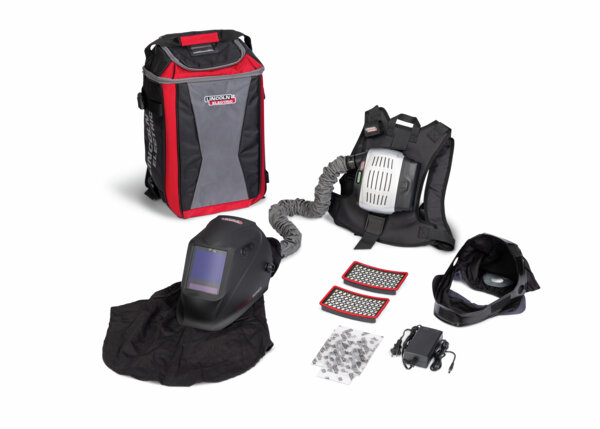

Ce qui est inclu
-
- VIKING™ 3350 ADV Inside Cover Lens - 5/PK | KP5244-1
- VIKING™PAPR - Extended Battery | KP3938-1
- PAPR - Hose Assembly with Cover | KP5122-1
- PAPR - Adjustable Leather Belt Assembly | KP5123-1
- VIKING™ PAPR - Air Purifying Blower Assembly | KP3944-1
- PAPR - Battery Charger - 115V | KP3932-1
- Lentille de protection extérieure VIKING™ 750S/2450/3350 - lot de 5 | KP2898-1
- PAPR - Shoulder Strap Assembly | KP5124-1
- PAPR - Spark Screen | KP3936-1
- PAPR VIKING™Pre-filter (6/pak) | KP3935-1
- VIKING™PAPR - High Efficiency Particulate Filter (2/pak) | KP3424-2
Caractéristiques
Respiratory Protection
| Respiratory Protection Product Types | Loose Fitting Powered Air Purifying Respirator |
| Respiratory Protection Compliance | NIOSH 42 CFR 84 |
| Respiratory Protection Product Series | VIKING 3350 |
| Respiratory Protection Filter Type | Spark Screen Pre Filter HEPA |
| Respiratory Protection Assigned Protection Factor | APF 1000 as installed APF 25 with short head cover option |
| Respiratory Protection ADF Viewing Area | 3.74 x 3.15 in (95 x 80 mm) |
| Respiratory Protection Headgear Type | Welding Helmet with FR Headcovering |
| Respiratory Protection Weight | Blower Weight: 2.70 lb (1.2 kg) |
| Respiratory Protection Air Flow | Low Speed: 180+ lpm (6+ cfm) High Speed: 210+ lpm (7.4+ cfm) |
| Respiratory Protection Battery Charge Time | 4.5 Hours |
| Respiratory Protection Battery Charges | 500 Charges |
| Respiratory Protection Battery Life | 16 Hours |
| Respiratory Protection Alarms | Audible & Vibrate |
Welding Helmets
| Welding Helmets Product Types | Auto-Darkening |
| Welding Helmets Compliance | ANSI Z87.1 CSA Z94.3 |
| Welding Helmets Product Series | VIKING 3350 Series |
| Welding Helmets Shell Type | Black |
| Welding Helmets ADF Viewing Area | 3.74 x 3.15 in (95 x 80 mm) |
| Welding Helmets Control Type | Digital |
| Welding Helmets External Controls | Grind Button |
| Welding Helmets Cartridge Size | 4.5 x 5.25 in (114 x 133 mm) |
| Welding Helmets Cheater Lens Compatible | Yes |
| Welding Helmets Cut Mode | Yes |
| Welding Helmets Flip Up Lens | No |
| Welding Helmets Grind Mode | Yes |
| Welding Helmets Helmet Material | Nylon |
| Welding Helmets Lens Shade Rating | Shades 4 to 13 |
| Welding Helmets Light State/ Grind Mode Shade Rating | DIN 2.5 |
| Welding Helmets Light to Dark Switch Time | 1/25,000 s |
| Welding Helmets Magnifying Lens Holder | Yes |
| Welding Helmets Manufacturer Color/Finish | Matte Black |
| Welding Helmets Number of Sensors | 4 Sensors |
| Welding Helmets Power Supply | 1 CR2450 Battery with solar panel support |
| Welding Helmets TIG Rating | AC/DC: ≥ 2 Amp |
| Welding Helmet LED Light Brightness | 65 lumens |
Replacement Parts
| Cover Lenses | KP2898-1 Outside Cover Lens KP5244-1 Inside Cover Lens S27978-32 Gasket - Outside Cover Lens Seal KP4628-1 Bulk Outside Cover Lens – 3350 & 2450 Series |
| Sweatband & Headgear | KP3942-1 3350 PAPR Headgear; KP3943-1 3350 PAPR Sweatband (2 pack) |
| Cheater Lenses | KP3046-XXX Magnifying Cheater Lenses - 1.00 MAG - 2.50 MAG |
| Auto-Darkening Filter & Parts | KP5539-1 3350 LED PAPR Series ADF 4-13 Shade Cartridge (direct replacement) KP3045-5 3350 ADV Series 5-13 Shade Cartridge (more advanced controls and Bluetooth connection) KP3045-4 3350 Series 5-13 Shade Cartridge (basic analog control option) KP5246-1 Replacement External Button Housing KP4491-1 CR2450 Lithium Battery S27978-153 ADF Cartridge Holder |
| Replacement Shells | KP4704-2 3350 LED Series Replacement Shell |
Storage Gear
| Storage Gear Product Types | Duffle Pack |
Warranty
| Warranty | 1 Year on the Blower Assembly, 5 Years on the Helmet Auto Darkening Lens |
