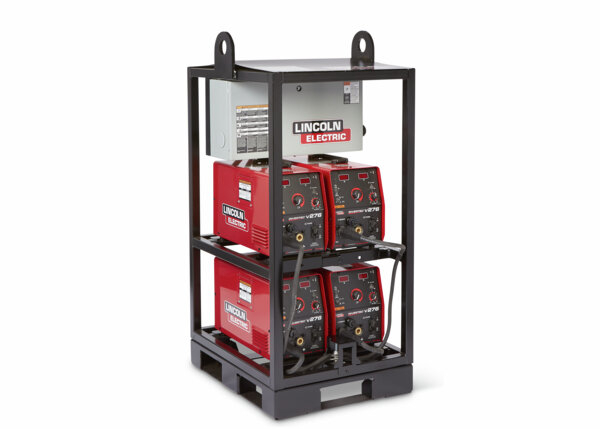

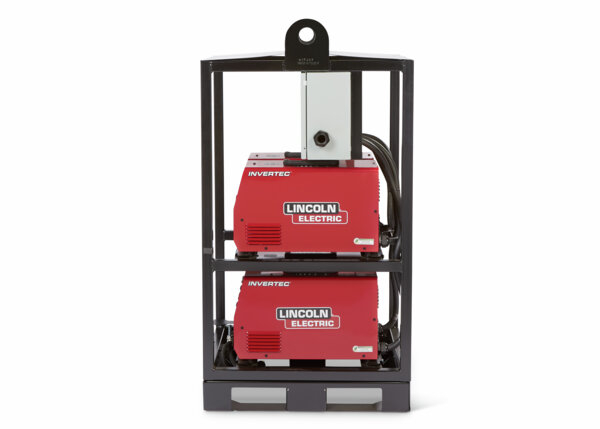

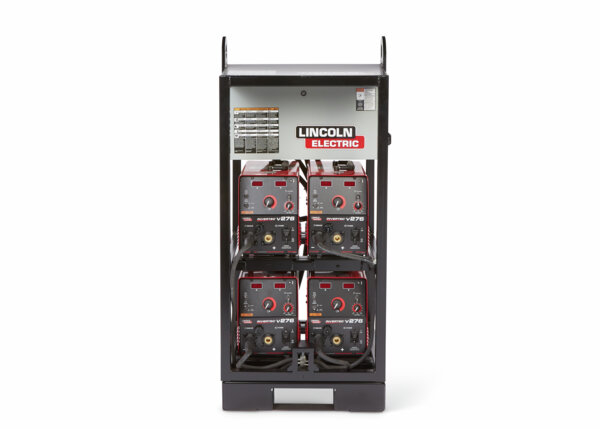

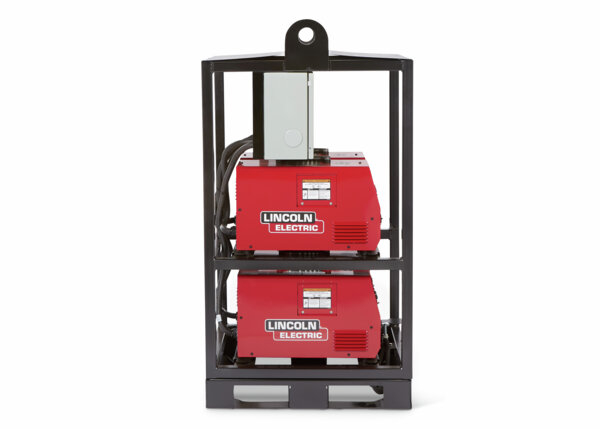

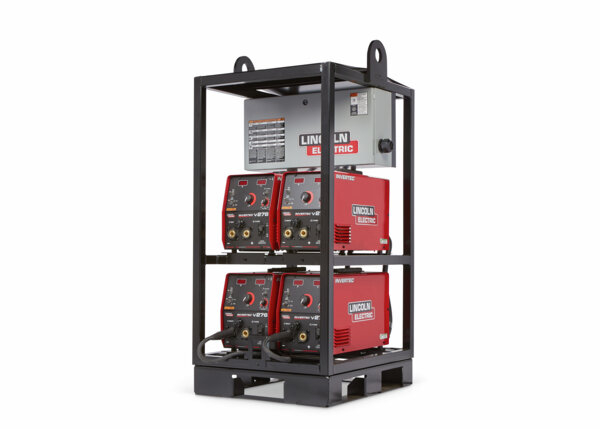

Invertec® V276 4-Pack Rack
K4869-1
Compact, Efficient and Weather Resistant Racks
PDSF
CAD 34 039,92 $/EA
Partenaire commercial Lincoln Electric?
Connectez-vous pour voir votre prixDétails
Lincoln Electric's rack systems are ideal for grouping several inverter power sources in a portable industrial-grade package for construction and other environments.
Traits
- One easy connection – Allows power sources to be connected with one primary power drop.
- Two overhead lifting eyes, two fork lift slots, and four heavy duty optional casters - Provide ease of portability.
- Work leads and common ground are included.
- Individual fuses – Provide overcurrent protection for each power source.
- The power sources are factory installed in the rack and wired to the main power distribution panel.
Disclaimers
Des informations de service
Ce qui est inclu
- (4) Invertec® V276 (Tweco®) (K4868-1) Power Sources
- (4) Work Leads
- Common Work Stud
- Stud Cover
- Rack and Distribution Panel
Vous pourriez également avoir besoin
Caractéristiques
Product Weights & Dimensions
| Dimensions (H x W x D) | 59 in x 37.5 in x 32.88 in (1500 mm x 952 mm x 835 mm) |
| Net Weight | 644 lbs (292 kg) |
General Specification
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) |
| Input Voltage | 208/230/380/415/460/575 VAC |
| Input Hertz | 50/60 Hz |
| Input Phase | 3 Phase |
| Output Range | 20-275 A |
Machine Technologies & Connections
| Ingress Protection Rating | IP23 |
| Amphenol Pins (type of connector) | 6 |
| Work Lead Connector Type | Tweco |
Application
| Typical Application | Construction Structural Welding |
Warranty
| Warranty | 3 Years Standard |
