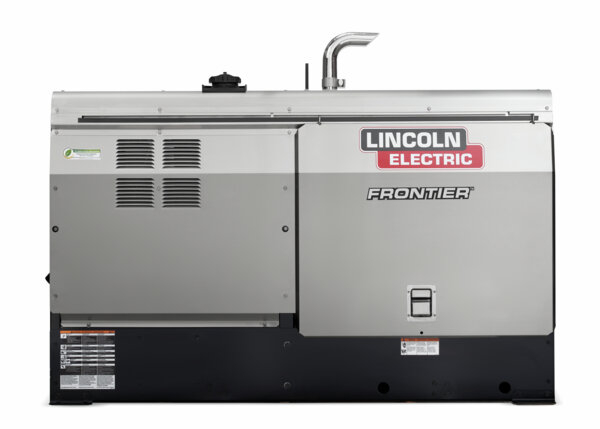

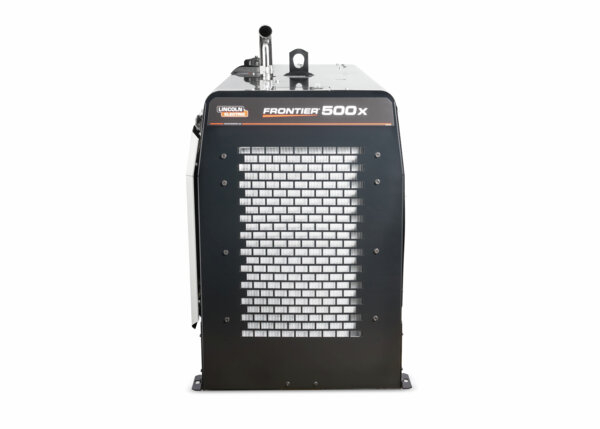

Frontier® 500X (Kubota®)
K5350-2
Frontier® 500X powered by a 48.6 hp Kubota® V2403 diesel engine.
PDSF
CAD 53 198,60 $/EA
Partenaire commercial Lincoln Electric?
Connectez-vous pour voir votre prixDétails
The Frontier® 500X is a powerful engine-driven welder/generator, delivering top-tier arc performance and the latest welding technology for unmatched jobsite versatility. Its multi-process capabilities support both CC and CV modes, including advanced features for STT®, pulse welding, and mechanized applications. A next-generation 7-inch digital display offers an intuitive, operator-friendly interface with features like weld memory save/recall, maintenance reminders, and optional PIN access. Additional innovations like Auto-Stop/Start reduce fuel use and engine wear, while CrossLinc® Technology enables voltage and current control right at the arc—boosting productivity, safety, and weld quality.
Traits
- Ultimate Jobsite Versatility – Delivers up to 525 amps of welding power across six optimized CC and CV modes—plus advanced support for pulsed TIG, MIG, STT®, and mechanized systems.
- Continuous Auxiliary Power – Provides up to 15 kW of steady three-phase power to run heavy-duty tools including plasma cutters, pumps, and inverter welders.
- Next-Gen Display – Bright, rugged 7” digital interface with memory storage, maintenance alerts, and optional PIN security for simplified operation and machine control.
- CrossLinc® + True Voltage Technology™ – Adjust machine output directly at the arc—no control cable required. Enhances safety, reduces jobsite clutter, and compensates for voltage drop automatically.
- Fuel Efficient, Built to Run – A 20-gallon (75.7 L) fuel tank paired with Auto-Stop/Start technology minimizes idling, cuts fuel costs, and extends engine life.
- Proven Diesel Performance – Powered by a 48.6 hp turbocharged Kubota® diesel engine for smooth, quiet operation that meets EPA Tier 4 Final emissions standards.
- Built for the Toughest Jobs – Rugged, reliable design backed by industry-leading support and a 3-year warranty.
Disclaimers
Des informations de service
Ce qui est inclu
- Machine Only
Vous pourriez également avoir besoin
Caractéristiques
Product Weights & Dimensions
| Dimensions (H x W x D) | 40.4 in x 28.4 in x 65.0 in (1027 mm x 721 mm x 1651 mm) |
| Net Weight | 1462 lbs (663 kg) |
General Specification
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW) |
| Open Circuit Voltage | 60V OCV (71 Peak) |
| Number of Operators per Machine | 1 |
Machine Technologies & Connections
| Ingress Protection Rating | IP23 |
| IEC Rating | 500A / 40V / 100% @ 104°F (40°C) |
| Output Range by Mode | Stick (SMAW): 30 – 525 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 10 – 45 Volts DC TIG (GTAW): 5 – 400 Amps Arc Gouging (CAC-A): 60 – 525 Amps |
| Rated Gouging Carbon Diameter | 3/8 in (9.5 mm) |
| Data Technologies | Ethernet Data Export Capable J1939 CAN |
| Machines Communication Technology | CrossLinc |
| Wire Feeder Supply Voltage | 40VDC |
| Amphenol Pins (type of connector) | 12 14 |
| Work Lead Connector Type | Lug |
| Spool Gun Compatible (Duty) | Heavy |
Engine Driven Welders
| Single Phase Auxiliary Output | 12,000 Watts Continuous / 15,000 Watts Peak, 120/240V |
| Three Phase Auxiliary Output | 20,000 Watts Continuous / 21,000 Watts Peak, 120/240V |
| Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
| Engine Brand & Model | Kubota® V2403 |
| Engine Description | 4 Cylinder Turbocharged Water Cooled Diesel Engine |
| Engine Horsepower | 48.9 hp (36.5 kW) |
| Engine Block Size & Displacement | 148.5 cu. in (2.43 L) Bore x Stroke - 3.43 in x 4.03 in (87 mm x 102.4 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 1800 |
| Low Idle Operating Speed | 1500 |
| Fuel Tank Size (US gal.) | 20 |
| Fuel Tank Size (L) | 75.7 |
| Oil Capacity (qts.) | 10 |
| Oil Capacity (L) | 9.5 |
| Coolant Capacity (US gal.) | 9 |
| Coolant Capacity (L) | 8.5 |
| Max OCV | 71V |
Application
| Typical Application | Construction Mining Railroad Maintenance Construction & Field Erection Heavy Equipment Heavy Fabrication High-strength Pipe Maintenance & Repair Offshore Oil & Gas Pipeline & Offshore Power Generation Power Plants Repair Welding Shipbuilding Structural Welding |
Warranty
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer. |
