Détails

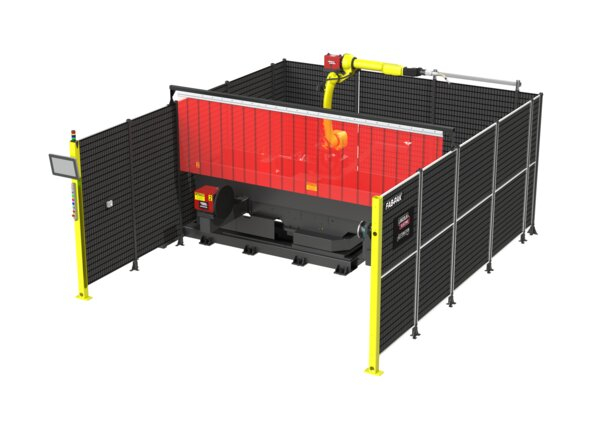

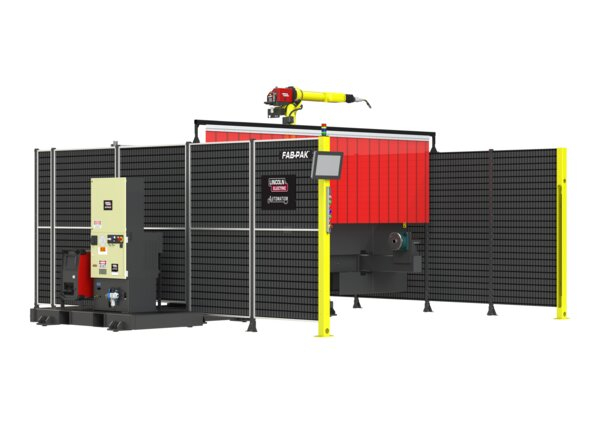

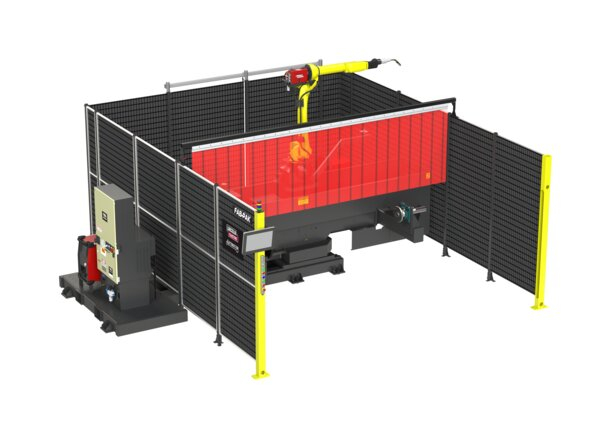

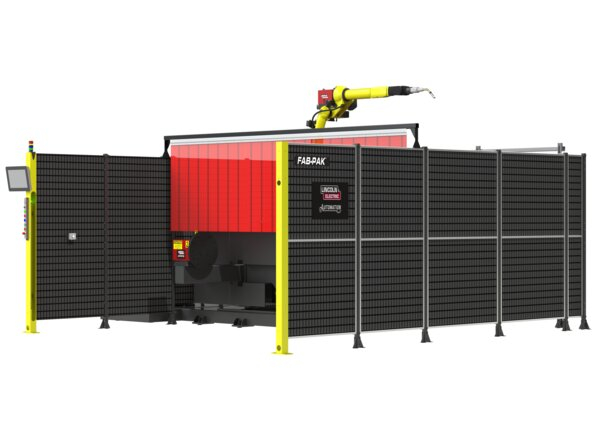

Designed for the high-mix, low volume manufacturing industry, the Fab-Pak® family of robotic welding systems provides businesses with a wide range of manufacturing capabilities and system flexibility. The Fab-Pak XHS standard robotic welding system is ideal for small- to medium-sized parts that need reorientation.
Traits
- Single load/unload access point
- Headstock/tailstock positioner in each zone
- Full welding capabilities with a small robot arm and system footprint
- Increases accuracy and repeatability
- Easily configurable for future production flexibility
- ANSI/RIA safety compliant
Des informations de service
Ce qui est inclu
- Power Wave® R450 power source
- AutoDrive® AD2504 wire feeder
- Magnum® PRO robotic torch
- Power Ream® II torch maintenance unit
- Servo-driven H-Frame indexing unit
- FANUC welding robot
- Robot basic software package
- Wire mesh panels with weld curtains
- Push button control
Caractéristiques
Global Attributes
| System Type | Indexing Headstock Center-Mount |
| Number of Work Zones | 1, 2 |
| Industry/Application | High-mix, low-volume manufacturing |
| Overall Footprint Width in (mm) | 199 (5051) |
| Overall Footprint Depth in (mm) | 208 (5266) |
| Sweep in (mm) | 49 (1250) |
| Span in (mm) | 79 (2000) |
| Payload Per Zone lb (kg) | 2200 (1000) |
| Panel Type | Wire Mesh/Curtain |
| Crane Access | Yes |
| Roll Up Door | No |
| Pushbutton Control | Yes |
| HMI Control | Option |
| Power Distribution | Option |
| Robot Programming Training Included | Yes |
| ANSI/RIA Compliant | Yes |
| Sensor Interlocked Access Points | Yes |
| Flash Barrier Type | Fixed |
| Fanuc Compatability | Yes |
| ABB Compatability | No |

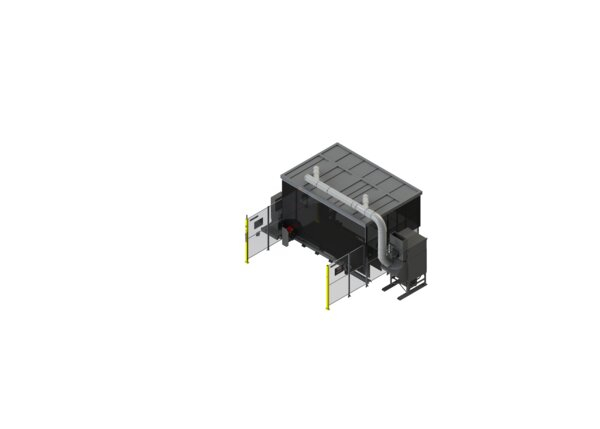

| Fume Extraction Equipment | Optional |
| Crown Mounted Robot | No |
| Robotic Torch Cleaning Station | Optional |
| Weld Gas Distribution Station | No |
| Weld Gas Flow Monitor | No |
| Pneumatic Distribution Station | No |
| Zero Friction Wire Delivery | No |
| Wire Detect Sensors | No |
| Customization Available | No |
Application
| Typical Application | Automotive General Fabrication |
Warranty
| Warranty | 1 Year |
