SHFA Flat Suction Nozzle
K639-5
SHFA Flat Suction Nozzle
Modèle
Sélectionnez un modèle
-
EN 20 Extraction Nozzle
EN 20 Extraction Nozzle
K2389-5
-
SHFA Flat Suction Nozzle
SHFA Flat Suction Nozzle
K639-5
-
SHM-300 Suction Nozzle - 300 mm (12 in)
SHM-300 Suction Nozzle - 300 mm (12 in)
K639-1
-
UNM Suction Nozzle for Heavy Smoke
UNM Suction Nozzle for Heavy Smoke
K639-6
-
MBH Wall Mounting Bracket
MBH Wall Mounting Bracket
K2389-7
-
NKT Nozzle Kit
NKT Nozzle Kit
K2389-3
-
Hose
Extraction Hose with Adapters, 1-3/4 in. (45mm) Diameter x 16 ft. (5m) Length
K2389-8
-
Hose
Extraction Hose with Adapters, 1-3/4 in. (45mm) Diameter x 8 ft. (2.5m) Length
K2389-9
-
Extraction Hose, 1 in. (25mm) Diameter (ID) x 8 ft. (2.5m) Length
Extraction Hose, 1 in. (25mm) Diameter (ID) x 8 ft. (2.5m) Length
K4111-8
-
Extraction Hose, 1 in. (25mm) Diameter (ID) x 25 ft. (7.6m) Length
Extraction Hose, 1 in. (25mm) Diameter (ID) x 25 ft. (7.6m) Length
K4111-25
-
Extraction Hose, 1-3/4 in. (45mm) Diameter (ID) x 8 ft. (2.5m) Length
Extraction Hose, 1-3/4 in. (45mm) Diameter (ID) x 8 ft. (2.5m) Length
K4113-8
-
Extraction Hose, 1-3/4 in. (45mm) Diameter (ID) x 25 ft. (7.6m) Length
Extraction Hose, 1-3/4 in. (45mm) Diameter (ID) x 25 ft. (7.6m) Length
K4113-25
-
Connector, Hose-To-Hose, 1 in. to 1-3/4 in.
Connector, Hose-To-Hose, 1 in. to 1-3/4 in.
K4115-3
-
Connector, Hose to Hose, 1-3/4 in. to 1-3/4 in.
Connector, Hose to Hose, 1-3/4 in. to 1-3/4 in.
K2389-10
-
Adapter, Hose-to-Tube, 1 in. to 1 in.
Adapter, Hose-to-Tube, 1 in. to 1 in.
K3492-1
-
Adapter, Hose-to-Tube, 1-3/4 in. to 1-1/2 in.
Adapter, Hose-to-Tube, 1-3/4 in. to 1-1/2 in.
K3492-2
-
Adapter, Hose-to-Tube, 1-3/4 in. to 1-3/4 in.
Adapter, Hose-to-Tube, 1-3/4 in. to 1-3/4 in.
K3492-3
-
Adapter, Hose-to-Tube, 1-3/4 in. to 2 in.
Adapter, Hose-to-Tube, 1-3/4 in. to 2 in.
K3492-4
-
Connection Kit, X-Tractor 3A
Connection Kit, X-Tractor 3A
K3968-1
-
Connection Kit, X-Tractor 5A / 8A
Connection Kit, X-Tractor 5A / 8A
K3969-1
-
Hose
Hose and Hood Set - 16 ft
K1668-1
-
Hose
Exhaust or Extension Hose Set - 16 ft (5 m)
K1668-2
-
Flexible extraction hose with magnetic hood set for weld fume extraction and filtration applications. Used with Mobiflex 200-M and 400-MS.
K1668-3
-
Accessory
Central System Connection Kit for Downflex 100-NF
K2752-10
-
Accessory
Dust Container for Downflex 100-NF
K2752-11
-
Adapter
Adapter, Hose-to-Tube, 3 in. to 3 in.
K3492-5
-
Hose
Extraction Hose, 3 in. (76mm) Diameter (ID) x 25 ft. (7.6m) Length
K4114-25
-
Hose
Extraction Hose, 3 in. (76mm) Diameter (ID) x 8 ft. (2.5m) Length
K4114-8
-
Connector
Connector, Hose-To-Hose, 3 in. to 3 in.
K4115-10
-
Tapered Plug (for X-Tractor 2)
This is a rubber plug that fits inside of the extractor ports on the front of the X-Tractor 2 Unit to block suction if only one nozzle is being used.
K5412-1
PDSF
CAD 1 036,00 $/EA
Partenaire commercial Lincoln Electric?
Connectez-vous pour voir votre prixDétails

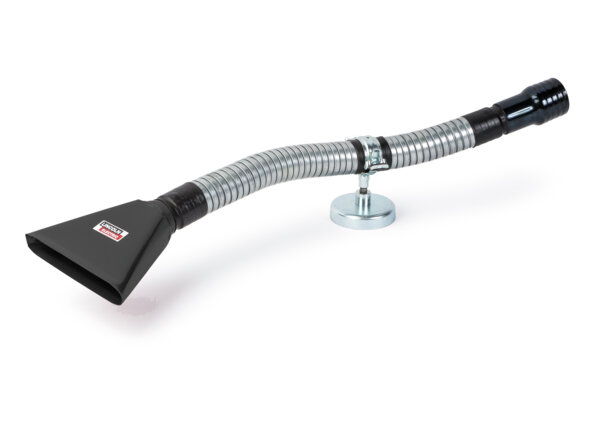

150 mm (6 in.) Aluminum suction nozzle with 20 in. (500 mm) flexible steel hose and magnetic mounting. Includes S20591-7 adapter for 1 3/4 in. (45 mm) hose. Best capture distance: < 4 in. (100 mm).
Traits
- Flexible steel hose
- Magnetic stand
Disclaimers
Des informations de service
Ce qui est inclu
- Nozzle
- magnetic stand
- hose-to-tube adapter for 1-3/4 in. (I.D) hose
Caractéristiques
Product Weights & Dimensions
| Dimensions (H x W x D) | 5.5 in x 16.25 in x 13.5 in (140 mm x 413 mm x 343 mm) |
| Net Weight |
Application
| Typical Application | Automotive General Fabrication Heavy Fabrication Maintenance & Repair Repair Welding Robotics Shipbuilding Structural Fabrication |
Warranty
| Warranty | 1 Year |
