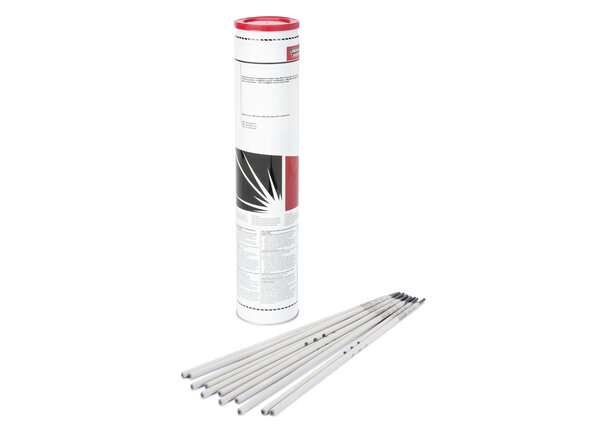

Lincoln Electric Stick Electrodes
L'image affichée est à des fins de représentation uniquement et peut ne pas refléter le produit réel.

Diameters / Packaging

Diameters
 (3) 10 lb Easy Open Can
1/8 x 14 in (3.2 x 350 mm) ED038209
5/32 x 14 in (4.0 x 350 mm) ED038210

Pipeliner® 80R

Stick (SMAW)

AWS:
AWS A5.5 E8010-P1

Low Alloy, Cellulosic, Pipe • AWS A5.5 E8010-P1

Diamètre

Sélectionnez le diamètre

  • 1/8 x 14 in (3.2 x 350 mm)
  • 5/32 x 14 in (4.0 x 350 mm)

Paquet

Sélectionnez un forfait

  • (3) 10 lb Easy Open Can
Acheter maintenant

Détails

Low alloy, cellulosic stick electrode designed for high strength root pass vertical down welding of cross-country and in-plant pipe.

Traits

  • Same welding behavior as Fleetweld® 5P+ with a 80ksi strength.
  • Cross country and in-plant welding
  • Deep arc penetration
  • Light slag with minimal arc interference
  • Q2 Lot® Control - Certificate showing actual deposit chemistry and mechanical properties per lot available online
  • Excellent vertical and overhead capability

Applications typiques

  • Pipeline construction
  • Root pass for high strength pipe construction

Positions de soudage

  • All

Gaz de protection

  • Not Applicable

Caractéristiques spéciales

  • No intentional addition of Boron

Disclaimers

Warning -

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

Des informations de service

BEFORE USE, READ AND UNDERSTAND THE SAFETY DATA SHEET (SDS) FOR THIS PRODUCT AND SPECIFIC INFORMATION PRINTED ON THE PRODUCT CONTAINER. SDS Search page

See test result disclaimer

CONFORMANCE

CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.5 E8010-P1
CWB AWS A5.5M E5510-P1
TUV AWS A5.5M E5510-P1

MECHANICAL PROPERTIES

Classification Yield Strength @ 0.2% Offset
MPa (ksi) 		Tensile Strength
MPa (ksi) 		Elongation
% 		Charpy V-Notch
J (ft-lbs) @ -30°C (-20°F) 		Charpy V-Notch
J (ft-lbs) @ -45°C (-50°F) 		Hardness Rockwell B
E8010-P1 Requirement 460 (67) min. 550 (80) min. 19 min. 27 (20) min. Info. Only
Typical Result, As-welded 480-500 (69-73) 580-610 (84-89) 26-28 34-103 (25-76) 27-80 (20-59) 87-93

DEPOSIT COMPOSITION

Classification %C %Cr %Mn %Mo %Ni %P %S %Si %V
E8010-P1 Requirement 0.20 max. 0.30 max. 1.20 max. 0.50 max. 1.00 max. 0.03 max. 0.03 max. 0.60 max. 0.10 max.
Typical Result 0.12-0.20 0.02-0.03 0.66-0.81 0.12-0.17 0.01-0.04 0.01 max. 0.01 max. 0.16-0.22 0.01 max.

TYPICAL OPERATING PROCEDURES

Diameter Polarity⁽¹⁾ Current
Amps
1/8" (3.2 mm) DC+ 70-130
5/32" (4.0 mm) DC+ 100-170

NOTES

Note
Preferred polarity is listed first.
Measured with 0.2% offset
