FlexCut® 65
K14453-1
Plasma cutter - 230-400V/3Ph - Output current: 65A @50% (400Vac) - 65A @50% (230Vac) - Maximum steel cutting capacity: 25 mm
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
The FlexCut 65 delivers powerful, reliable performance for both handheld and mechanized applications. With eight plasma cutting processes, it’s built to handle a wide range of jobs with speed and precision. CNC integration features built-in ports for easy setup and automatic detection, while the large LCD display provides clear, intuitive controls. Compatible with our FlexConnect™ Torch System, giving you the flexibility to switch between torch heads or cables in seconds.
Features
- 65 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
- High Duty Cycle: Built for demanding applications without overheating or slowing down.
- LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
- Dual Voltage Flexibility: Plug into 230V or 400V power sources.
- Continuous Output : Maintains consistent performance during long cutting sessions and fast cutting on expanded metal.
- Industrial IP23 Protection : Resists dust and water spray for dependable performance in challenging conditions
- Multi-Process Capability : Drag Cutting, Grid Cutting, Mechanized, Extended, Precision Cutting, Gouging & Marking
- Patented FlexConnect™ Torch System : Switch between torch heads or cables in seconds — no tools required
- Maximum steel cutting capacity: 25 mm
Service Information
What's Included
- Flexcut Pro FlexConnect Torch 7.5 m

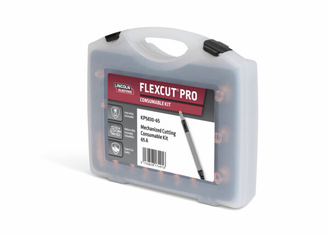

- Cutting Consumables KIT
- Ground Cable Assembly 7.5 m
- Gas connector
Documentation
You May Also Need
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 448 mm x 262 mm x 630 mm |
| Net Weight | 35.2 kg |
Technical Specifications
| Machines Processes | Plasma Gouging Plasma Cutting |
| Open Circuit Voltage | 320Vdc |
| Input Voltage | 230V/400V ± 15% |
| Input Current | 16A |
| Input Hertz | 50/60 Hz |
| Input Phase | 3Ph |
| Input Power | 230-400/3/50-60 Hz (+/-15%) |
| Mode Icon | CC |
| Output Range | 20A-65A |
| Polarity | DC |
Features
| Ingress Protection Rating | IP23 |
Plasma Cutting Specifications
| Plasma Machines Process | Cutting Gouging Marking |
| Torch Included | Yes |
| Torch Cooling | Air |
| Gas Pressure Required | 6.2 – 8.9 bar |
| Recommended Cutting Capacity (Mild Steel) (mm/M) | 19 |
| Maximum Cutting Thickness (Mild Steel) (mm/M) | 25 |
| Maximum Severance (Mild Steel) (mm/M) | 32 |
Warranty
| Warranty | 5 years |
