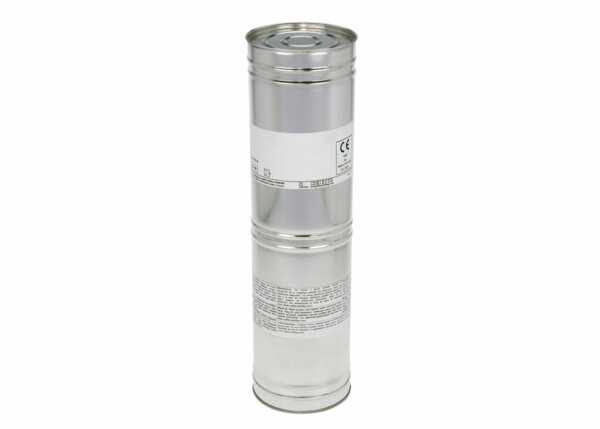

metal can

Diameters / Packaging

Diameters
 CAN 9.5 KG (APPROX. 158 PCS)
 CAN 9.5 KG (APPROX. 237 PCS)
 CAN 9.5 KG (APPROX. 355 PCS)
3.2x350 mm 627262
4.0x350 mm 627263
5.0x350 mm 627264

LINCOLN® 7010

Stick (SMAW)

CLASSIFICATIONS:
AWS A5.5 : E 7010-P1
EN ISO 2560-A : E 42 3 Mo C 21

Low-alloyed cellulosic electrode

Diameter

Select Diameter

  • 3.2x350 mm
  • 4.0x350 mm
  • 5.0x350 mm

Package

Select Package

  • CAN 9.5 KG (APPROX. 158 PCS)
  • CAN 9.5 KG (APPROX. 237 PCS)
  • CAN 9.5 KG (APPROX. 355 PCS)

DETAILS

LINCOLN 7010 is a cellulosic coated MMA electrode for welding large-diameter pipe lines in the vertical-down position known as "stove -piping". Used for root and hot passes as well as filling and capping up to X60 Grade pipe.

Features

  • Used for root and hot passes as well as filling and capping up to X60 grades
  • When root pass welding, negative polarity is recommended
  • Excellent weldability in all positions

Welding Positions

  • All positions
