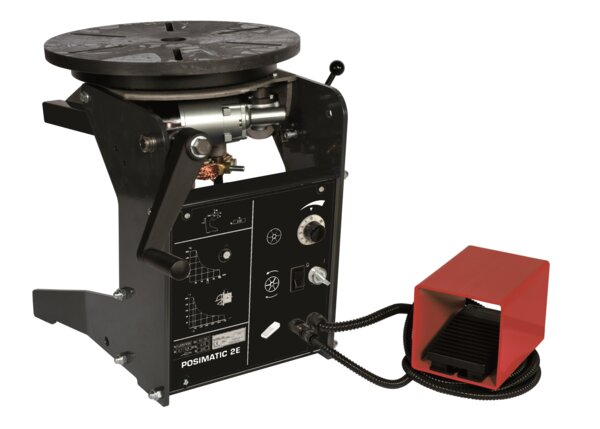

Positioner POSIMATIC 2E, 200 KG capacity
W000315256
Two axis positioner, 200 KG capacity
Model
Select Model
-
Positioner POSIMATIC 1E, 50 KG capacity
Two axis positioner, 50 KG capacity
W000315254
-
Positioner POSIMATIC 2E, 200 KG capacity
Two axis positioner, 200 KG capacity
W000315256
-
Positioner POSIMATIC PS03, 300 KG capacity
Two axis positioner, 300 KG capacity
W000385391
-
Positioner POSIMATIC PS08, 800 KG capacity
Two axis positioner, 800 KG capacity
W000385392
-
Positioner POSIMATIC PS15, 1500 KG capacity
Two axis positioner, 1500 KG capacity
W000385393
-
Positioner POSIMATIC PS30, 3000 KG capacity
Two axis positioner, 3000 KG capacity
W000385394
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
The POSIMATIC series offers a comprehensive range of handling solutions, supporting loads from 50 kg to 35 tonnes. Designed to accommodate components of all sizes, these systems significantly boost productivity, enhance operator ergonomics, and ensure consistent, high-quality results across your operations.
Features
- Enhanced Ergonomics: Designed to maximize operator comfort during use.
- Reduced Fatigue: Minimizes physical strain from repetitive handling.
- Optimal Working Posture: Promotes proper welder positioning to help prevent musculoskeletal disorders (MSDs).
- Increased Productivity: Streamlined operations lead to faster, more efficient work.
- Consistent Weld Quality: Ensures uniform and high-quality welding results.
- Load all positions : 200 Kg, Rotation speed : 0.25-5 Tr/min, Tilt Torque : 40 m.Kg, Rotation torque : 4m.Kg, Axis-plate distance : 0.070 m, Turntable height : 500 mm
Service Information
What's Included
- Foot pedal
