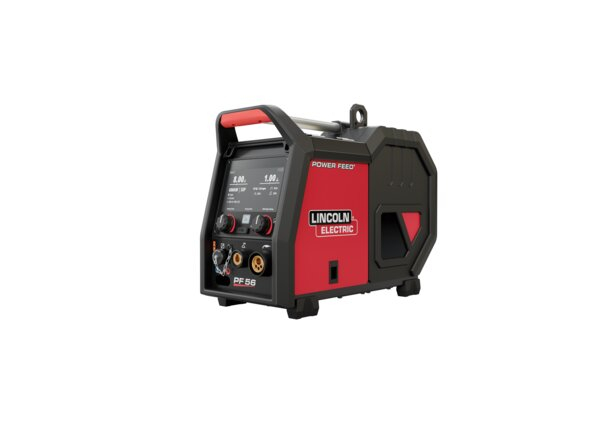

The image shown is for representation purposes only and may not reflect the actual product.
DETAILS
Power Feed® 56 wire feeder combines a compact, lightweight design with advanced wire feed technology to deliver greater productivity and welding consistency. Its optimized weight distribution improves ergonomics and handling, making it easier to move, position, and operate in any workspace. Engineered for advanced welding waveforms, the high-precision wire feeding system ensures smooth and accurate wire delivery for maximum arc stability. The result is repeatable welding performance, improved weld quality, and greater confidence in every weld.
Features
- Fully optimised, incredibly user-friendly interface
- Improved ergonomics and handling due to a more compact system design and optimized weight distribution
- High precision wire feed control for advanced waveforms
Service Information
Documentation
You May Also Need
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 460 mm x 245 mm x 600 mm |
| Net Weight | 17 kg |
Features
| Ingress Protection Rating | IP23 |
| Wire Feeder Supply Voltage | 40VDC |
Wire Feeding Specifications
| Number of driven rolls | 4 rolls |
| Feeder type | Portable |
| Configuration | Single |
| Max spool diameter | 300mm |
| Communication Technology | digital |
| Max Rated Output Capable | 500A |
| Max Wire Diameter (Solid) | 1.6 mm (1/16 in) |
| Max Wire Diameter (Cored) | 1.6 mm (1/16 in) |
| Wire Configuration | Single |
| Wire Feeders Processes | MIG MIG-STT Flux Cored |
Technical Specifications
| Input Voltage | 40V DC |
