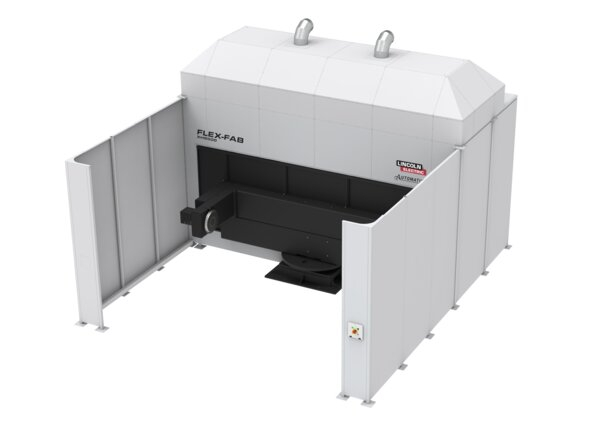

The image shown is for representation purposes only and may not reflect the actual product.
DETAILS
Designed for the high-mix, low volume manufacturing industry, the Flex-Fab XHS family of robotic welding systems provides businesses with a wide range of manufacturing capabilities and system flexibility.
Features
- Single load/unload access point
- Headstock/tailstock positioner in each zone
- Full welding capabilities with a small robot arm and system footprint
- Increases accuracy and repeatability
- Easily configurable for future production flexibility
- CE compliant
Service Information
What's Included
- Power Wave® R450 power source
- 4R220 AutoDrive® wire feeder
- Magnum® PRO robotic torch
- Torch maintenance unit
- Positionner
- FANUC 100iD/8L welding robot
- Robot basic software package
- Wire mesh panels with weld curtains
- Push button control
Specifications
Global Attributes
| System Type | Indexing Headstock Center-Mount |
| Industry/Application | High-mix, low-volume manufacturing |
| Overall Footprint Width in (mm) | 4485 |
| Overall Footprint Depth in (mm) | 6215 |
| Sweep in (mm) | 1250 |
| Span in (mm) | 2200 |
| Payload Per Zone lb (kg) | 500 |
| Panel Type | Wire Mesh/Curtain |
| Crane Access | Yes |
| Roll Up Door | No |
| Robot Programming Training Included | Yes |
| Sensor Interlocked Access Points | Yes |
| Flash Barrier Type | Fixed |
| Fanuc Compatability | Yes |
| ABB Compatability | No |
| Fume Extraction Equipment | Optional |
| Crown Mounted Robot | No |
| Robotic Torch Cleaning Station | Optional |
| Weld Gas Distribution Station | No |
| Weld Gas Flow Monitor | No |
| Pneumatic Distribution Station | No |
| Zero Friction Wire Delivery | No |
| Wire Detect Sensors | No |
| Customization Available | No |
Application
| Typical Application | Automotive General Fabrication |
