The image shown is for representation purposes only and may not reflect the actual product.

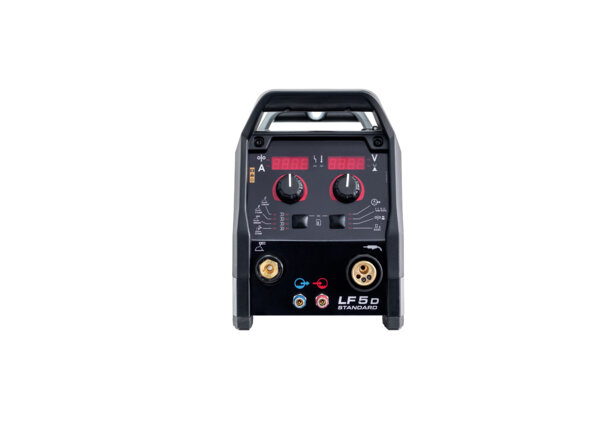

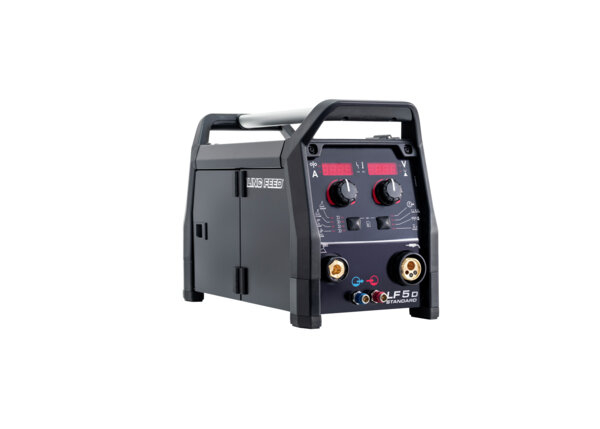

LF 5D Standard (Gas Flow Regulator)
K14410-2
Small compact portable wire feeder for Speedtec® and Powertec®-i power sources.
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
The small compact portable LF5D wire feeders range comes packed with advanced capabilities and is built for both field and shop environments. Featuring professional drive system, full controls and many features, the LF5D is ready for welding on almost any applications.
Features
- Rugged, Portable Design - Compact case design ideal for tight, harsh environments.
- Lightweight, dedicated for 200mm diameter spool.
- 2-rolls professional wire drive system.
- Easily access and control weld process parameters and optimize arc characteristics
- Internal Lighting - illuminates the wire drive to aid operators working in dark environments.
- Water or gas-cooled
- Plug and play simplicity – no external hardware required, flexible configuration
Service Information
What's Included
- Drive rolls for 1.0-1.2mm for Steel and Flux-cored wire
- user manual on USB.
You May Also Need
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 320 mm x 232 mm x 476 mm |
| Net Weight | 9.1 kg |
Features
| Ingress Protection Rating | IP23 |
| Machines Communication Technology | digital |
| Wire Feeder Supply Voltage | 40VDC |
| Amphenol Pins (type of connector) | 5 |
Wire Feeding Specifications
| Number of driven rolls | 4 rolls |
| Feeder type | Portable |
| Configuration | Single |
| Communication Technology | digital |
| Wire Feeders Processes | MIG Flux Cored |
Technical Specifications
| Input Voltage | 40V DC |
Application
| Typical Application | Construction Construction & Field Erection General Fabrication Maintenance & Repair Repair Welding Shipbuilding Structural Fabrication |
Warranty
| Warranty | 3 years |
