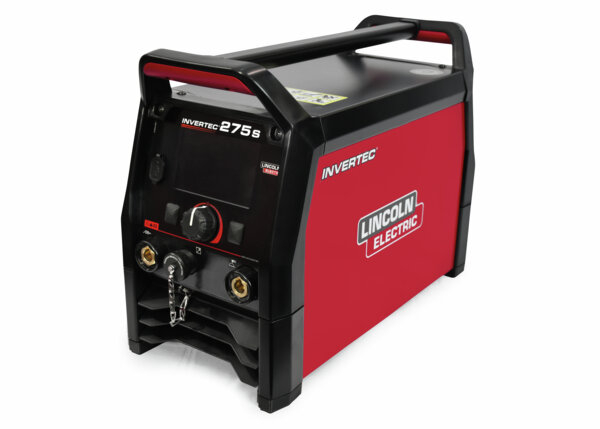

Invertec 275S stick welder

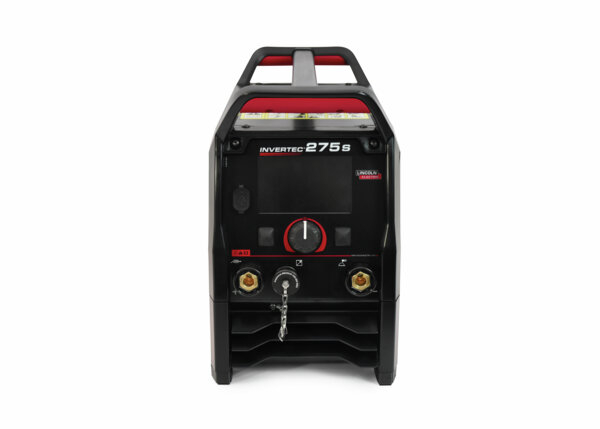

Invertec 275S front

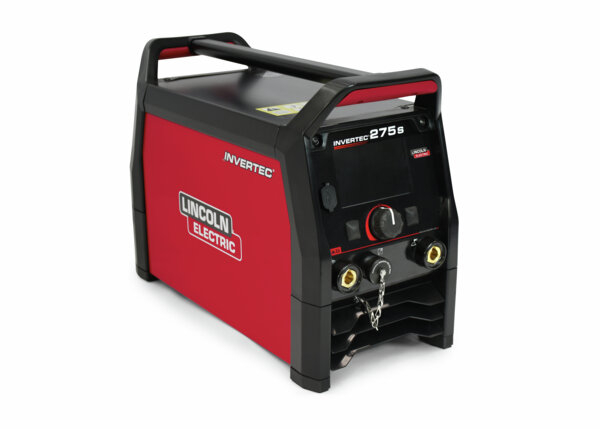

Invertec 275S right
The image shown is for representation purposes only and may not reflect the actual product.

Invertec® 275S

K14242-1

Portable inverter for Stick welding - 400V/3Ph - Output current: 270A@40%

Output

Output Output

Input

Input Input

DETAILS

The new INVERTEC® 275S is a next generation STICK inverter that offers excellent welding processes coupled with high performance, as well as increased productivity and is the next step in professional welding. The new INVERTEC® is designed with the latest energy-saving technology and is ready to work in the most difficult environments due to its unique design. To achieve excellent welding results, the INVERTEC 275S comes complete with in-built communication devices and digital transmission systems, such as USB's, allowing the operator to monitor and track welding operations more easily. Modular system: power sources 270A@25%, a 2-wheeled CART 24 of solid metal construction with superior mobility and transportation, for the most demanding environments.

Features

  • 400V ±15%, 3Ph 50/60Hz, generator ready
  • Light weight – only 14.3 kg
  • Idle power 19W and efficiency > 85%
  • SMAW manual and Synergic – Pulse
  • STICK Pulse: 0.5-15 Hz
  • Intelligent F.A.N. (Fan As Needed)
  • Customer Support
  • USB Key (software update, data collection)
  • Voltage Reduce Device (VRD)
  • Cellulosic 6010 stick capability

Service Information

What's Included

  • Input cable 3 m (no plug)
  • USB key with user manual
  • Quick Start papers

Documentation

You May Also Need

CART 24

Cart 24

K14191-1
Electrode holder CAIMAN

CAIMAN 400 A

W000010568
MMA KIT

KIT 50C50PLUS - 400A - 50mm² - 4m

W000260682
MMA KIT

KIT 35C50 - 300A - 35mm² - 4m

W000011139
ground cable

Welding cable 5 m with ground clamp 300A

GRD-300A-50-5M
Remote control

Remote control, 15m

K10095-1-15M
FOOT AMPTROL

Foot Amptrol™ - 7.6m (6 pin)

K870

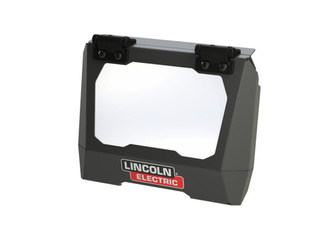

Control panel cover

Front cover

K14383-1

Specifications

Weights & Dimensions

Dimensions (H x W x D) 360 mm x 230 mm x 498 mm
Net Weight 14,3 kg

Technical Specifications

Machines Processes Stick (SMAW)
Open Circuit Voltage 70 Vdc
Input Voltage 400V ± 15%
Input Current 16A
Input Hertz 50/60 Hz
Input Phase 3 ph
Input Power 400/3/50-60 Hz (+/-15%)
Mode Icon CC
Output Range 5-270A
Polarity DC

Features

Ingress Protection Rating IP23

Application

Typical Application Construction
Railroad Maintenance
Cross Country Pipeline
Maintenance & Repair
Oil & Gas
Piping
Casting Repair
Shipbuilding
Structural Fabrication
Structural Welding

Warranty

Warranty 3 years
