The image shown is for representation purposes only and may not reflect the actual product.

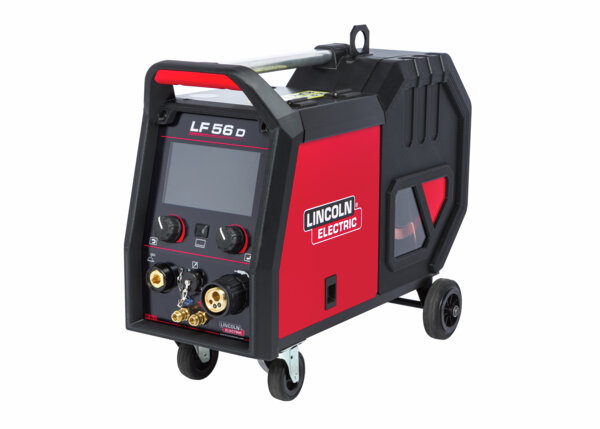

LF-56D
K14336-1
Digital wire feeder designed to work with Powertec iS & Speedtec power sources.
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
4-Roll Industrial Feeder. Designed for MIG and cored wire welding in job shop and manufacturing environments, these rugged wire feeders are built to deliver reliable performance day after day
Features
- Small, rugged and easy to handle feeders with bright digital meters.
- Digital communication protocol for welding, making it the best choice for seamless, time critical integration with the power source.
- Perfect feedability, four roll drive system with powerful motor.
- Optimized wire spool installation, inspection window and lifting eye.
- Equipped with wheels as standard.
- NEW features: Date&Calendar, Speaker and stronger encoders
Service Information
What's Included
- Drive roll kit 1.0-1.2mm for Steel
- User manual on USB
Documentation
You May Also Need
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 302 mm x 642 mm x 316 mm |
| Net Weight | 17.7 kg |
Features
| Ingress Protection Rating | IP23 |
| Data Technologies | Data Export Capable USB |
| Machines Communication Technology | digital |
| Wire Feeder Supply Voltage | 40VDC |
| Amphenol Pins (type of connector) | 5 |
Wire Feeding Specifications
| Number of driven rolls | 4 rolls |
| Feeder type | Portable |
| Configuration | Single |
| Max spool diameter | 300mm |
| Communication Technology | digital |
| Max Rated Output Capable | 500A |
| Max Wire Diameter (Solid) | 1.6 mm (1/16 in) |
| Max Wire Diameter (Cored) | 1.6 mm (1/16 in) |
| Wire Feeders Processes | MIG Flux Cored |
Technical Specifications
| Input Voltage | 40V DC |
Warranty
| Warranty | 3 years |
