FlexCut® 105
K14455-1
Plasma cutter - 400V/3Ph - Output current: 105A @60% - Maximum steel cutting capacity: 44 mm
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
The FlexCut 105 delivers reliable, high-duty-cycle performance built for demanding industrial environments. Advanced CNC integration includes built-in ports, automatic table detection, and machine torch compatibility for seamless automated cutting. With an industrial IP23-rated enclosure, reinforced components, and shock-resistant housing, it stands up to dust, water spray, and the rigors of daily use. Compatible with our FlexConnect™ Torch System, giving you the flexibility to switch between torch heads or cables in seconds.
Features
- 105 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
- High Duty Cycle: Built for demanding applications without overheating or slowing down.
- LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
- Plug-and-Play CNC Integration: Seamless integration with CNC tables with automatic table detection for fast, precise setup.
- Continuous Output : Maintains consistent performance during long cutting sessions and fast cutting on expanded metal.
- Industrial IP23 Protection : Resists dust and water spray for dependable performance in challenging conditions
- Multi-Process Capability : Drag Cutting, Grid Cutting, Mechanized, Extended, Precision Cutting, Gouging & Marking
- Patented FlexConnect™ Torch System : Switch between torch heads or cables in seconds — no tools required
- Maximum steel cutting capacity: 44 mm
Service Information
What's Included
- Flexcut Pro FlexConnect Torch 7.5 m

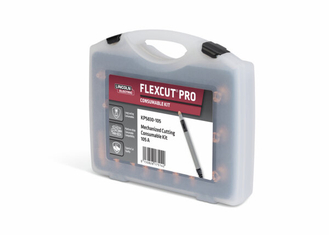

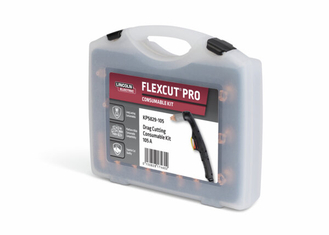

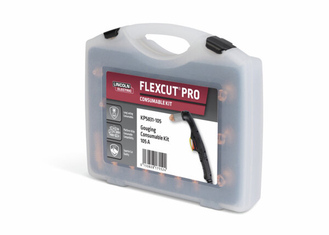

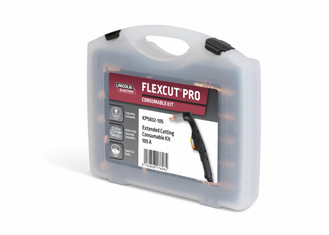

- Cutting Consumables KIT
- Ground Cable Assembly 7.5 m
- Gas connector
You May Also Need
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 476 mm x 293 mm x 691 mm |
| Net Weight | 41 kg |
Technical Specifications
| Machines Processes | Plasma Gouging Plasma Cutting |
| Open Circuit Voltage | 320Vdc |
| Input Voltage | 400V ± 15% |
| Input Current | 25A |
| Input Hertz | 50/60 Hz |
| Input Phase | 3Ph |
| Input Power | 400/3/50-60 Hz (+/-15%) |
| Mode Icon | CC |
| Output Range | 30A-105A |
| Polarity | DC |
Features
| Ingress Protection Rating | IP23 |
Plasma Cutting Specifications
| Plasma Machines Process | Cutting Gouging Marking |
| Torch Included | Yes |
| Torch Cooling | Air |
| Gas Pressure Required | 6.2 – 8.9 bar |
| Recommended Cutting Capacity (Mild Steel) (mm/M) | 32 |
| Maximum Cutting Thickness (Mild Steel) (mm/M) | 38 |
| Maximum Severance (Mild Steel) (mm/M) | 51 |
Warranty
| Warranty | 5 years |
