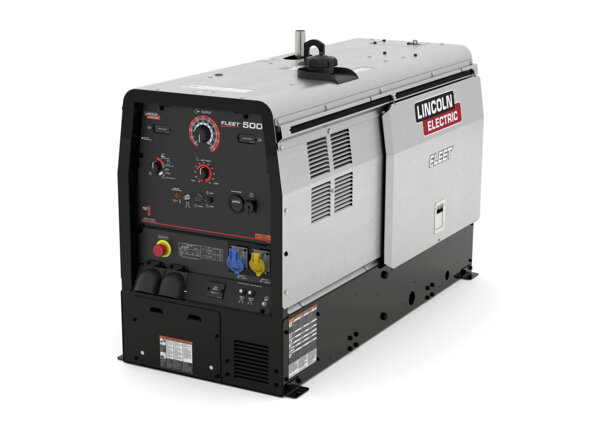

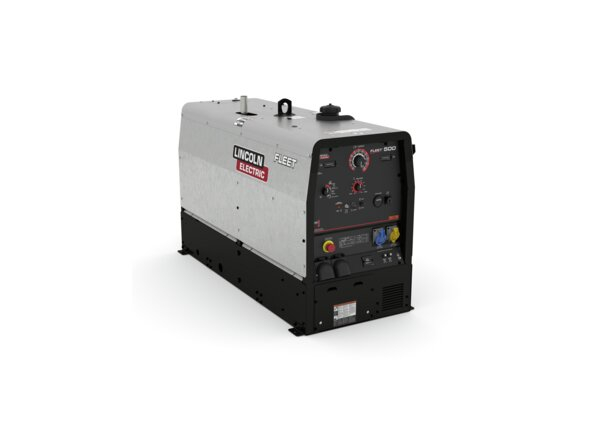

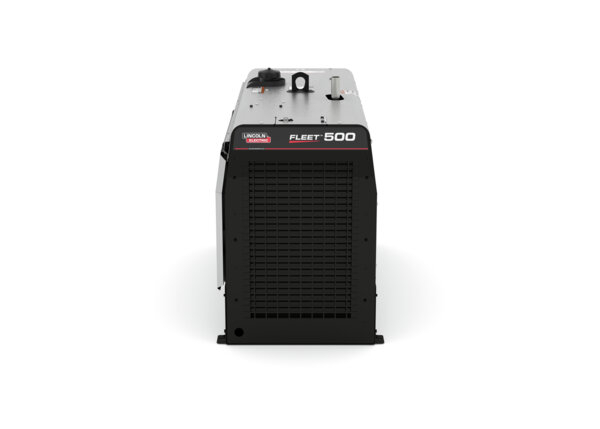

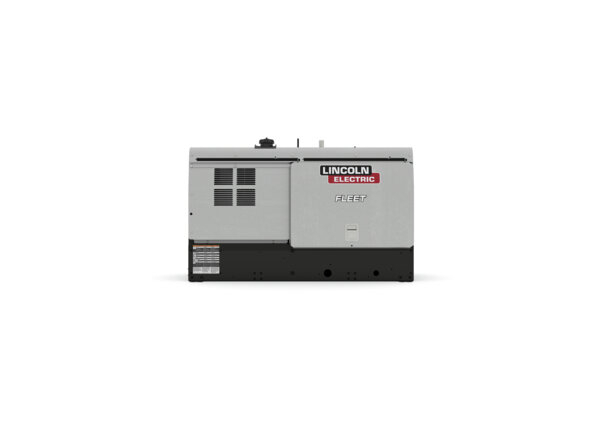

The image shown is for representation purposes only and may not reflect the actual product.
Fleet™ 500 (Perkins®) - Export only
K4338-2
A low speed, diesel engine-driven welder/generator capable of 500 amps of DC output for constant current (CC) welding and 120/240 VAC single phase auxiliary power. The machine features patented Chopper Technology®
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
Built for operation in remote locations, the Fleet™ 500 is a simple, rugged diesel engine-driven welders for stick welding, TIG, and arc gouging. The design features time tested technology and a field-proven Kubota® diesel engine. This means high reliability in jungles, deserts, and other extreme environments.
Features
- Easy to Set – Quickly select between Pipe, Stick, TIG, and Gouge with one simple welding mode selection switch. Operators can then made a fine adjustment with output control and utilize Arc Force control to adjust for a soft buttery arc or a more forceful, digging arc.
- Dependable – Proven and patented Chopper Technology delivers easy arc starting, smooth arc action, low spatter levels, and excellent bead appearance.
- Plenty of Auxiliary Power – More than 5000 watts of continuous single phase 120/240V power.
- Digital Weld Meters – Available as an optional accessory to provide supervision with an extra measure of quality control.
Service Information
What's Included
- Machine Only
Documentation
You May Also Need
Specifications
Weights & Dimensions
| Dimensions (H x W x D) | 913 mm x 642 mm x 1524 mm (35.9 in x 25.3 in x 60 in) |
| Net Weight | 559 kg (1230 lbs) |
Technical Specifications
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) |
| Open Circuit Voltage | 60 Volts |
Features
| Ingress Protection Rating | IP23 |
| IEC Rating | 400A / 36V / 100% |
| Output Range by Mode | Stick (SMAW): 30 – 500 Amps Pipe (SMAW): 30 - 300 Amps DC TIG (GTAW): 20 – 250 Amps Gouge (CAC-A): 90 – 450 Amps |
Engine Drive Specifications
| Single Phase Auxiliary Output | 5025 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | IEC 60309 Yellow 2P+Ground IEC 60309 Blue 2P+Ground |
| Engine Brand & Model | Perkins® 404D-22 |
| Engine Description | 4 Cylinder Naturally Aspirated Water Cooled Diesel Engine |
| Engine Horsepower | 32.7 hp |
| Engine Block Size & Displacement | 135.6 cu. in. (2.2 L) Bore x Stroke - 3.43 in x 3.64 in (87.1 mm x 92.5 mm) |
| Emissions Rating | US EPA Tier 4i |
| High Idle Operating Speed @ Rated Output | 1800 |
| Fuel Tank Size (US gal.) | 20 |
| Fuel Tank Size (L) | 75.7 |
| Oil Capacity (qts.) | 8.45 |
| Oil Capacity (L) | 8 |
| Coolant Capacity (US gal.) | 2 |
| Coolant Capacity (L) | 7.6 |
Application
| Typical Application | Construction Mining Construction & Field Erection Heavy Fabrication Maintenance & Repair Oil & Gas Power Generation Structural Fabrication Structural Welding |
Warranty
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
