DETAILS

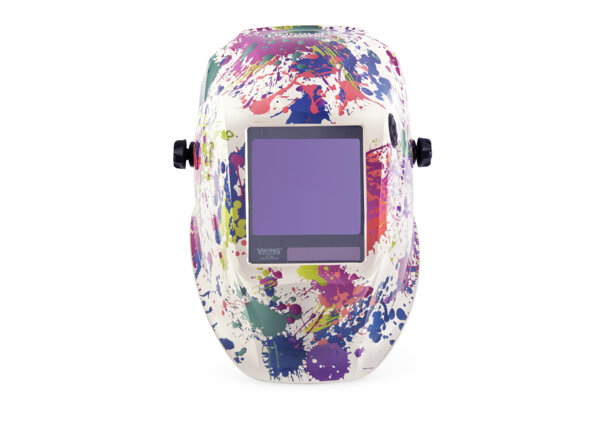

The VIKING 3350, our top-of-the line helmet series, is the ultimate blend of optics, comfort & versatility. This helmet includes our exclusive 4C lens technology and 1/1/1/1 optical clarity for industry leading optics and provides an expanded variable 5-13 shade range, low profile external grind control, and large 12.5 sq. in. viewing area. The innovative X6 Headgear™ distributes weight, reduces pressure and optimizes balance.
Features
- 4C® Lens Technology - Our proprietary liquid crystal display (LCD) enhances the visible color spectrum of the display. Unlike traditional auto-darkening filters, 4C® lens technology broadens the color range & hues which can be seen in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
- 1/1/1/1 Optical Clarity - Eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.
- X6 Headgear - Features an adjustable and firm-fitting top head supports, rotatable front headband, strategically positioned rear headband, an orientation adjustment pin, and easy to use forward and backward adjustments to distribute weight, reduce pressure and optimize balance.
- Variable 5-13 shade range and low profile, external grind control provides an expanded versatility and consistent indoor & outdoor performance.
- External low profile grind control that makes switching between weld and grind modes easy, which increases productivity, prevents accidental activation and provides enhanced application versatility.
- 12.5 sq. inch (3.74 x 3.34 in.) wide viewing area
- Replaceable CR2450 batteries ensure increased battery life.
- Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.
Service Information
What's Included
- (1) Welding Helmet
- (1) Helmet Bag
- (1) Bandana
- (5) KP2898-1 Outside Cover Lenses
- (2) KP3044-1 Inside Cover Lenses
- (1) Decal Sheet
Documentation
You May Also Need
Specifications
Welding Helmets
| Welding Helmets Product Types | Auto-Darkening |
| Welding Helmets Compliance | ANSI Z87.1 |
| Welding Helmets Product Series | VIKING 3350 Series |
| Welding Helmets Shell Type | Graphic |
| Welding Helmets ADF Viewing Area | 3.74 x 3.34 in (95 x 85 mm) |
| Welding Helmets Control Type | Analog |
| Welding Helmets External Controls | Grind Button |
| Welding Helmets Headgear Type | X6 Headgear |
| Welding Helmets Weight | 22 oz. (595 g) |
| Welding Helmets Auto Darkening | Yes |
| Welding Helmets Cartridge Size | 4.5 x 5.25 in (114 x 133 mm) |
| Welding Helmets Cheater Lens Compatible | Yes |
| Welding Helmets Cut Mode | Yes |
| Welding Helmets Flip Up Lens | No |
| Welding Helmets Grind Mode | Yes |
| Welding Helmets Hard Hat Capable | Yes |
| Welding Helmets Helmet Material | Nylon |
| Welding Helmets Lens Shade Rating | 5 - 13 |
| Welding Helmets Light to Dark Switch Time | 1/25,000 s |
| Welding Helmets Magnifying Lens Holder | Yes |
| Welding Helmets Manufacturer Color/Finish | Creative Spark |
| Welding Helmets Number of Sensors | 4 |
| Welding Helmets Power Supply | (1) CR 2450 Battery with Solar Assist |
| Welding Helmets Quick Adjust Ratchet | Yes |
| Welding Helmets TIG Rating | AC/DC: ≥ 2 Amp |
Replacement Parts
| Cover Lenses | KP2898-1 Outside Cover Lens KP3044-1 Inside Cover Lens S27978-32 Gasket - Outside Cover Lens Seal KP4628-1 Bulk Outside Cover Lens – 3350 & 2450 Series |
| Sweatband & Headgear | KP2930-1 Sweatband - Super Soft Knit Cotton KP4541-1 Soft Cotton Back Pad for X6 Headgear KP4470-1 X6 Headgear K3908-1 Pivot Headgear K4100-1 Traditional Headgear |
| Hard Hat Adapters | KP3047-1 Hard Hat Adapter - Halo Style KP3486-1 Hard Hat Adapter - Slotted Style |
| Cheater Lenses | KP3046-XXX Magnifying Cheater Lenses - 1.00 MAG - 2.50 MAG |
| Auto-Darkening Filter & Parts | KP3045-4 ADF Cartridge - 3350 (4th Gen.) Series KP4562-1 Grind Button Assembly KP4491-1 CR 2450 Battery S27978-33 ADF Cartridge Holder |
| Replacement Shells | KP4560-1 VIKING 3350/2450 Glossy Black Replacement Shell KP4561-1 VIKING 3350/2450 Matte Black Replacement Shell |
Application
| Typical Application | Heavy Equipment Heavy Fabrication Maintenance & Repair Shipbuilding Structural Fabrication Structural Welding |
Warranty
| Warranty | 5 Years |
