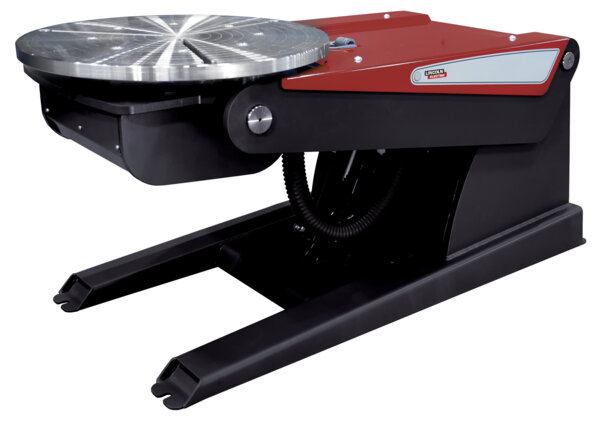

POSIMATIC APSi PRO Positioners
Three-axis programmable positioners for extra-heavy work (750-35000 KG)
Model
Select Model
-
Positioner POSIMATIC APSi PRO, 750 KG capacity
Three-axis positioner, programmable, 750 KG load capacity
AS-PM-T0210021
-
Positioner POSIMATIC APSi PRO, 1500 KG capacity
Three-axis positioner, programmable, 1500 KG load capacity
AS-PM-T0210022
-
Positioner POSIMATIC APSi PRO, 3500 KG capacity
Three-axis positioner, programmable, 3500 KG load capacity
AS-PM-T0210023
-
Positioner POSIMATIC APSi PRO, 7000 KG capacity
Three-axis positioner, programmable, 7000 KG load capacity
AS-PM-T0210024
-
Positioner POSIMATIC APSi PRO, 10000 KG capacity
Three-axis positioner, programmable, 10000 KG load capacity
AS-PM-T0210025
-
Positioner POSIMATIC APSi PRO, 15000 KG capacity
Three-axis positioner, programmable, 15000 KG load capacity
AS-PM-T0210026
-
Positioner POSIMATIC APSi PRO, 25000 KG capacity
Three-axis positioner, programmable, 25000 KG load capacity
AS-PM-T0210027
-
Positioner POSIMATIC APSi PRO, 35000 KG capacity
Three-axis positioner, programmable, 35000 KG load capacity
AS-PM-T0210028
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
The POSIMATIC APSi PRO positioners are designed to handle parts of various shapes, enabling precise and efficient positioning for operations such as welding, flame cutting, hard facing, and metallization. These tasks can be performed with optimal ergonomics, improving both safety and productivity. The integrated table elevation feature offers enhanced flexibility, allowing for precise adjustment of the workpiece position. All functions of the APSi PRO are intuitively managed through an intelligent touchscreen control system.
Features
- Compact Design with Extended Range: Offers large movement capabilities.
- Precision Hydraulic 3-Axis Control: Ensures accurate and smooth positioning across all axis.
- Wired Remote Control: Provides convenient and reliable access to all machine functions.
- Digital RPM Display: Enables precise monitoring and control of rotational speed.
- Integrated Safety Valves: Enhances operational safety by protecting the hydraulic system from overpressure.
- Self-Locking Gears: Maintains stable positioning without drift, even under load.
