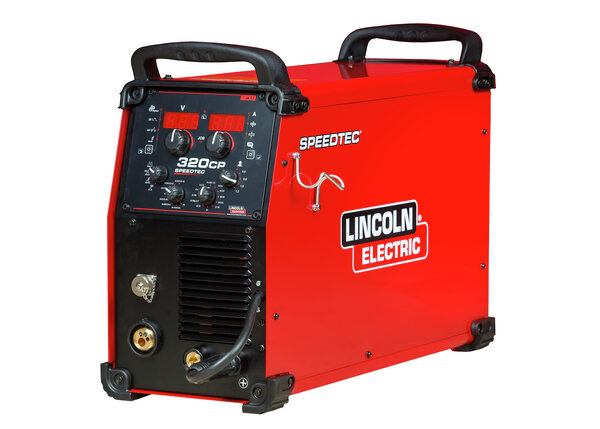

SPEEDTEC® 320CP

K14168-1

Multiprocess compact welder - 400V/3Ph - Output current: 320A@40%

Output

Output Output

Input

Input Input

Model

Select Model

  • SPEEDTEC-320CP

    SPEEDTEC-320CP

    Multiprocess compact welder - 400V/3Ph - Output current: 320A@40%

    K14168-1

DETAILS

Robust and reliable, multi-process, compact, industrial inverter with Pulse mode. SPEEDTEC 320CP utilizes the very latest power source technology for efficiency and lower energy consumption. A lot of options are available to make the welder tasks easier. A wide range of synergic programs are available as standard allowing simple yet precise control of welding parameters for the best results every time.

Features

  • User-friendly control panel: easy settings and process selection.
  • Technological advance: 99 programs that can be used with the trigger, welding cycle sequencer.
  • Ready for the heaviest industrial conditions: developed and tested under the hardest conditions to guarantee the reliability you need.
  • Synergic mode – more than 99 synergic programs are available for precise control of welding parameters.
  • Modular concept to meet all users' requirements

Service Information

What's Included

  • Input cable (5m)
  • Work clamp and cable assembly (5m)
  • Gas hose (2m)
  • Wire spool adapter (300 mm)
  • Instruction manual

You May Also Need

LINCGUN® PROMIG™ 300

LINCGUN® PROMIG™ 300 - Air cooled - 3m

W000345066-2
LINCGUN® PROMIG™ 300

LINCGUN® PROMIG™ 300 - Air cooled - 4m

W000345067-2
LINCGUN® PROMIG™ 400W

LINCGUN® PROMIG™ 400W - Water cooled - 3m

W000345069-2
LINCGUN® PROMIG™ 400W

LINCGUN® PROMIG™ 400W - Water cooled - 4m

W000345070-2
LINCGUN® PROMIG™ 400

LINCGUN® PROMIG™ 400 - Air cooled - 3m

W000345072-2
LINCGUN® PROMIG™ 400

LINCGUN® PROMIG™ 400 - Air cooled - 4m

W000345073-2
LINCGUN® PROMIG™ 500

LINCGUN® PROMIG™ 500W - Water cooled - 3m

W000345075-2
LINCGUN® PROMIG™ 500

LINCGUN® PROMIG™ 500W - Water cooled - 4m

W000345076-2

Specifications

Weights & Dimensions

Dimensions (H x W x D) 534 mm x 335 mm x 743 mm
Net Weight 37 kg

Technical Specifications

Machines Processes Pulsed MIG (GMAW-P)
Open Circuit Voltage 74V
Input Voltage 400V
Input Current 20A
Input Hertz 50/60 Hz
Input Phase 3 ph
Input Power 400V/3/50-60 Hz (±15%)
Mode Icon CC/CV
Output Range 15-320A
Polarity DC

Application

Typical Application Construction
General Fabrication
Heavy Equipment
Heavy Fabrication
Maintenance & Repair
Power Generation
Railcar Fabrication
Railing Industry
Shipbuilding
Structural Fabrication

Warranty

Warranty 3 years
