DETAILS

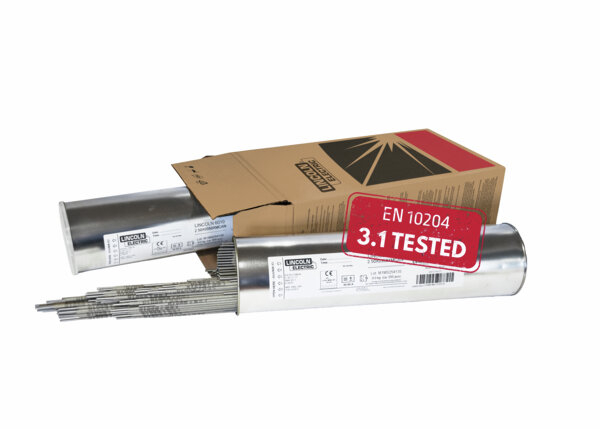

Lincoln 6010 is a cellulosic coated MMA electrode for welding large-diameter pipe lines in the vertical-down position known as "stove -piping". Used for root and hot passes as well as filling and capping up to X52 grade pipe. Also used for root passes on higher-strength pipe steels, up to X 80.
Features
- Used for root and hot passes as well as filling and capping up to X52 Grades
- Also used for root passes on higher-strength pipe steels, up to X80
- When root pass welding, negative polarity is recommended
- Excellent weldability in all positions
Welding Positions
- All positions
Service Information
Documentation
BEFORE USE, READ AND UNDERSTAND THE SAFETY DATA SHEET (SDS) FOR THIS PRODUCT AND SPECIFIC INFORMATION PRINTED ON THE PRODUCT CONTAINER. SDS Search page
CONFORMANCE
| CONFORMANCES | SPECIFICATION | CLASSIFICATION |
|---|---|---|
| AWS | AWS A5.1 | E6010 |
MECHANICAL PROPERTIES
| Classification |
Yield Strength @ 0.2% Offset
MPa (ksi) |
Tensile Strength
MPa (ksi) |
Elongation
% |
Charpy V-Notch
J (ft-lbs) @ -30°C (-20°F) |
|---|---|---|---|---|
| E6010 Requirement | 330 (48) min. | 410 (60) min. | 22 min. | 27 (20) min. |
| Typical Result, As-welded | 460-500 (66-73) | 520-570 (75-82) | 25-28 | 64-81 (47-60) |
DEPOSIT COMPOSITION
| Classification | %C | %Cr | %Mn | %Mo | %Ni | %Si | %V |
|---|---|---|---|---|---|---|---|
| E6010 Requirement | 0.20 max. | 0.20 max. | 1.20 max. | 0.30 max. | 0.30 max. | 1.00 max. | 0.08 max. |
| Typical Result | 0.09-0.15 | 0.04 max. | 0.28-0.52 | 0.01 max. | 0.02-0.03 | 0.20 | 0.01 |
TYPICAL OPERATING PROCEDURES
| Diameter | Polarity |
Current
Amps |
|---|---|---|
| 5/32" (4.0 mm) | DC+ | 135-155 |
| 4.8 mm (3/16") | DC+ | 145-165 |
