The image shown is for representation purposes only and may not reflect the actual product.
Detalles

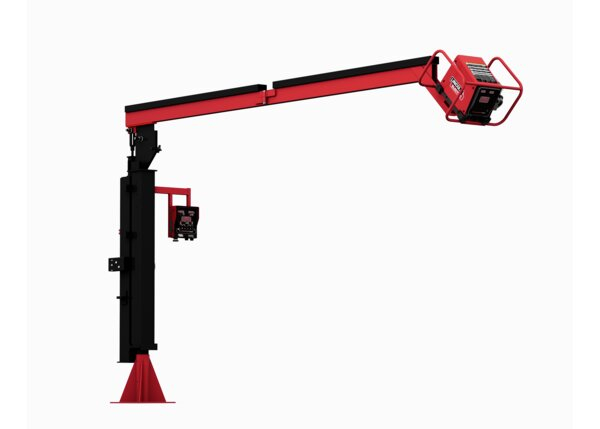

Improve operator comfort, productivity, and safety with the Power Feed 84 Single Boom Ready-Pak System. These boom systems will help increase operator mobility around their work area while streamlining cable routes for improved workspace safety.
Características
- 12 ft. swing arm with 360° radius extends work area mobility
- Spring balanced arm holds the feeder in place for easy up/down arm adjustments

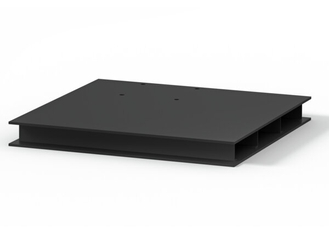

- Optional pallet base allows arm to be easily moved for additional mobility
- Compatible with spools, coils, or bulk wire delivery systems
- Streamlined cable routing helps maintain an organized work area
- Portable user interface control box can be easily mounted away from the arm and reduces trips back to the power source for process adjustments
- Paired with the Power Feed 84 Advanced Process Wire Feeder - delivering intelligent process control and field-proven reliability
Servicio de información
Qué está incluido
- (1) Complete Zipline Boom Column-Arm-Pedestal
- (1) K3328-1 Power Feed® 84 Single Boom Feeder (Drive Rolls sold separately)
- (1) K3336-2 Control Box
- (1) K4062-1 Gas Hose – 28 ft.
- (1) K4483-25 Extended-Flex Arclink Cable - 25 ft.
- (1) K1842-35 Weld Power Cable – 3/0 2 Lug 35 ft.
- (1) K4063-2 Polymer Weld Wire Conduit – 15.5 ft.
- (1) K1543-8 Control Cable – 8 ft.
- (1) K5104-12 Bulk Head Connector Kit
- (1) Wire Spindle Assembly
-
- 12 ft Zipline Boom - Single | K3256-1-12S
- Bulkhead Connector Kit | K5104-12
- Weld Power Cable - Lug to Lug (3/0, 600A, 60%) - 35 ft (10.6 m) | K1842-35
- Ext-Flex ArcLink® (5-Pin) Control Cable - 25ft (7.6m) | K4483-25
- Power Feed® 84 - Modelo Boom, NO U/I | K3328-1
- Caja de control simple o doble Power Feed® 84, U/I | K3336-2
También puede necesitar
Especificaciones
Pesos y dimensiones del producto
| Altura del producto (pulgadas) | 88.25 |
| Altura del producto (mm) | 2242 |
| Ancho del producto (pulgadas) | 166 |
| Ancho del producto (mm) | 4216 |
| Peso del producto (libras) | 500 |
| Peso del producto (kg) | 227 |
Alimentadores de Alambre
| Número de rodillos impulsados | 4 rolls |
| Tipo de alimentador | Boom |
| Configuración | Single |
| Configuración del cabezal de alimentación | Single |
Aplicaciones
| Aplicación Típica | Fabricación General Equipamiento Pesado Fabricación Pesada |
Garantía
| Garantía | 5 Year (Power Feed® 84), 1 Year (Zipline Boom Assembly) |
