LINC TORCH FX – TIG Fume Extraction Torches for Clean, Safe Welding

LINC TORCH FX – Advanced Fume Extraction for TIG

High-efficiency TIG fume torches designed for safety, comfort, and performance—capture fumes right at the source.

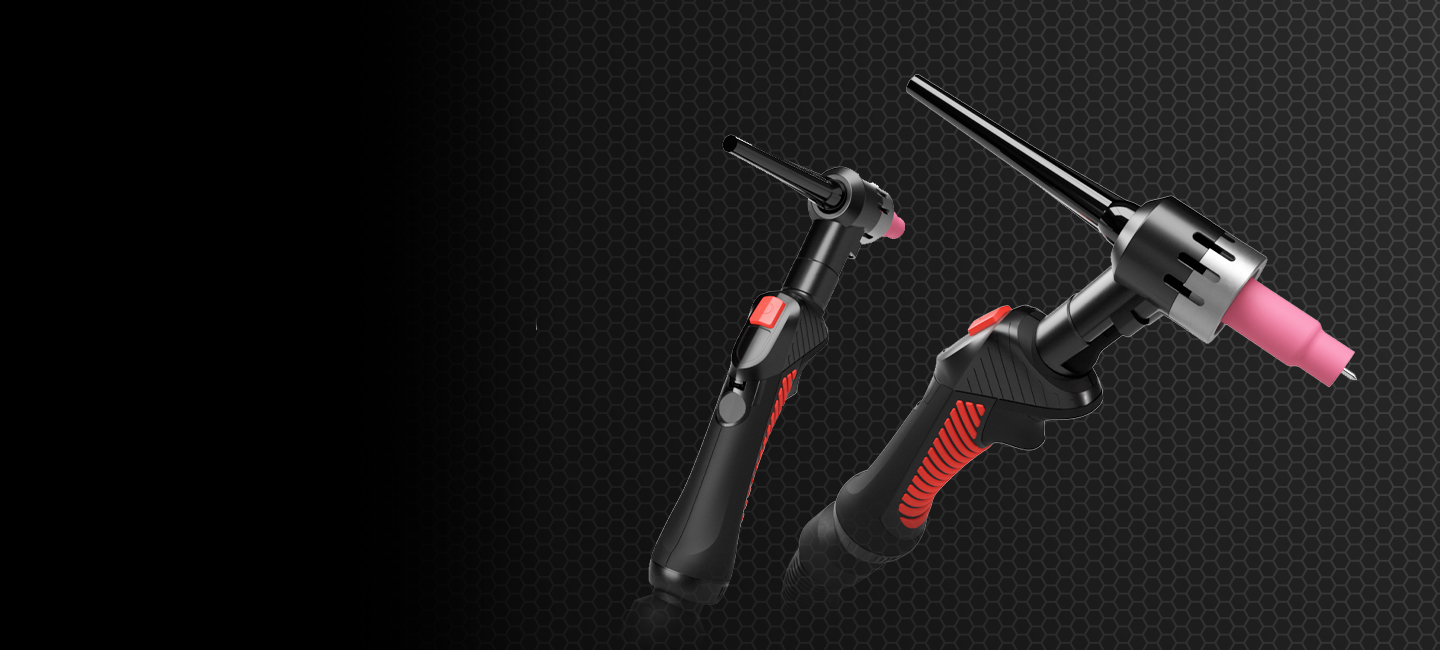

LINC TORCH FX TIG Fume Extraction Torches

The LINC TORCH FX TIG fume extraction torch range represents a technological advance in the field of the extraction of fume and particles at source during TIG welding processes. The LINC TORCH FX torch offers protection to welders and their environment in the workshop from harmful weld fumes and toxic particles such as manganese, nickel, chromium, cadmium and beryllium oxides, which are released during welding.

Features:
- Capture at source - fume extraction by the torch body.
- Depending on the amperage, the effectiveness of the capture of weld fumes and toxic particles will reach 95%.
- Available in air-cooled and water-cooled versions.
- Bundle length 4 or 8 metres.
- Swivel handle.
- Very good handling by the operator thanks to its ergonomic design.
- Extraction nozzle with aluminium radiation protection screen, replaceable parts.
- Comfortable switching modules.
- Very soft and flexible extraction hose.
- Connection to extraction: Ø 38 mm hose.
- 13 mm quarter-turn connector.
- PCB module protected from HF and soiling by a protective plate.
- Wearing parts compatible with the most common standard in Europe.
