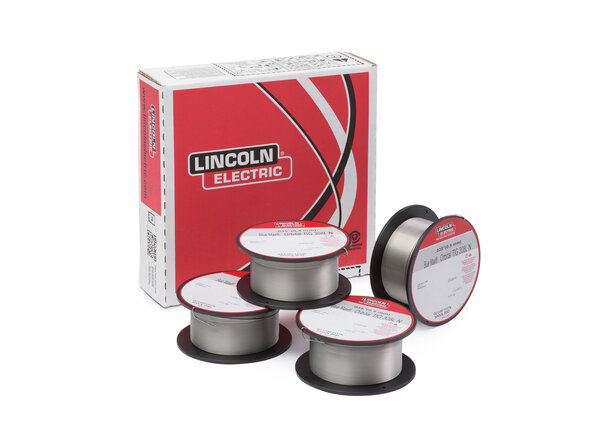

Blue Max Stainless Orbital TIG Electrode
The image shown is for representation purposes only and may not reflect the actual product.

Diameters / Packaging

Diameters
 2 lb (0.9 kg) PLW Plastic Spool
 10 lb (4.5 kg) PLW Plastic Spool
0.035 in ED034155
0.035 in (0.9 mm) ED034153

Blue Max® Orbital 308L TIG (GTAW) Wire

MIG (GMAW) | ED034153

CLASSIFICATIONS:
AWS A5.9 : ER308
AWS A5.9 : ER308L

BLUE MAX® ORBITAL TIG 308/308L offers ultra-clean wire for orbital 304 stainless TIG applications

Diameter

Select Diameter

  • 0.035 in
  • 0.035 in (0.9 mm)

Package

Select Package

  • 2 lb (0.9 kg) PLW Plastic Spool

DETAILS

BLUE MAX® ORBITAL TIG 308/308L designed for porosity free orbital welding on 304 grade stainless base materials

Features

  • Q2 Lot® - Certified Material Test Report showing actual wire composition, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
  • Ultra-clean wire for porosity free welds
  • Batch Managed Inventory

Service Information

BEFORE USE, READ AND UNDERSTAND THE SAFETY DATA SHEET (SDS) FOR THIS PRODUCT AND SPECIFIC INFORMATION PRINTED ON THE PRODUCT CONTAINER. SDS Search page

CONFORMANCE

CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.9 ER308L

WIRE COMPOSITION

Classification %C %Cr %Cu %Mn %Mo %N %Nb %Ni %P %S %Si Ferrite Number (Delong ©) Ferrite Number (WRC-1992 ©)
ER308L Requirement 0.03 max. 19.5 - 22.0 0.75 max. 1.0 - 2.5 0.75 max. 9.0 - 11.0 0.03 max. 0.03 max. 0.30 - 0.65
Typical Result 0.02 20.2 0.25 1.9 0.06 0.05 0.00 max. 10.1 0.02 0.003 max. 0.34 10 10
