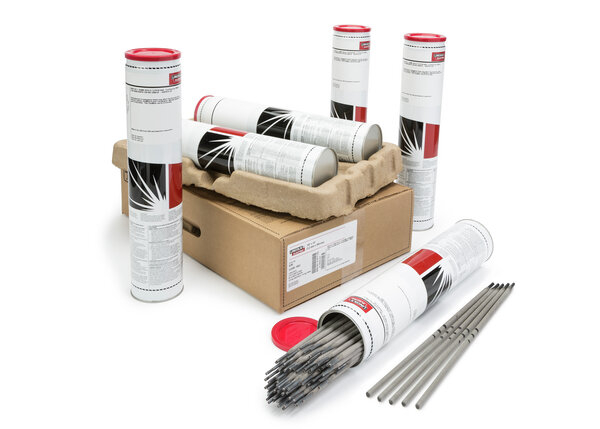

10 lb cans of Pipeliner LH-D stick electrode
The image shown is for representation purposes only and may not reflect the actual product.

Diameters / Packaging

Diameters
 (3) 10 lb Easy Open Can
 4.5 KG can
1/8 x 14 in (3.2 x 350 mm) ED032626
4.0x350 mm ED032627
4.5x350 mm ED032628

Pipeliner® LH-D80 Stick Electrode (SMAW)

Stick (SMAW) | ED032626

CLASSIFICATIONS:
E8045-P2 H4R

Low Alloy, Low Hydrogen, Pipe • AWS E8045-P2 H4R

Diameter

Select Diameter

  • 1/8 x 14 in (3.2 x 350 mm)
  • 4.0x350 mm
  • 4.5x350 mm

Package

Select Package

  • (3) 10 lb Easy Open Can

DETAILS

Low alloy, low hydrogen stick electrode designed for vertical down fill and cap pass welding of up to X70 grade pipe

Features

  • Q2 Lot® - Control and Tested - Lot certificate available online
  • Durable coating
  • NACE MR0175 compliant for sour gas applications
  • 80% higher productivity over traditional vertical-up pipe welding

Service Information

Documentation

You May Also Need

10 lb cans of Pipeliner LH-D stick electrode

PIPELINER® LH-D80

ED032627
10 lb cans of Pipeliner LH-D stick electrode

Pipeliner® LH-D80 Stick Electrode (SMAW)

ED032628
10 lb cans of Pipeliner LH-D stick electrode

Pipeliner® LH-D90 Stick Electrode (SMAW)

ED032629
K2394-1-Stick Electrode Holder & Cable Assembly Kit

Stick Electrode Holder and Cable Assembly (Twist Mate™)

K2394-1
K875 Accessory Kit

Accessory Kit - 150 Amp

K875
Heavy Duty Leather Welding Jacket

Heavy Duty Leather Welding Jacket - Large

K2989-L

BEFORE USE, READ AND UNDERSTAND THE SAFETY DATA SHEET (SDS) FOR THIS PRODUCT AND SPECIFIC INFORMATION PRINTED ON THE PRODUCT CONTAINER. SDS Search page

CONFORMANCE

CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.5 E8045-P2 H4R
AllByProd NACE NACE Applications
ABS AWS A5.5 E8045-P2 H4R
CWB CWB AWS A5.5 E5545-P2-H4R (E8045-P2-H4R)

MECHANICAL PROPERTIES

Classification Yield Strength @ 0.2% Offset
MPa (ksi) 		Tensile Strength
MPa (ksi) 		Elongation
% 		Charpy V-Notch
J (ft-lbs) @ -30°C (-20°F) 		Charpy V-Notch
J (ft-lbs) @ -40°C (-40°F) 		Hardness Rockwell B
E8045-P2 H4R Requirement 460 (67) min. 550 (80) min. 19 min. 27 (20) min.
Typical Result, As-welded 470-530 (68-76) 560-590 (81-85) 26-30 54-163 (40-120) 27-147 (20-108) 88-91

DEPOSIT COMPOSITION

Classification %B %C %Cr %Mn %Mo %Ni %P %S %Si %V Diffusible Hydrogen
mL/100g Weld Metal 		1800F H2O - As received 1800F H2O - After 9 hrs at 80F/80%RH
E8045-P2 H4R Requirement 0.12 max. 0.20 max. 0.90 - 1.70 0.50 max. 1.00 max. 0.03 max. 0.03 max. 0.80 max. 0.05 max. 4 max. 0.2 max. 0.4 max.
Typical Result 0.005-0.008 0.04-0.06 0.03-0.05 1.14-1.54 0.02 max. 0.01-0.03 0.01 0.01 max. 0.43-0.60 0.01 2-4 0.1 max. 0.4 max.

TYPICAL OPERATING PROCEDURES

Diameter Polarity Current
Amps
3.2 mm (1/8 in) DC+ 120-170
4.0 mm (5/32 in) DC+ 170-250
4.5 mm (11/64 in) DC+ 200-300

NOTES

Note
NOTE: This product contains micro-alloying elements. Additional information available on request.
