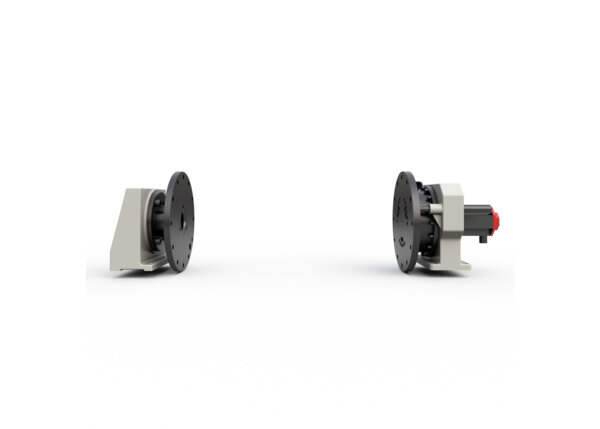

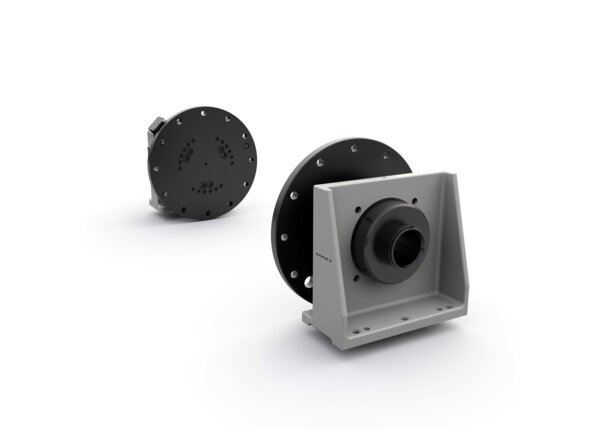

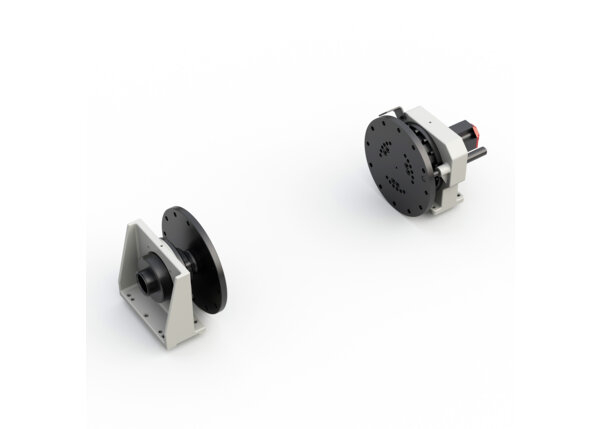

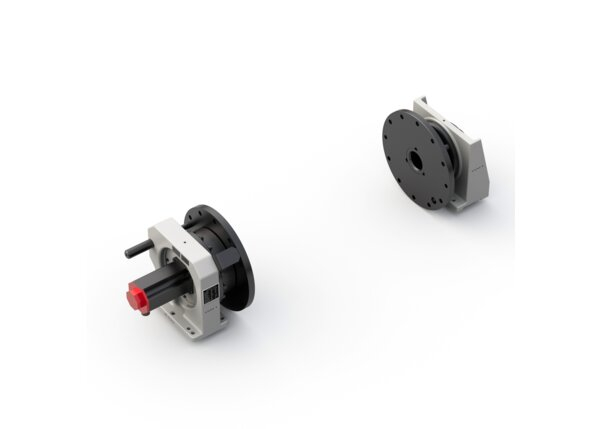

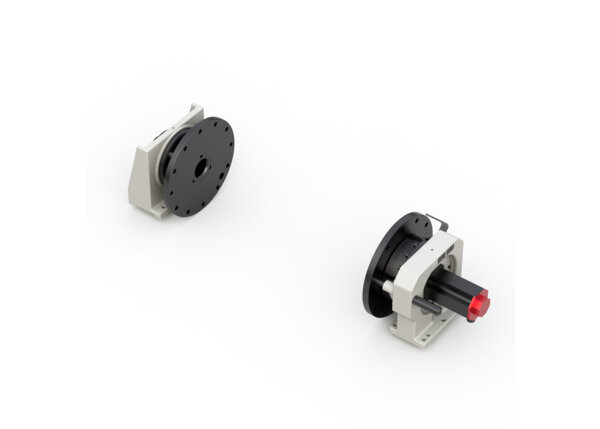

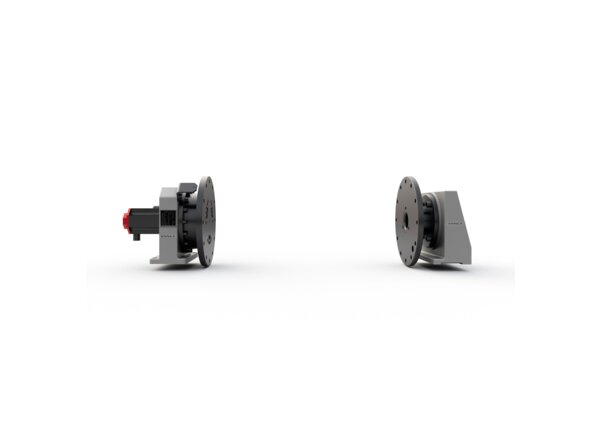

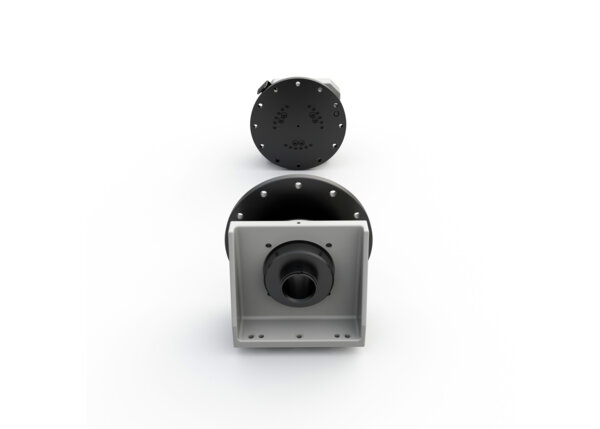

The image shown is for representation purposes only and may not reflect the actual product.
DETAILS
Adaptable to a wide range of processes including welding, laser, material handling, grinding and cutting, The Lincoln Electric Automation™ ANNEX® robotic positioner provides customers with an unparalleled user-friendly experience in all of their robotic positioning needs. Customers are able to use the system controlled either robotically, servo controlled, or manually when needed.
Features
- Adaptable to several robot manufacturers including FANUC, ABB, Yaskawa, KUKA, Kawasaki.
- Easy installation, with a "plug-and-play" aspect.
- Alternate specifications available upon request.
- Frame & input gear machined for motor-specific mounting – headstock
- Nabtesco inline gearbox – headstock.
- Pillow block bearing with through-bore spindle – tailstock
Service Information
What's Included
- Headstock
- Tailstock
- Nabtesco Inline
- Zero PIN
- Gearbox
- Pillow Block Bearing
- Spindle
- Steel Frame
- Input Gear.
Specifications
Global Attributes
| Positioner Type | Headstock/Tailstock |
| Load Capacity (lb) | 14771 |
| Max Tool Diameter (mm) | 1.50- 3.70 m [1500-3700] |
| Fanuc Compatability | Yes |
| ABB Compatability | Yes |
| Yaskawa Motoman Compatability | Yes |
| Kuka Compatability | Yes |
Warranty
| Warranty | 1 Year |
