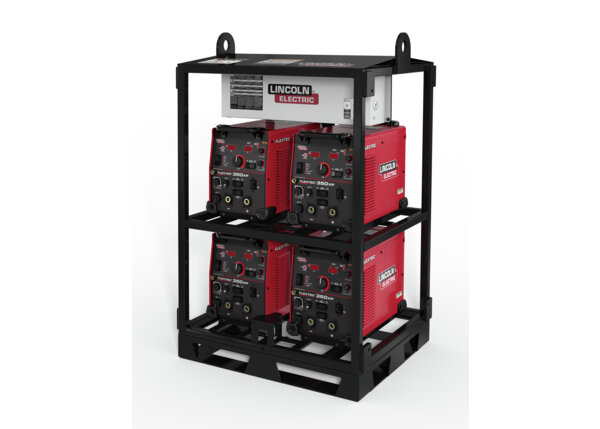

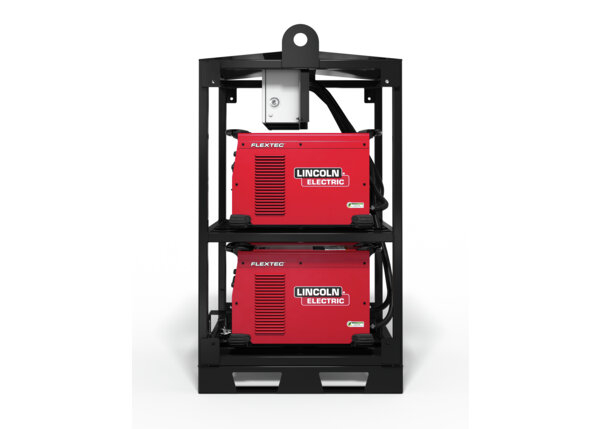

Flextec® 350XP (Tweco®) 4-Pack Rack

K3403-3

Flextec 350XP multi-process 4 pack inverter welding rack has CrossLinc technology for remote operation in construction welding applications.

Output

Output Output

Input

Input Input

MSRP

USD $38,390.00/EA

DETAILS

HEAVY DUTY, COMPACT, EXPANDABLE

In the shop, the Flextec 350XP model is built to work with all Lincoln Electric 42V feeders for your factory applications. It is also compatible with Arclink® digital feeders to provide synergic modes, memories, and basic pulsed MIG for seamless connectivity and improved weld performance. Lincoln Electric's inverter racks are ideal for field construction where multiple arcs are needed. Benefit from more portability, smaller footprint and a single primary input connection for multiple welders. This 4-pack rack stores four Flextec 350XP power sources on a sturdy storage unit designed to be easily transported throughout a jobsite and maximize organization. Purchase a complete system with factory-installed welders pre-wired to the main power distribution panel. Buy a 4-Pack and expand to an 8-Pack anytime!

Features

  • One easy connection - Allows power sources to be connected with one primary power drop
  • Simple Installation - The power sources are factory installed in the rack and wires to the main power distribution panel
  • Individual Fuses - Provide overcurrent protection for each power source
  • Ease of Portability - Designed with two overhead lifting eyes, forklifts slots, and optional heavy duty casters
  • Durable Construction - Constructed with a square tube frame that supports more weight and stands up to rugged jobsite use
  • Fold Down Fuse Panel - Allows convenient access to wiring and change fuses
  • Neat Input Cable Routing - Maintains all rack cabling inside the rack to avoid pinching or cutting during operation
  • Meets National Electrical Code (NEC) when properly installed

Disclaimers

Warning -

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

You May Also Need

Specifications

Product Weights & Dimensions

Dimensions (H x W x D) 59.72 in x 37.25 in x 32.88 in (1516 mm x 946 mm x 835 mm)
Net Weight 620 lbs (281 kg)

General Specification

Machines Processes Stick (SMAW)
Gouging (CAC-A)
Flux-Cored (FCAW)
TIG (GTAW)
MIG (GMAW)
Flux-Cored Self-Shielded (FCAW-S)
Flux-Cored Gas-Shielded (FCAW-G)
Input Voltage 380-575/3/50/60
Input Current 74/68/68 (4-Pack), 125/113/113 (8-Pack)
Input Hertz 50/60
Input Phase 3
Input Power 380/460/575/3/50/60
Mode Icon CC/CV
Output Range 5-425A
Polarity DC

Machine Technologies & Connections

Ingress Protection Rating IP23
Output Range by Mode 5-425 A
Machines Communication Technology analog
digital
CrossLinc
ArcLink
Wire Feeder Supply Voltage 40VDC
Amphenol Pins (type of connector) 5
14
12
Work Lead Connector Type Tweco

Application

Typical Application Construction
Construction & Field Erection
Shipbuilding
Structural Welding

Warranty

Warranty 5 Years
