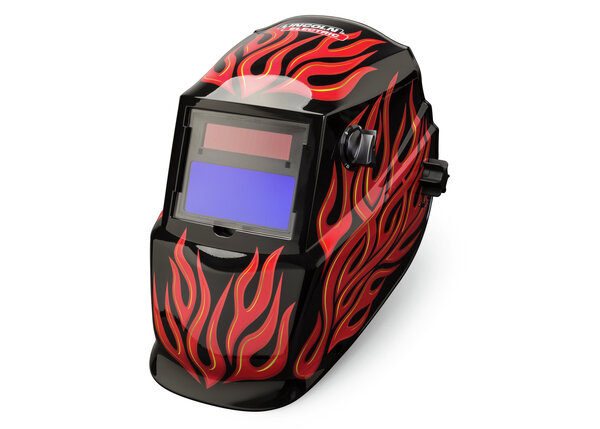

The image shown is for representation purposes only and may not reflect the actual product.
DETAILS
The Lincoln Electric Red Steel variable shade auto-darkening welding helmet is a rugged lightweight helmet with comfortable headgear and an oversized absorbent sweatband for those long days under the helmet. Includes 2 extra inside and outside impact resistant clear lenses. The Variable shade feature allows you to choose from shades 9-13. The helmet also features an additional grind mode shade. It can be used in Stick, TIG, Pulsed TIG, MIG, Pulsed MIG, Flux-Cored, Gouging processes
Features
- Red Steel Welding Helmet is an auto-darkening hood for safety and protection that’s solar powered
- Adjustable ratchet headgear provides the perfect fit for men and women; It’s rugged but lightweight with an oversized absorbent sweatband for extended wear and comfort
- Includes 2 extra inside and outside impact resistant clear lenses; The variable shade feature allows you to choose from shades 9-13. Includes an additional grind mode shade and test button
- Suitable for a wide range of projects and can be used in Stick, TIG, Pulsed TIG, MIG, Pulsed MIG, Flux Core, and Gouging welding processes
- Optical Clarity 1/1/1/2
- Two independent arc sensors to help avoid blind spots
- Lightweight - 17.5 oz.
- Continuous variable external control for shades 9-13
- Adjustment of fully down positioning
Disclaimers
Service Information
What's Included
- 2 extra inside and outside polycarbonate impact resistant clear lenses
Specifications
Welding Helmets
| Welding Helmets Product Types | Auto-Darkening |
| Welding Helmets Compliance | ANSI Z87.1 CSA Z94.3 |
| Welding Helmets Shell Type | Graphic |
| Welding Helmets ADF Viewing Area | 3.82" X 1.73" (97mm X 44mm) |
| Welding Helmets Control Type | Analog |
| Welding Helmets External Controls | Grind/ Shade Knob |
| Welding Helmets Optical Class | x |
| Welding Helmets Headgear Type | Ratchet |
| Welding Helmets Auto Darkening | Yes |
| Welding Helmets Cartridge Size | 4.33" X 3.54" (110MM X 90MM) |
| Welding Helmets Cheater Lens Compatible | Yes |
| Welding Helmets Grind Mode | Yes |
| Welding Helmets Lens Shade Rating | 9-13 |
| Welding Helmets Light to Dark Switch Time | 1/10,000 SECOND |
| Welding Helmets Number of Sensors | 2 |
| Welding Helmets Power Supply | SOLAR |
| Welding Helmets Quick Adjust Ratchet | Yes |
| Welding Helmets TIG Rating | APPROX 2 AMPS |
| Welding Helmets Welding Shade | Yes |
Application
| Typical Application | Construction Mining Railroad Maintenance Automotive Brewery Construction & Field Erection Distillery Education & Schools Galvanized Steel General Fabrication Heat Exchangers Maintenance & Repair Marine Applications Marine Fabrication & Repair |
Warranty
| Warranty | 2 Year Warranty |
