The image shown is for representation purposes only and may not reflect the actual product.

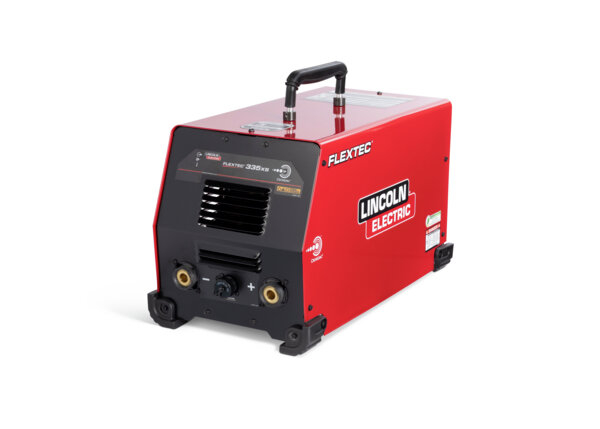

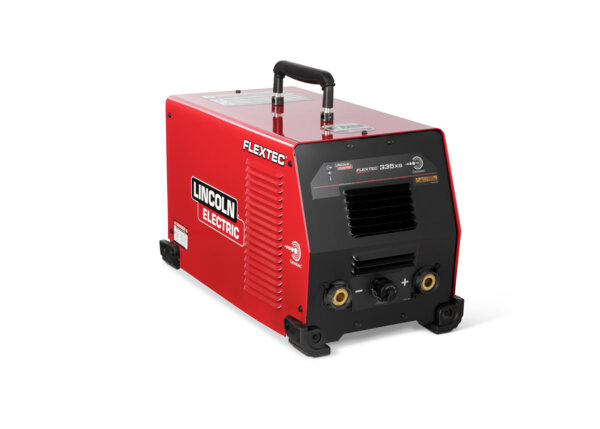

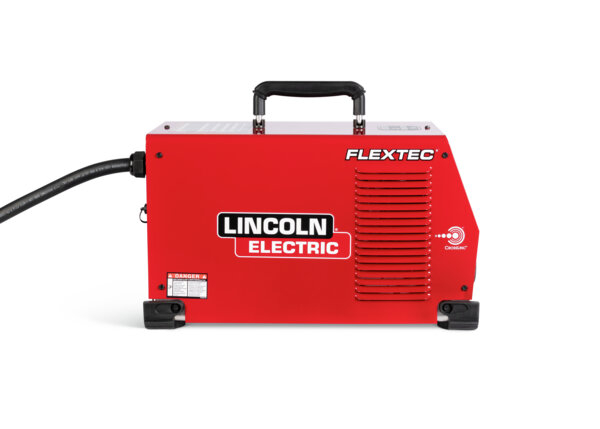

Flextec® 335XS (Tweco®)
K4850-1
Flextec 335XS is a multi-process power source designed to work exclusively with CrossLinc® accessories and 5-pin ArcLink feeders.
MSRP
USD $5,445.73/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
The Flextec 335XS is a lightweight and compact multi-process power source optimized for working with Crosslinc accessories. With minimal front controls and automatic weld mode selection based on polarity and the connected CrossLinc accessory (Process Select Assist), setup is straightforward and intuitive. Operators also have the option of utilizing ArcLink compatible feeders for synergic pulse capabilities.
Features
- Intuitive - Minimal front controls and automatic weld mode selection based on polarity and connected CrossLinc accessory (Process Select Assist).
- Durable - IP23 rated to withstand the extreme conditions of field environments
- Portable - Compact and lightweight design at just 50lbs with an ergonomic handle for one person lifting
- Supports CrossLinc feeders and accessories as well as 5-pin ArcLink feeders
Disclaimers
Service Information
What's Included
- 6.5 ft (2 m) input power cord
Documentation
You May Also Need
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 13.16 in x 23.37 in x 23.37 in (334.3 mm x 593.6 mm x 593.6 mm) |
| Net Weight | 50 lbs (23 kg) |
General Specification
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) MIG (GMAW) Pulsed MIG (GMAW-P) |
| Number of Operators per Machine | 1 |
| Input Voltage | 380-575/3/50/60 |
| Input Current | 21/23/18 |
| Input Hertz | 50, 50/60, 60 |
| Input Phase | 3 |
| Input Power | 380/460/575/3/50/60 |
| Output Range | 5-425A |
| Polarity | DC |
Machine Technologies & Connections
| Ingress Protection Rating | IP23 |
| Output Range by Mode | 5-425 |
| Rated Gouging Carbon Diameter | 1/4 in (6.5 mm) |
| Data Technologies | USB |
| Machines Communication Technology | CrossLinc ArcLink |
| Wire Feeder Supply Voltage | 40VDC |
| Amphenol Pins (type of connector) | 5 |
| Work Lead Connector Type | Tweco |
Application
| Typical Application | Repair Welding Shipbuilding Structural Welding |
Warranty
| Warranty | 5 Years |
