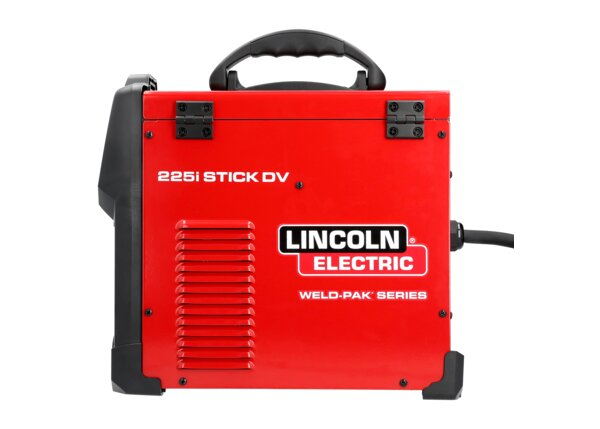

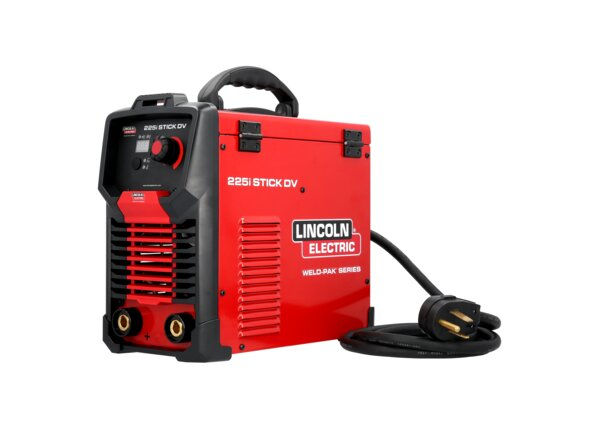

Weld-Pak® 225i Stick DV

K5419-1

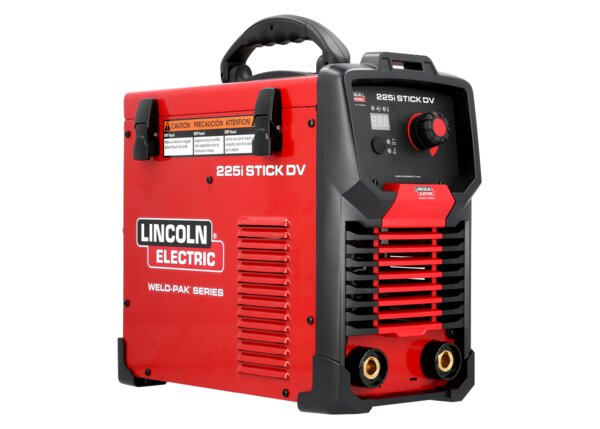

The Weld-Pak® 225i Stick DV is a lightweight inverter welder capable of DC Stick and DC TIG applications.

Output

Input

Lincoln Electric Business Partner?

Buy Now

DETAILS

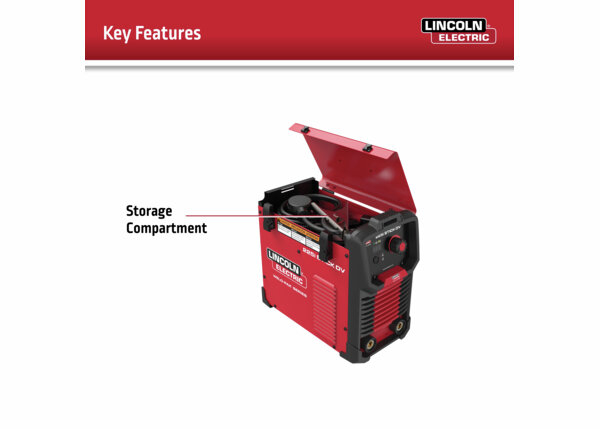

The dual voltage Weld-Pak® 225i Stick DV stick/TIG Welder has a 10 to 225 amp DC output that supports mild steel stick electrode diameters from 5/64" to 5/32". Weighing in at 20 lbs., it is lightweight and portable. The case has a tool box top for storing cables or tools. The smooth arc provides strong welds on 12 gauge sheet metal to 5/16" thick steel. It has a 30% duty cycle at 225 amps when connected to 230VAC. Touch Start TIG® welding is supported. A simple display allows you to dial in the weld settings so you can get started quickly and easily on any job, anywhere – maintenance work, fabrication, light structural and everything in between.

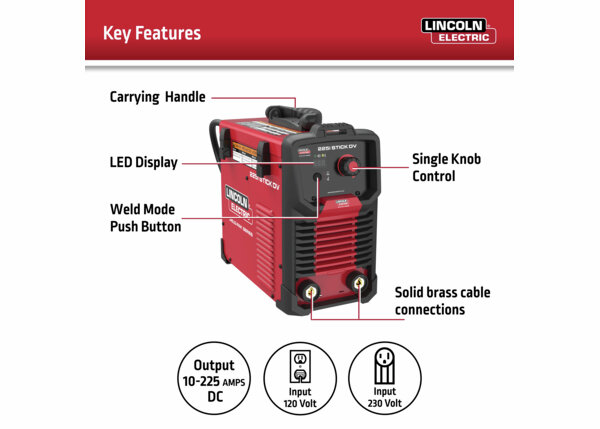

Features

120VAC/230VAC input, 120/230/1/60
10-225 amp DC welding output range
30% duty cycle at 225 amps
Weighs 20 lbs.

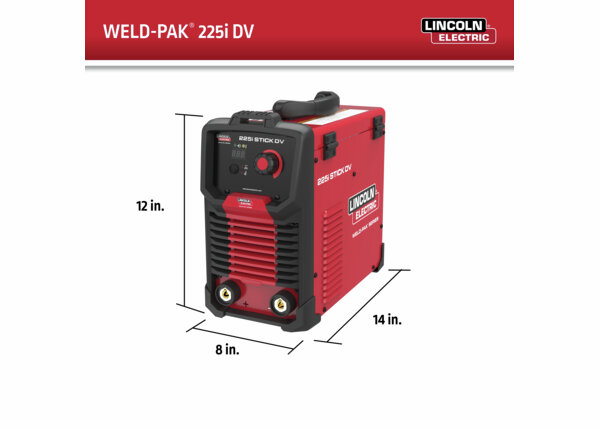

Dimensions of unit 12H x 8W x 14L inches
Welds 12 gauge to 5/16" single pass
Comes with a shoulder strap, 13 foot work cable & clamp, 13 foot electrode cable & electrode holder, and 6 foot input cable with attached three-prong 230VAC 6-50P plug with 5-15P 120VAC adapter
TIG capability with additional attachments

Disclaimers

Warning -

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

Service Information

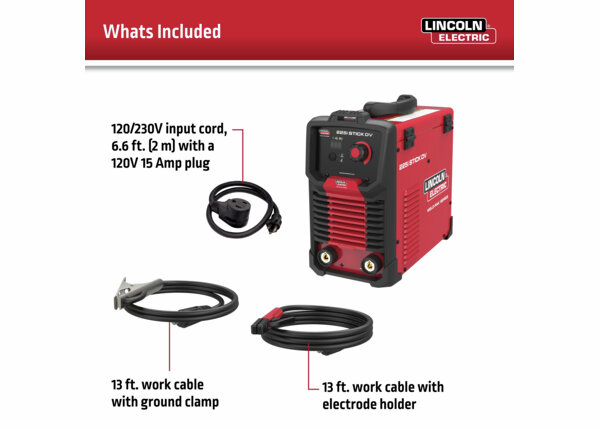

What's Included

(1) Shoulder Strap
(1) 13 foot Work Cable & Clamp
(1) 13 foot Electrode Cable & Electrode Holder
(1) 6ft Input Cable with three-prong 230VAC Plug
(1) 120VAC Plug Adapter

You May Also Need

PTA-17V TIG Torch (12.5 ft .,1 pc.)

K1782-6

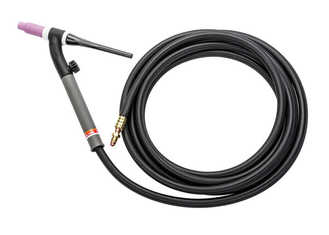

PTA-17FV TIG Torch (25 ft., 1 pc.)

K1782-11

Twist Mate™ Torch Adapter

K960-1

Twist Mate™ Plug - For #6 - #4 Cable

K852-25

Parts Kit for PTA-17 TIG Torch

KP508

Parts Kit for PTA-26 and PTW-18 TIG Torches

KP509

PTA-17V TIG Torch (12.5 ft., 2 pc.)

K1782-7

PTA-17FV TIG Torch w/Ultra-Flex™ Cable (12.5 ft., 1 pc.)

K1782-13

Specifications

Machine Inputs & Outputs

Phase 1: Input Voltage #1 (Voltage/Phase/Hertz)	230/1/50/60
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle)	225/29/30 Stick
Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle)	225/19/50 TIG
Phase 1: Input Current at Max Rated Ouput #1 (Current)	28
Phase 1: Input Voltage #2 (Voltage/Phase/Hertz)	120/1/50/60
Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle)	65/23/50 Stick
Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle)	95/14/50 TIG
Phase 1: Input Current at MAX Rated Output #2 (Current)	15

Product Weights & Dimensions

Dimensions (H x W x D)	12 in x 8 in x 14 in (305 mm x 203 mm x 355 mm)
Net Weight	20 lbs (9 kg)

General Specification

Machines Processes	Stick (SMAW) TIG (GTAW)
Open Circuit Voltage	82
Number of Operators per Machine	1
Input Voltage	230VAC; 120VAC
Input Current	28 amps 230V input; 15 amps 120V input
Input Hertz	50/60
Input Phase	1
Output Range	10-225 amps

Machine Technologies & Connections

Ingress Protection Rating	IP2X
Output Range by Mode	10A/20.4V-225A/29V Stick; 10A/10.4V-225A/19V TIG
Machines Maximum Weldable Thickness	5/16
Machines Minimum Weldable Thickness	12 gauge
Machines Communication Technology	digital
Work Lead Connector Type	Dinse

Stick Welders

Minimum Weldable Thickness	5/16
Maximum Weldable Thickness	12 gauge

Warranty

12 months
