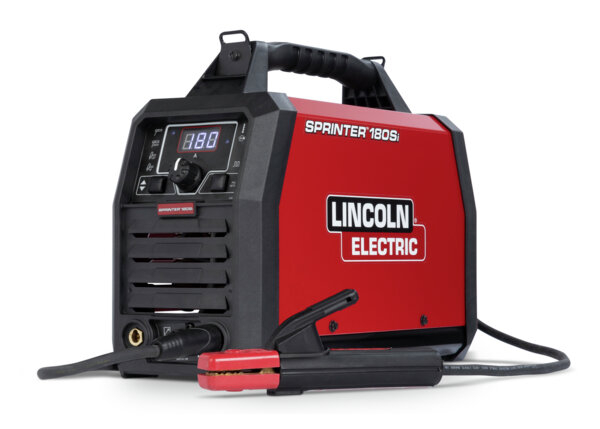

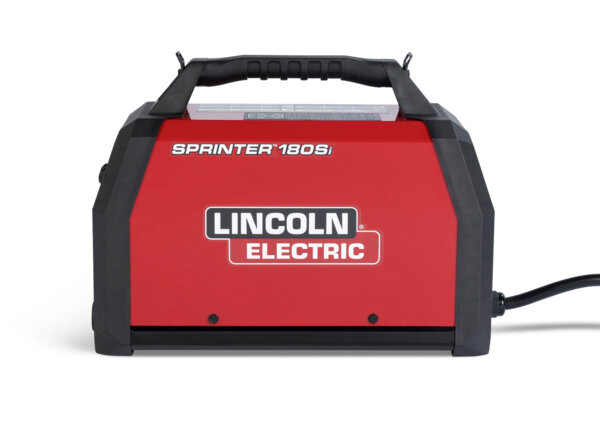

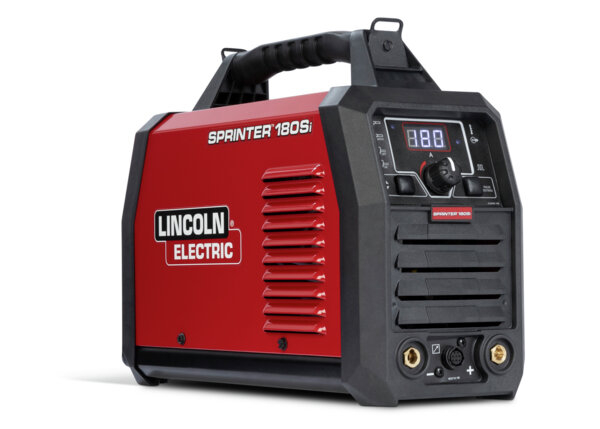

The image shown is for representation purposes only and may not reflect the actual product.

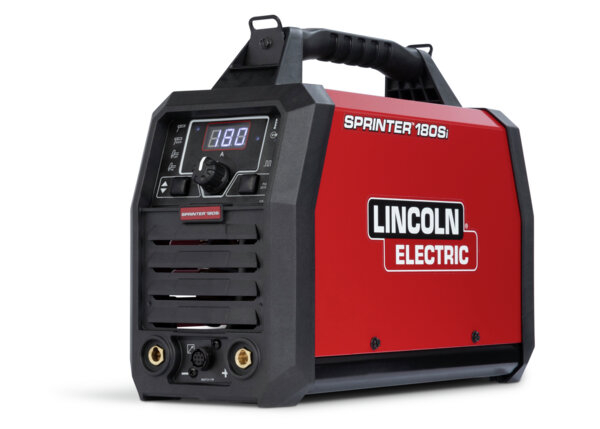

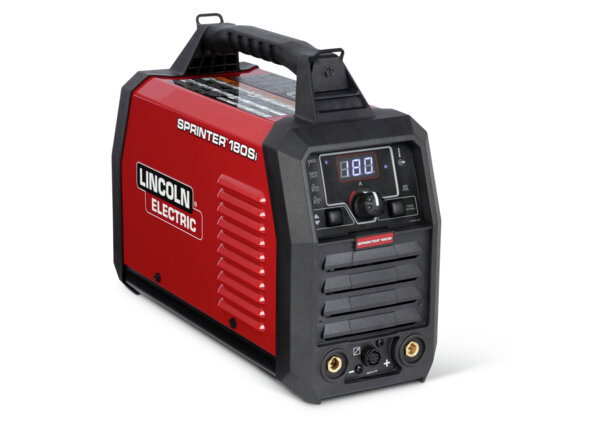

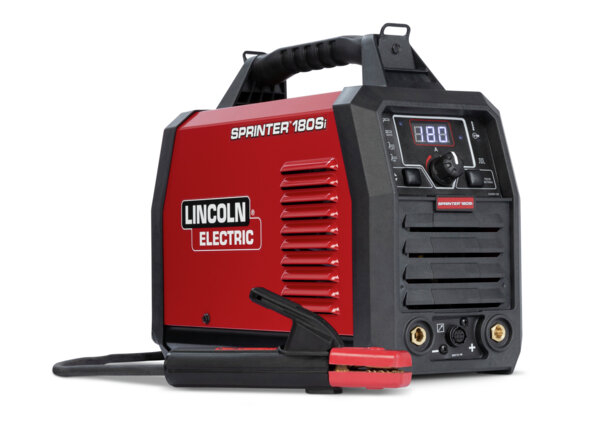

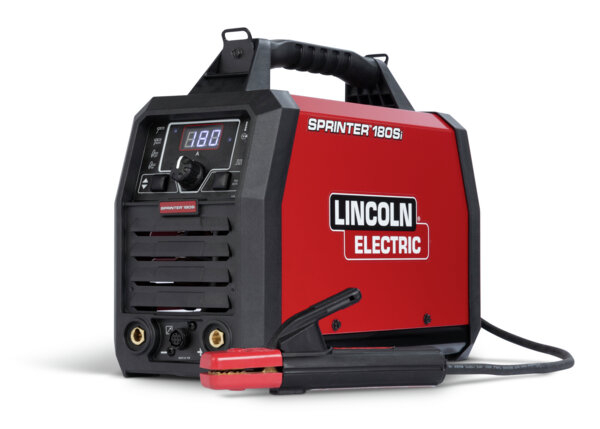

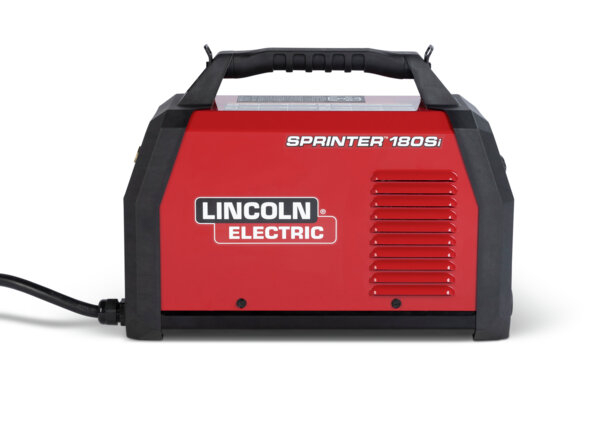

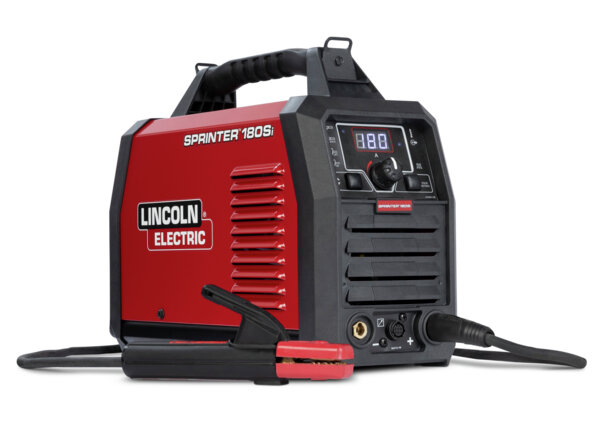

Sprinter™ 180Si

K5453-1

The Sprinter 180Si is a lightweight inverter welder capable of DC Stick and TIG applications and ideal for beginners.

Output

Output Output

Input

Input Input

MSRP

USD $959.99/EA

DETAILS

The Sprinter 180Si gives you power in a small package. Weighing in under 20 lbs., it's lightweight and portable, and the 180-amp output enables you to weld electrodes up to 5/32 inches, including 7018 and 6010. This machine is more than just a stick welder, the Sprinter 180Si combines superior stick capabilities with high-frequency TIG, pulsed TIG mode, amptrol compatibility and dual input voltage (120V/230V). A simple display allows you to dial the weld settings so you can get started quickly and easily on any job anywhere – maintenance work, light-fabrication, light structural and everything in between. The Sprinter 180Si is a stick welder and so much more.

Features

  • Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
  • Multi-Process Capable - Welds DC Stick and DC TIG.
  • Two Stick Modes - Crisp arc allows for greater welding versatility and superior performance on E6010 and E6011 electrodes while soft arc allows for dependable E7018 arc starting.
  • Pulsed TIG Mode - Provides heat management and enhanced control when making thin, precise welds.
  • High Frequency Start - Strike a precise arc every time while TIG welding
  • Lightweight Portability - This durable machine weighs under 20 lbs. and is easy to carry with its ergonomic handle or included shoulder strap.

Disclaimers

Warning -

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

What's Included

  • (1) Sprinter™ 180Si Welder
  • (1) Insulated Electrode Holder and Cable
  • (1) Heavy Duty Work Clamp and Cable
  • (1) 230V to 120V Power Cord Adapter

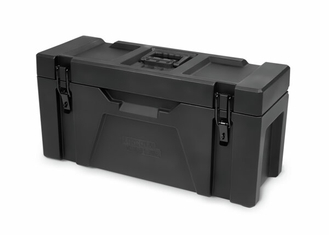

You May Also Need

Specifications

Machine Inputs & Outputs

Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 120/1/60
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) Stick 85A/23.2V/40%
Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) TIG 110A/14.6V/40%
Phase 1: Input Current at Max Rated Ouput #1 (Current) 22A
Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) 230/1/60
Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) Stick 180A/26.4V/25%
Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) TIG 200A/16.4V/25%
Phase 1: Input Current at MAX Rated Output #2 (Current) 29A

Product Weights & Dimensions

Dimensions (H x W x D) 11.8 in x 6.25 in x 16 in (299.7 mm x 158.8 mm x 406.4 mm)
Net Weight 20 lbs (9.1 kg)

General Specification

Machines Processes Stick (SMAW)
TIG (GTAW)
Open Circuit Voltage Average OCV - 65V Peak OCV - 110V VRD OCV (Peak) - 14V
Number of Operators per Machine 1
Input Voltage 120/230
Input Hertz 60
Input Phase 1
Input Power 120/230/1/60
Mode Icon CC
Output Range SMAW 120V: 20-85A 230V: 20-180A GTAW 120V: 10-110A 230V: 00-200A MAX OCV 110V
Polarity DC

Machine Technologies & Connections

Ingress Protection Rating IP23
IEC Rating IP23
Output Range by Mode Stick 20A-180A TIG 10A-200A
Machines Communication Technology analog
Work Lead Connector Type Dinse

Wire Feeding Specifications

UI type Simple

Application

Typical Application Construction
Brewery
Distillery
General Fabrication
Maintenance & Repair
Repair Welding
Shipbuilding
Structural Welding

Warranty

Warranty 3 Years
