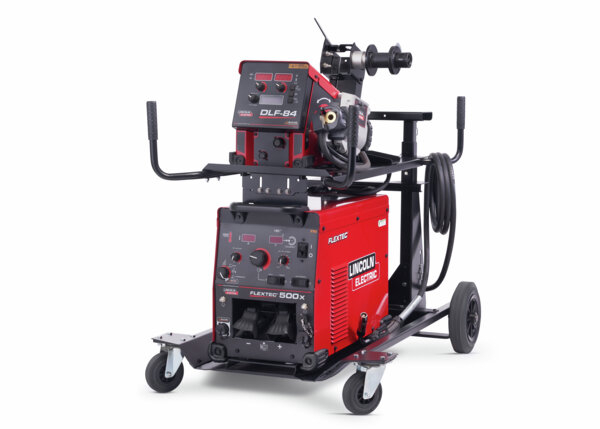

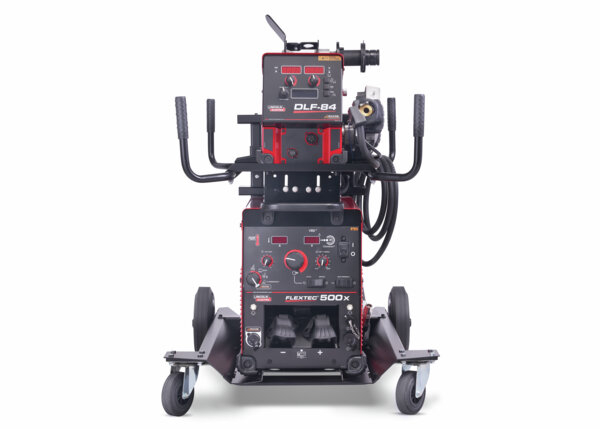

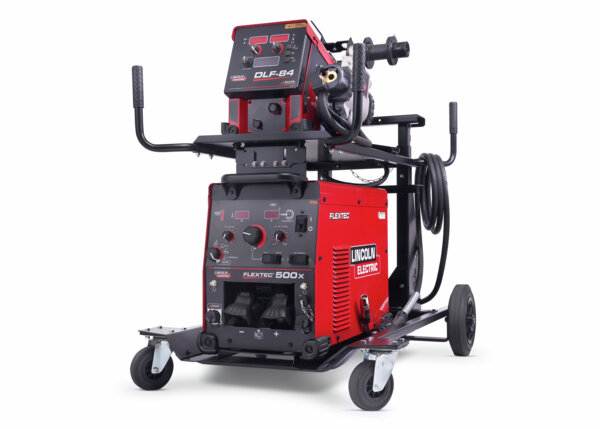

Flextec® 500X / DLF-84 Ready-Pak®

THE COMPLETE FAB SHOP SYSTEM

The Flextec®/ DLF Ready-Pak® welding systems are the ideal shop solutions for MIG welding applications. It is also compatible with Arclink® digital feeders to provide synergic modes, memories, and basic pulsed MIG for seamless connectivity and improved weld performance. Designed to combine the latest welding innovation with easy, operator-focused control features, these complete welding systems deliver the benchmark of simplicity and performance.

Tailored to be shop-floor focused, these systems are easy to order, easy to set up, and easy to operate - providing fab shops a reliable, field-proven welding system that comes ready to weld, and ready to perform. Simple power source and wire feeder controls provide easy operation, allowing operators to dial in the system quickly. Intelligent features such as synergic CV-MIG and Pulsed MIG, along with Auto Settings, optimize arc performance for low spatter and improved arc control. The Ready-Pak® comes fully assembled with the Flextec® 350X PowerConnect® power source, DLF-84 bench wire feeder with wire stand, Magnum® PRO Curve™ HDE™ 350, and flowmeter regulator on a cart.

Features

• Synergic Control - Input the wire type, diameter, and shielding gas and adjust the one knob (WFS) based on user preference and the voltage will adjust automatically
• Pulsed MIG Modes - Helps reduce spatter for more productivity, minimize fume, and offer a wider operating range for improved weld puddle control and easier out-of-position welding
• Adaptive Arc - When using the pulsed MIG process, small changes to contact tip to work distance (CTWD) will not affect the bead shape as the adaptive arc works to keep the arc length constant
• Aluminum Capable - Pair with any compatible Lincoln Electric push-pull gun and 12 pin-connection kit for Aluminum Welding Processes
• Arc Control - Options to fine tune the arc with Pinch/Inductance and Pulse Frequency
• Memory Presets - Save up to 4 custom weld settings and quickly recall based on your application
• Gun Trigger Memory Recall - Easily change between saved weld settings (such as tack settings and weld settings) right at the weld gun, no need to go back to the welder
• Weld Parameter Limits - Customized high & low limits for WFS, W/Trim, and Arc Control to help increase process control and reduce accidental parameter changes
• Weld Mode Lock Out - Customize the weld mode options available to select (i.e.. only 0.045 carbon steel pulse)
• PIN Lockout - Restrict system / parameter changes and reduce change of accidental changes
