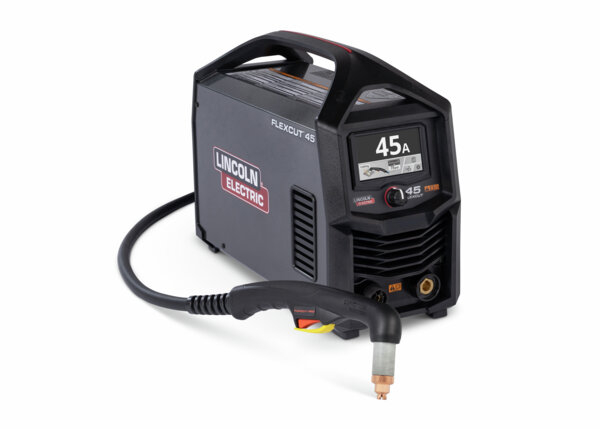

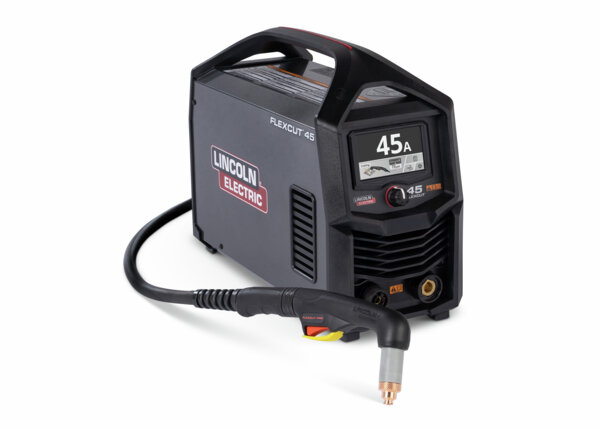

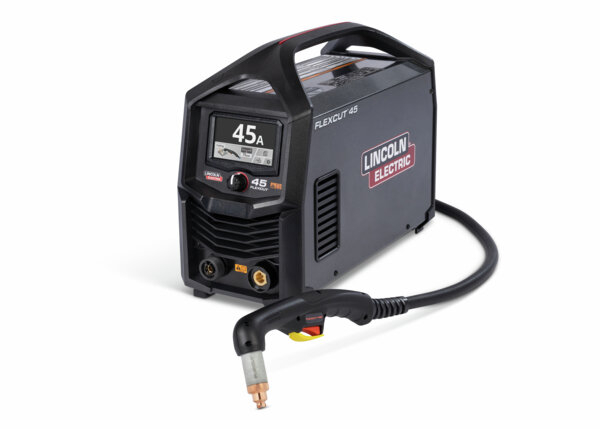

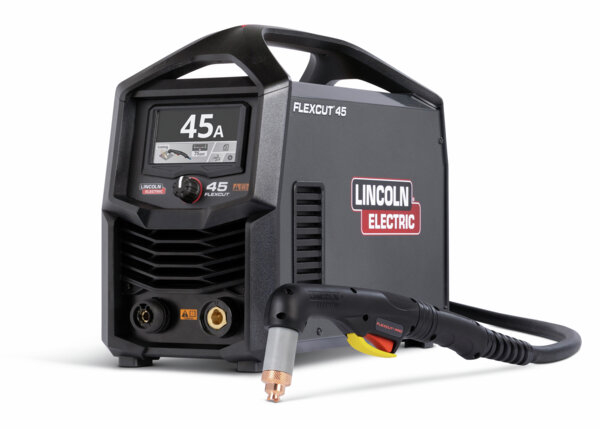

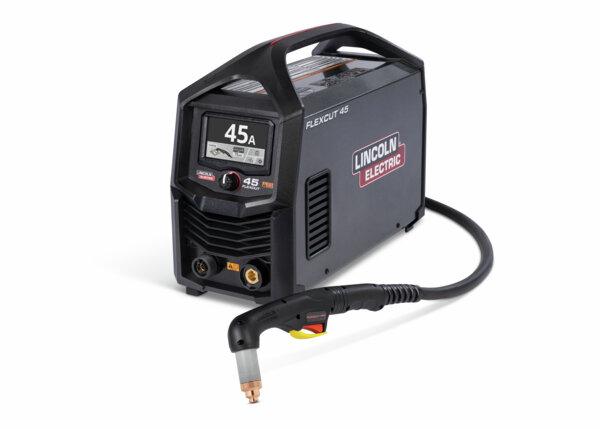

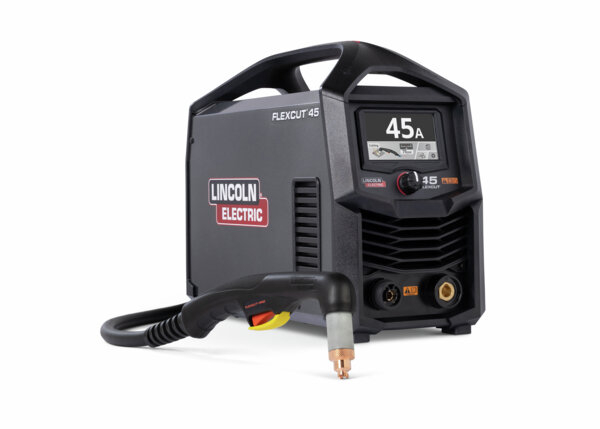

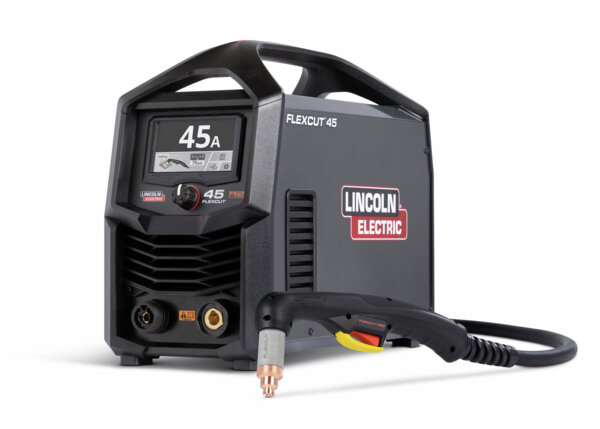

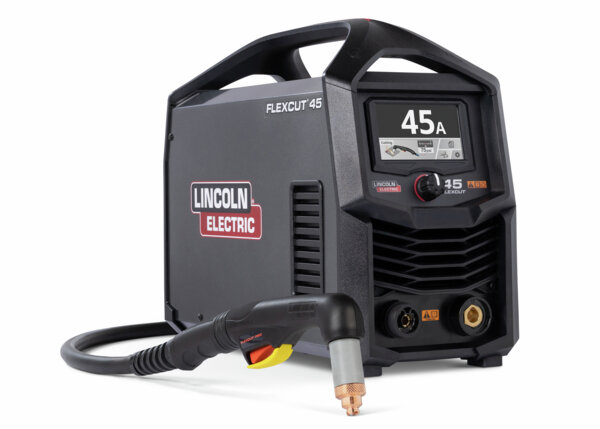

FlexCut® 45 Plasma Cutter Handheld Ready-Pak®
K5823-H
The FlexCut 45 plasma cutter comes with everything needed to handheld plasma cut mild steel, aluminum, or stainless steel
Model
Select Model
-
FlexCut 45 Plasma Cutter - Handheld Ready-Pak
The FlexCut 45 plasma cutter comes with everything needed to handheld plasma cut mild steel, aluminum, or stainless steel
K5823-H
-
FlexCut 45 Plasma Cutter - Mechanized Ready-Pak
The FlexCut 45 plasma cutter comes with everything needed for mechanized plasma cutting mild steel, aluminum, or stainless steel
K5823-M
-
The FlexCut 45 plasma cutter can cut mild steel, aluminum, or stainless steel
K5823-PS
MSRP
USD $2,499.99/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
The FlexCut 45 delivers dependable cutting performance with steady power, high-duty cycles, and continuous output, so you can work without interruptions. Built for professionals, it combines precision, portability, and durability, maintaining consistent performance even during long cutting sessions. Designed to run cooler and longer, it’s ideal for demanding applications and cuts through mild steel, aluminum, stainless steel, and grating with ease. Compatible with our FlexConnect™ Torch System giving you the flexibility to switch between torch heads or cables in seconds.
For more information, please visit the FlexCut Plasma Cutter Resource Center.
Features
- 45 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
- High Duty Cycle: Built for demanding applications without overheating or slowing down.
- LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
- Dual Voltage Flexibility: Plug into 120V or 230V power sources.
- Plug-and-Play CNC Integration: Seamless integration with CNC tables with automatic table detection for fast, precise setup.
- Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machine for maximum versatility.
- Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage.
- Ideal for plasma cutting, grid cutting, gouging and marking
- 5 year warranty
Disclaimers
Service Information

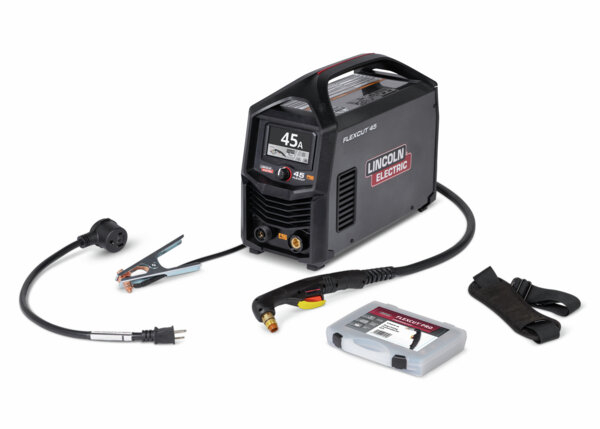

What's Included
- (1) FlexCut 45 Plasma Cutter
- (1) FlexCut PRO FlexConnect Handheld Torch
- (1) Ground Cable & Clamp
- (1) Shoulder Strap
- (1) Input Power Cord
- (1) 120V Adapter
- (7) Nozzles
- (7) Electrodes
- (1) Swirl Ring
- (1) Retaining Ring
- (3) Shields
Specifications
Machine Inputs & Outputs
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | 27A/90.8V/20% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | 16A/86.4V/60% |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | 15A/86V/100% |
| Phase 1: Input Current at Max Rated Ouput #1 (Current) | 26A |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | 45A/98V/50% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | 42A/96.8V/60% |
| Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) | 32A/92.8V/100% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 22.5 |
Product Weights & Dimensions
| Dimensions (H x W x D) | 14.1 in x 8.1 in x 18.4 in (359 mm x 205 mm x 468 mm) |
| Net Weight | 26.8 lbs (12.2 kg) |
General Specification
| Machines Processes | Plasma Gouging Plasma Cutting |
| Open Circuit Voltage | 320 VDC |
Machine Technologies & Connections
| Ingress Protection Rating | IP23 |
Plasma Machines
| Plasma Machines Process | Cutting Gouging Marking |
| Torch Included | Yes |
| Torch Cooling | Air |
| Gas Supply | Air or Nitrogen |
| Gas Pressure Required | 90-130 psi |
| Recommended Cutting Capacity (Mild Steel) (In/ft) | 5/8 in @ 16 ipm |
| Maximum Cutting Thickness (Mild Steel) (ln/Ft) | 7/8 in @ 7 ipm |
| Maximum Severance (Mild Steel) (In/Ft) | 1 in @ 5 ipm |
Application
| Typical Application | Construction Automotive General Fabrication Marine Fabrication & Repair Structural Fabrication |
Warranty
| Warranty | 5 Years |
