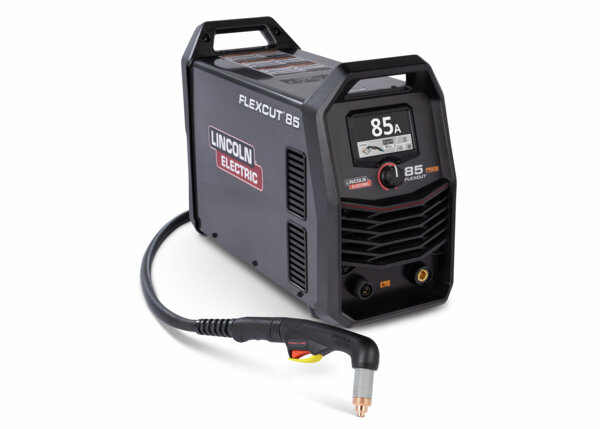

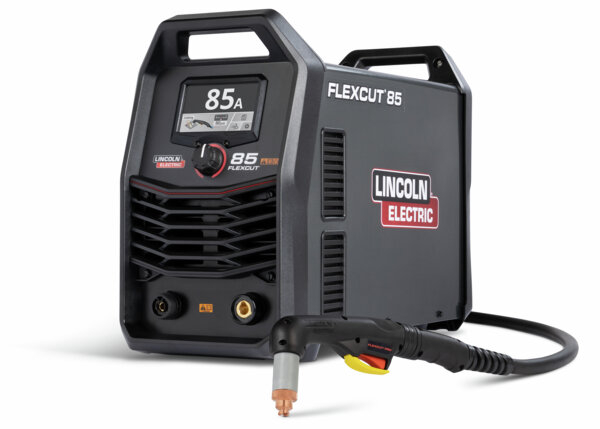

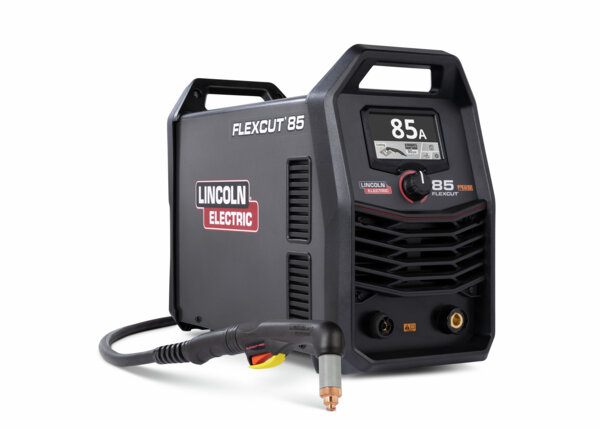

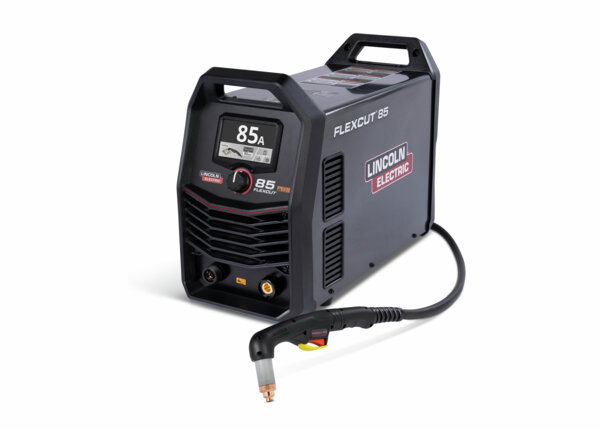

FlexCut® 85 Plasma Cutter Handheld Ready-Pak®
K5826-H
The FlexCut 85 plasma cutter comes with everything needed to handheld plasma cut mild steel, aluminum, or stainless steel
Model
Select Model
-
FlexCut 85 Plasma Cutter - Handheld Ready-Pak
The FlexCut 85 plasma cutter comes with everything needed to handheld plasma cut mild steel, aluminum, or stainless steel
K5826-H
-
FlexCut 85 Plasma Cutter - Mechanized Ready-Pak
The FlexCut 85 plasma cutter comes with everything needed for mechanized plasma cutting mild steel, aluminum, or stainless steel
K5826-M
-
FlexCut 85 Plasma Cutter - Power Source Only
The FlexCut 85 plasma cutter can cut mild steel, aluminum, or stainless steel
K5826-PS
MSRP
USD $4,499.99/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
Built for performance and endurance, the FlexCut 85 takes productivity to the next level. With eight plasma cutting processes, a high-duty cycle, and rugged reliability, it’s the perfect fit for construction, general fabrication, and maintenance and repair applications. CNC-ready with built-in ports for quick setup and automatic detection, and a large LCD display for intuitive operation. Compatible with our FlexConnect™ Torch System, giving you the flexibility to switch between torch heads or cables in seconds.
For more information, please visit the FlexCut Plasma Cutter Resource Center.
Features
- 85 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
- High Duty Cycle: Built for demanding applications without overheating or slowing down.
- LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
- Input Power Flexibility: Compatible with both 1-phase and 3-phase power
- Plug-and-Play CNC Integration: Seamless integration with CNC tables with automatic table detection for fast, precise setup.
- Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machine for maximum versatility.
- Rugged by Design: Heavy-duty construction built for real-world conditions— hard to damage, and ready to withstand impact, dust, and daily wear.
- Ideal for Drag Cutting, Grid Cutting, Mechanized, Extended, Precision Cutting, Gouging & Marking
- 5 year warranty
Disclaimers
Service Information

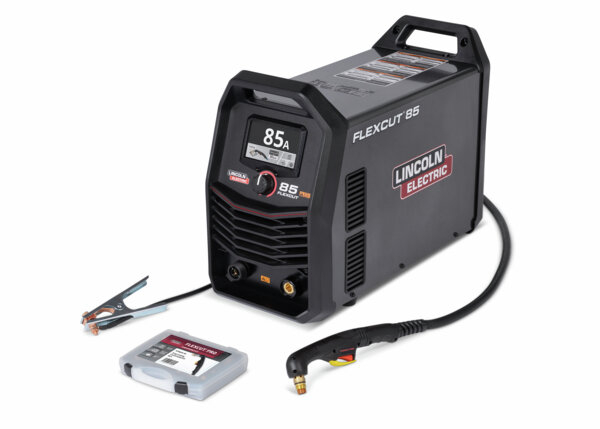

What's Included
- (1) FlexCut 85 Plasma Cutter
- (1) FlexCut PRO FlexConnect Handheld Torch
- (1) Ground Cable & Clamp
- (1) Input Power Cord
- (7) Nozzles
- (7) Electrodes
- (1) Swirl Ring
- (1) Retaining Ring
- (3) Shields
Specifications
Machine Inputs & Outputs
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 200-480/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | 85A/114V/40% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | 66A/106.4V/100% |
| Phase 1: Input Current at Max Rated Ouput #1 (Current) | 26.4 |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 600/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | 85A/114V/60% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | 66A/106.4V/100% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 25.3A |
| Phase 3: Input Voltage #1 (Voltage/Phase/Hertz) | 200-480/3/60 |
| Phase 3: Rated Output #1A (Current/Voltage/Duty Cycle) | 85A/114V/60% |
| Phase 3: Rated Output #1B (Current/Voltage/Duty Cycle) | 66A/106.4V/100% |
| Phase 3: Input Current at Max Rated Ouput #1 (Current) | 14.4A |
| Phase 3: Input Voltage #2 (Voltage/Phase/Hertz) | 600/3/60 |
| Phase 3: Rated Output #2A (Current/Voltage/Duty Cycle) | 85A/114V/60% |
| Phase 3: Rated Output #2B (Current/Voltage/Duty Cycle) | 66A/106.4V/100% |
| Phase 3: Input Current at MAX Rated Output #2 (Current) | 12.8A |
Product Weights & Dimensions
| Dimensions (H x W x D) | 17.6 in x 10.3 in x 24.8 in (448 mm x 262 mm x 630 mm) |
| Net Weight | 76.3 lbs (34.7 kg) |
General Specification
| Machines Processes | Plasma Gouging Plasma Cutting |
| Open Circuit Voltage | 320 VDC |
Machine Technologies & Connections
| Ingress Protection Rating | IP23 |
Plasma Machines
| Plasma Machines Process | Cutting Gouging Marking |
| Torch Included | No |
| Torch Cooling | Air |
| Gas Supply | Air or Nitrogen |
| Gas Pressure Required | 90-130 psi |
| Recommended Cutting Capacity (Mild Steel) (In/ft) | 1 in |
| Maximum Cutting Thickness (Mild Steel) (ln/Ft) | 1 1/4 in |
| Maximum Severance (Mild Steel) (In/Ft) | 1 1/2 in |
Application
| Typical Application | Construction Automotive General Fabrication Marine Fabrication & Repair Structural Fabrication |
Warranty
| Warranty | 5 Years |
