Flex Feed® 84 Dual Boom Feeder One-Pak®
K5002-11

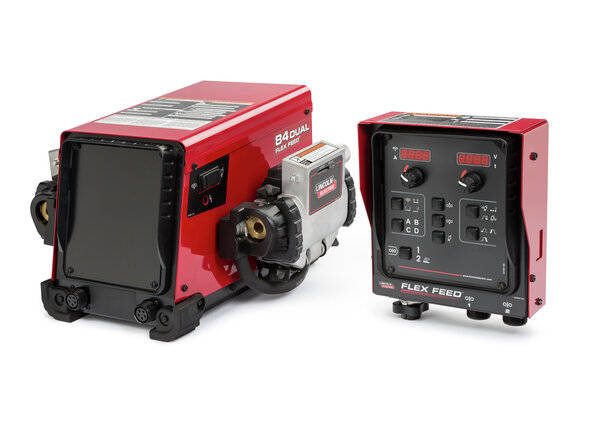

FlexFeed 84 Dual Head Configured for Boom Mounting.
Model
Select Model
-
84 Single Wire Drive Boom Mount Feeder – No U/I
Flex Feed 84 wire drive for use with Flex Feed 84 control box for boom mounted configurations
K5000-1
-
84 Single Drive Boom One-Pak®
FlexFeed 84 single wire drive boom configuration One-Pak includes wire drive and controller.
K5000-11
-
84 Dual Drive Boom Mount Feeder – No U/I
FlexFeed 84 Dual head wire drive unit. For use with Flex Feed control box with UI when mounting to a welidng boom.
K5002-1
-
84 Dual Boom Feeder One-Pak®
FlexFeed 84 Dual Head Configured for Boom Mounting.
K5002-11
-
Flex Feed 84 Single or Dual Control Box, U/I
The Power Feed 84 controller for boom mount applications. Controls up to two Flex Feed 84 wire drives
K5004-1
-
84 Single or Dual Control Box, No U/I
The Flex Feed 84 control box houses the UI when converting a Flex Feed 84 from a bench model to a boom configuration.
K5004-2
MSRP
USD $9,929.00/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
Rugged and reliable engineering
- Consistent feeding over long conduit runs
- Handles large-diameter wires (up to 3/32 in. (2.4 mm) solid or .120 in. (3.2 mm) cored wire), well beyond the competition’s 5/64-in. capacity
- Gun adapters provide superior electrical connections reducing voltage drops and simplifying connections
- Wire drive circuit board is encapsulated for maximum protection from the elements
Superior process control
- Digital preset for voltage and wire feed speed
- Save repeated procedures in up to four user memories
- Process limits can be set and passcode secured
- Displays actual voltage and current while welding
Safety with every process
- Single wire drive model feeders can be ordered with an electrically isolated stud for arc gouging operations
- Dual wire drive model can be ordered with a Power Path™ contactor that electrically isolates the non-active wire drive and gun
- User selectable wire retract function physically retracts the wire back into the nozzle to prevent operator injury
Advanced MaxTrac® WIRE DRIVE DESIGN
- Rugged cast aluminum feed plate protects wire and ensures consistent wire feeding
- Patented tool-less drive rolls make adjustments and maintenance quick and easy
- Patented tool-less split wire guides ensure uninterrupted feed and prevents birdnesting
Modular design provides flexibility of configurations
- Configure for single, dual, bench or boom setups (convert as workspace needs change)
- Two available wire reel stands; standard (up to 44-lb spools) or heavy duty (up to 60-lb coils or spools)
- Built-in interface for hard automation
Features
- Dual head boom configuration
- Four Memory locations per side for saving and quick recall of weld schedules.
- Advanced MaxTrac® 4-roll wire drive design
- Modular design provides flexibility of configurations
- Displays preset voltage at the feeder
- Record actual arc on time
- Timers for run-in, start, crater, preflow, postflow and burnback
Disclaimers
Service Information
What's Included
You May Also Need
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 16.5 in x 22.5 in x 30.6 in (419 mm x 572 mm x 777 mm) |
| Net Weight | 93 lbs (42.185 kg) |
Machine Technologies & Connections
| Ingress Protection Rating | IP23 |
General Specification
| Input Voltage | 24-42 VAC |
Wire Feeding Specifications
| Number of driven rolls | 4 rolls |
| Feeder type | Boom |
| Configuration | Dual |
| Max spool diameter | Drum |
| Communication Technology | analog |
| UI type | Meters |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Dual |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
Application
| Typical Application | General Fabrication Heavy Fabrication |
Warranty
| Warranty | 3 Years |
