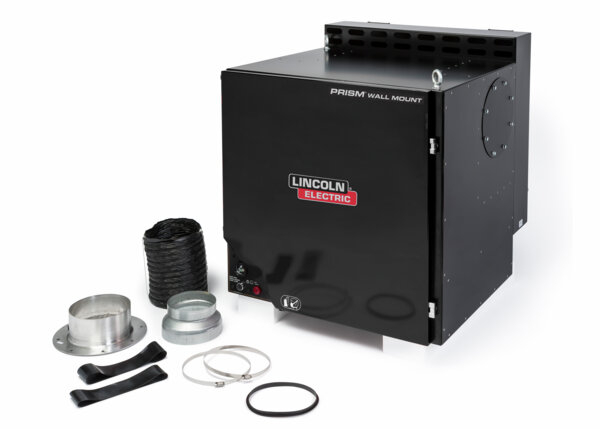

Prism Wall Mount with Mechanized Cleaning Welding Fume Extraction Unit
Statiflex 800 (single or dual arm) weld fume extractor
Statiflex 800 (single or dual arm) weld fume extractor
Statiflex 800 (single or dual arm) weld fume extractor
Statiflex 800 (single or dual arm) weld fume extractor
The image shown is for representation purposes only and may not reflect the actual product.

Prism® Wall Mount w/Mechanized Cleaning w/MERV 16 Filter Single Arm Base Unit

K3681-1

Prism Wall Mount with Mechanized Cleaning and MERV 16 Filter Single Arm Base Unit

Input

Input Input Input

Model

Select Model

  • K3681-1 Prism Wall Mount with Mechanized Cleaning w/MERV 16 Filter Single Arm Base Unit

    K3681-1 Prism Wall Mount with Mechanized Cleaning w/MERV 16 Filter Single Arm Base Unit

    Prism Wall Mount with Mechanized Cleaning and MERV 16 Filter Single Arm Base Unit

    K3681-1

  • Single Flexible 10 ft. Arm, Starter/ Overload

    Single Flexible 10 ft. Arm, Starter/ Overload

    Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 2400 stationary fan, a starter/overload switch, and a flexible 10 ft. arm. Capable of providing 735 SCFM in single arm configuration.

    K4468-1

  • Single Flexible 10 ft. Arm, 7 ft Extension Crane, Starter/ Overload Switch

    Single Flexible 10 ft. Arm, 7 ft Extension Crane, Starter/ Overload Switch

    Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 4200 stationary fan, a starter/overload switch, 7 ft. extension crane and a flexible 10 ft. arm.

    K4468-2

  • Single Flexible 10 ft. Arm, 14 ft Extension Crane, Starter/ Overload

    Single Flexible 10 ft. Arm, 14 ft Extension Crane, Starter/ Overload

    Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 4200 stationary fan, a starter/overload switch, 14 ft. extension crane and a flexible 10 ft. arm.

    K4468-3

  • Single Flexible 10 ft. Arm, Arc Sensor/ Lamp Kit

    Single Flexible 10 ft. Arm, Arc Sensor/ Lamp Kit

    Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 2400 stationary fan, an Arc Sensor/ Lamp Kit, and a flexible 10 ft. arm.

    K4468-5

  • Single Flexible 10 ft. Arm, 7 ft Extension Crane, Arc Sensor/ Lamp Kit

    Single Flexible 10 ft. Arm, 7 ft Extension Crane, Arc Sensor/ Lamp Kit

    Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 4200 stationary fan, an Arc Sensor/Lamp Kit, 7 ft. extension crane and a flexible 10 ft. arm.

    K4468-6

  • Single Flexible 13 ft. Arm, Starter/ Overload

    Single Flexible 13 ft. Arm, Starter/ Overload

    Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 2400 stationary fan, a starter/overload switch, and a flexible 13 ft. arm. Capable of providing 735 SCFM in single arm configuration.

    K4468-8

  • Single Flexible 13 ft. Arm, 7 ft Extension Crane, Starter/ Overload Switch

    Single Flexible 13 ft. Arm, 7 ft Extension Crane, Starter/ Overload Switch

    Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 4200 stationary fan, a starter/overload switch, 7 ft. extension crane and a flexible 13 ft. arm.

    K4468-9

  • Single Flexible 13 ft. Arm, 14 ft Extension Crane, Starter/ Overload

    Single Flexible 13 ft. Arm, 14 ft Extension Crane, Starter/ Overload

    Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 4200 stationary fan, a starter/overload switch, 14 ft. extension crane and a flexible 13 ft. arm.

    K4468-10

  • Single Telescopic 5-8 ft. Arm, Starter/ Overload

    Single Telescopic 5-8 ft. Arm, Starter/ Overload

    The Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 2400 stationary fan, a starter/overload switch, and a telescopic 5-8 ft. counter-weight arm. It is capable of providing 735 SCFM in a single-arm configuration.

    K4468-13

  • Single Telescopic 5-8 ft. Arm, Arc Sensor/ Lamp Kit

    Single Telescopic 5-8 ft. Arm, Arc Sensor/ Lamp Kit

    The Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 2400 stationary fan, an Arc Sensor/ Lamp Kit, and a telescopic 5-8 ft. counter-weight arm. It is capable of providing 735 SCFM in a single-arm configuration.

    K4468-15

  • Single Flexible 13 ft. Arm, Arc Sensor/ Lamp Kit

    Single Flexible 13 ft. Arm, Arc Sensor/ Lamp Kit

    Prism Wall Mount with Mechanized Cleaning One-Pak with MERV 16 filter comes with a Prism 2400 stationary fan, an Arc Sensor/ Lamp Kit, and a flexible 13 ft. arm.

    K4468-18

MSRP

USD $8,757.00/EA

Buy Now

DETAILS

FUMES DON’T STAND A CHANCE

The Prism Wall Mount units are stationary, wall-mounted low vacuum systems intended for light to medium duty extraction and filtration of welding fume. Ideal for job shops, welding schools and maintenance departments, the Prism Wall Mount unit is designed for facilities with fixed work stations and limited floor space. The One-Pak packages help simplify the selection process.

Features

  • Self-cleaning filters cut down on filter replacement costs
  • Front loading filters for ease of access
  • Integrated Spark Arrestor

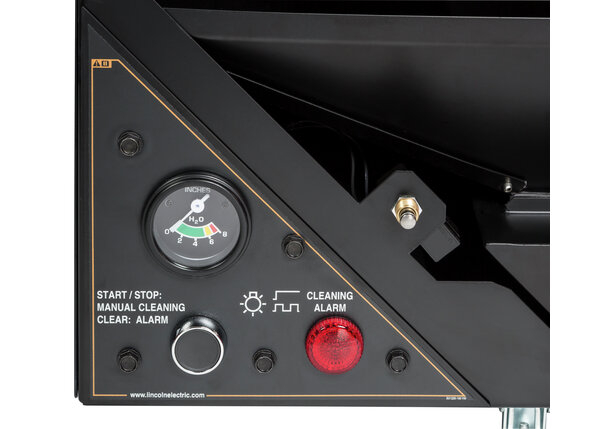

  • Air pressure gauge indicates when filters need replaced

Disclaimers

Warning -

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

Service Information

What's Included

Documentation

You May Also Need

Starter Overload Switch SF4200 Stationary Fan (230V)

Starter Overload Switch for 230V Prism® 4200 2 HP Fan

K1494-10
SF2400 Starter Overload Fan Switch

Starter Overload Switch for 115V Prism® 2400 1-HP Fan

K1494-2
SF2400 Starter Overload Fan Switch

Starter Overload Switch for 230V Prism® 2400 1 HP Fan

K1494-3
SF 4200 Fume Extraction Fan

Prism® 4200 2HP Fan (230V)

K1656-4
LFA 2.0 Fume Extraction Arm with Statiflex 2400 Fan

Prism® Wall Mounting Bracket for 10 and 13 FT 2400 1 HP Fan

K1657-1
Wall Mounting Bracket

Prism® 2400 1 HP Fan Wall Mounting Bracket for Flexible 7 FT, Telescopic 5 Ft, Flexible 13 FT low Ceiling Arms

K1657-2
Lamp Kit and Arc Sensor

Arc Sensor/Lamp Kit for 230V Prism® 4200 2 HP Fan

K1669-10
Lamp Kit and Arc Sensor

Arc Sensor/Lamp Kit for 115V Prism® 2400 1-HP Fan

K1669-4

Specifications

General

Product Type Statiflex 800
Style Wall Mount
Arm Type Base Unit Single Arm
Filter Type (MERV Rating) MERV 16
High Vac or Low Vac Low Vac

Product Weights & Dimensions

Dimensions (H x W x D) 38 in x 34 in x 36 in (970 mm x 860 mm x 910 mm)
Net Weight

Application

Typical Application Automotive
General Fabrication
Heavy Fabrication
Maintenance & Repair
Repair Welding
Robotics
Shipbuilding
Structural Fabrication

Warranty

Warranty 3 Years
